Product Details:
|
| Product Type: | Plastic Profile Machine | After-sales Service: | Engineers Availiable To Service |
|---|---|---|---|
| Voltage: | 380V 50HZ | Automatic Grade: | Fully Automatic |
| Raw Material: | PVC PP PE WPC | Certificate: | CE ISO9001 |
| Warranty: | 1 Year | Place Of Original: | Shandong, China |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||

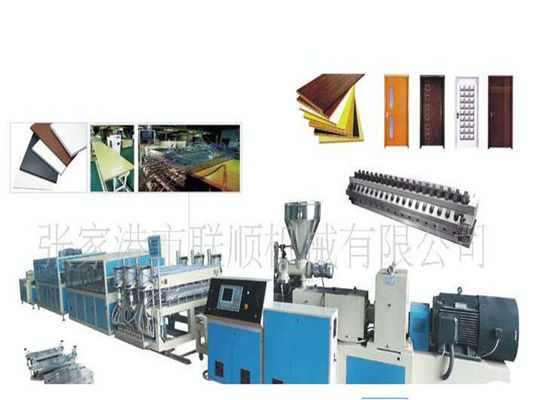

PVC WPC Window&Door Profile Making Machine , PVC PP PE Plastic Profile and Plate Extrusion Line Process
Quick detail:
1. Product Description
It's used to produce PVC profiles with different shape and size for PVC window, door etc, such as casement series PVC profile, sliding series PVC profile.
2. Production flow of PVC window door profile:
Material mixing, extruding, molding, vacuum calibrating and cooling, hauling, cutting- final PVC profiles
3. The main machines needed for PVC profile:
-Mixer

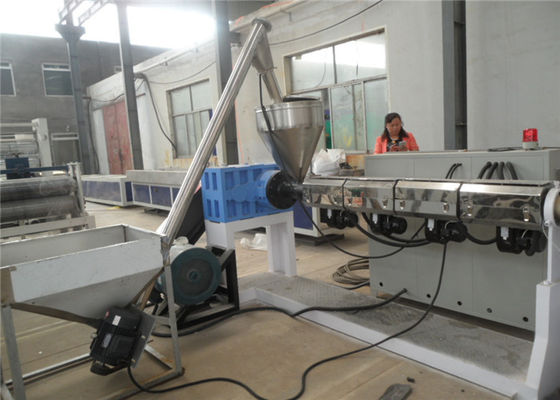

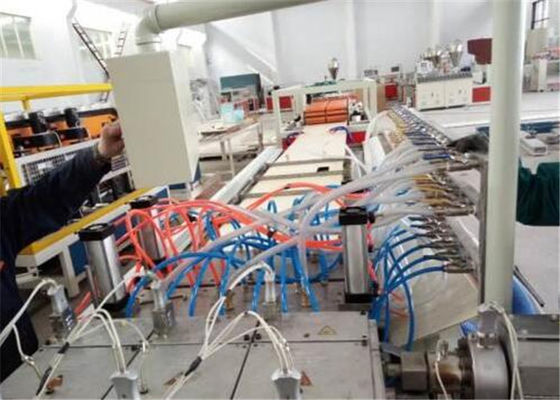

-PVC profile extrusion line (Including autoloader, conical twin screw extruder, mould, vacuum calibration platform, hauling machine, auto cutter- stacker)
- Lamination machine (wrapping machine)
- PVC crusher& PVC miller
- Air compressor
- Water chiller (optional).
Specification of pvc wpc Profile Machine:
1. For PVC window profile, equipped with correspondent co-extruder, the rubber seal or the surface color can be co-extruded on line. From the material feeding until the stacking, it is fully automatic, which also pursues the characteristics of good plasticization, low power consumption and cost effective.
2. Applications:
PVC profiles are mainly used in WPC floor, WPC auxiliary profile for the door and small profiles for decoration.
3. The main extruder adopts specialdesigned screw, barrel,mould.Equipped with the auxiliary
machineries, it could produce the PP PE PVC Wood-Plastic products. It's a new environment protecting product, which combines the wood powder and plastic powder at a certain percent.
Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 |
| Max.width of board(mm) | 180 | 240 | 300 | 600 | 900 |
| Extruder Model | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 | |
| Mian motor power(KW) | 22 | 37 | 55 | 110 | |
| Drawing height(mm) | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 20 | 20 | 20 | 30 | 40 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 |
| Cooling water consume(m 3 /h) | 6 | 6 | 6 | 9 | 12 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Our company advantages:
1. CE ISO9001 Certificate
2. We have more than 15 years experience
3. We are factory, and welcome to customer to visit our factory
4. Good pre-sales and after-sales service
5. The customer can send the engineer to our company with training
6. Our engineer can be to the Buyer's company for installation and testing the lines.
7. The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
