Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65/132 |
|---|---|---|---|
| Condition: | New | Certificate: | CE ISO9001 |
| Screw Number: | Two | Payment Terms: | TT Or L/C |
| Temperature Controller: | Omron | Motor: | Siemens |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||
Plastic Profile Extrusion Line , PVC Window Ceiling Panel Decking Profile Production Line Profile Making Machine
Quick detail:
1. PVC Profile has such characteristics as sound separation, sound absorption, heat separation, temperature-keeping,etc. The material is incombustible, it is safe for use.
2. All series of products have property of moisture proof, mildew proof, water resistance, its vibration resistant effect if good. All series of products have property of weathering proof, its luster may remain forever, it is not easy to be ageing.
3. This product is light, storage & transport, construction are rather convenient. This product can be worked with normal tools for wooden material. Drilling, sawing, nail, planing, bonding can be conducted like wooden material. It is suitable for thermal shaping, thermal bending and fold processing. It can be welded, it can also be bonded with other PVC material. The surface of this product is smooth, it can be printed.(Clean the surface before printing.)
Specification of pvc wpc Profile Machine:
1. The application of PVC window profile production line:

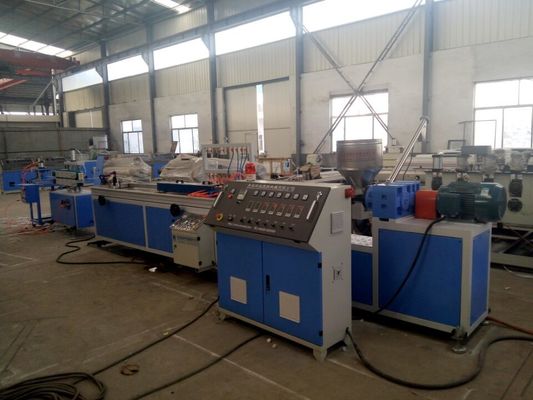

Raw material → mixing → feeder → double screw extruder → vacuum calibration table → haul-off unit → cutting machine → stacker
Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 |
| Max.width of board(mm) | 180 | 240 | 300 | 600 | 900 |
| Extruder Model | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 | |
| Mian motor power(KW) | 22 | 37 | 55 | 110 | |
| Drawing height(mm) | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 20 | 20 | 20 | 30 | 40 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 |
| Cooling water consume(m 3 /h) | 6 | 6 | 6 | 9 | 12 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Our company advantages:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
