Product Details:
|
| Brand Name: | Aorui | Certification: | CE ISO9001 |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service: | Engineers Availiable To Service |
| Voltage: | 380V 50HZ | Output Capacity: | 200-500kg Per Hour |
| Produc Type: | Construction Board | Original: | Shandong, China |
| High Light: | wpc pvc foam board machine,wpc board production line |
||

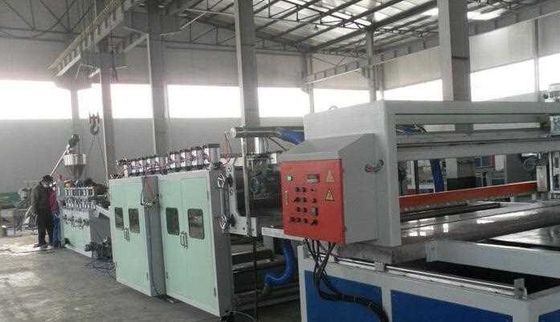

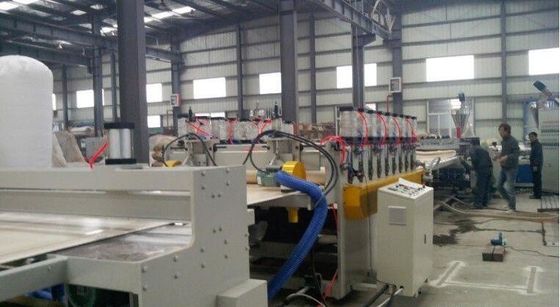

PVC WPC Crust Foam Board Extrusion Machine / WPC Foamed Construction Template Production Line , Board Extruder
Quick detail:

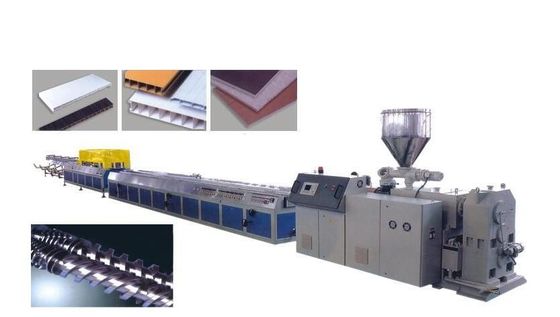

1. WPC PVC skining foaming board extrusion line is composed of conical twin-screw extruder, die, vacuum calibration unit, ten hall-off unit and so on, our company can provide the formula and all the processing techniques.
2. This machine has the features of high output, stable extrusion, high foaming, smooth and wearable surface. By equipping with the printing machine, laminating machine or hot stamping machine, this machine can produce different kinds of artificial wood products, so that this machine has a very wide application range.
Description:
1. Our PVC formwork can completely replace the traditional steel formwork, wood formwork and square timber; it is of low cost and can be reused over 30 times, and can be recycled. PVCFPJP Plastic Formwork can adapt to different temperatures, it can be sawed, drilled, punched,planed,very convenient to use, The surface smoothness and flatness have surpassed the existing technic of other concrete formworks.
2. wpc pvc foam board for construction and furniture extrusion line,
wpc pvc skinning foam board machine line,
wpc pvc celuka skinning foam board extrusion machine,
wpc pvc 3-layers co-extrusion foam sheet production line
3. WPC construction templates have advantages compare with the traditional building templates
Specifications:
|
Model
|
SJSZ-51
|
SJSZ-55
|
SJSZ-65
|
SJSZ-80
|
SJSZ-92
|
|
Screw dia.(mm)
|
51/105
|
55/110
|
65/132
|
80/156
|
92/188
|
|
Max speed(rmp)
|
40
|
38
|
38
|
37
|
36
|
|
Main motor(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
Capacity(kg/h)
|
80~100
|
100~150
|
150~250
|
250~380
|
380~700
|
|
Center height(mm)
|
1050
|
1050
|
1050
|
1050
|
1100
|
|
Net weight(kg)
|
3000
|
3500
|
4000
|
5500
|
8000
|
|
L*W*H(m)
|
3.6x1.1x2.1
|
3.6x1.1x2.1
|
4.2x1.5x2.4
|
4.7x1.5x2.4
|
6x1.6x2.5
|
Competitive Advantage:
