Product Details:
|
| Model Number: | SJ65/33 | After-sales Service: | Engineers Availiable To Service |
|---|---|---|---|
| Screw Number: | One | Condition: | New |
| Automatic Grade: | Fully Automatic | Original: | Shandong , China |
| Warranty Time: | 1 Year | Application: | Corrugated Pipe |
| High Light: | plastic extruder machine,plastic production line |
||

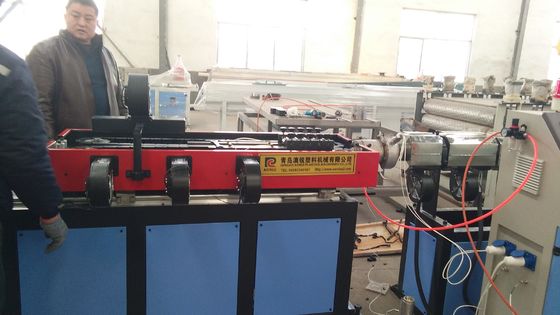

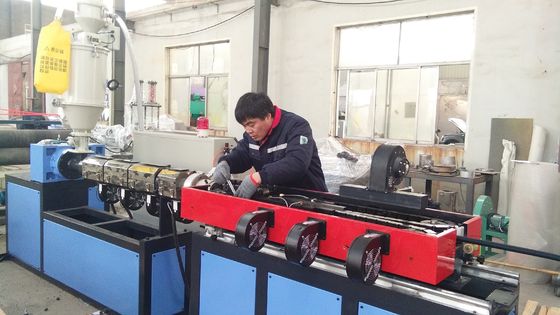

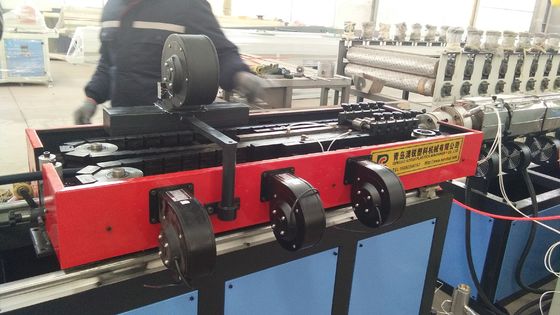

PP PE Single Wall Corrugated Conduit Pipe Extrusion Line / PE Plastic Corrugated Pipe Production Process
Quick detail
1. PA/PE/PP/PVC single wall, double wall corrugated pipe production line
Application: the equipment for the production of pipes, high temperature resistant, corrosion resistant, abrasion resistance, high strength. For electric threading pipe, auto threading pipe, protective sleeve, machine tools, packaging and food machinery, electric locomotive, engineering installation, lamps and lanterns, automation instrumentation and other fields, market demand.
2. The System configuration of PVC pipe extrusion machine :
(a) Feeding machine
(b) Conical Single-screw extruder
(c) Mould
(d) Vacuum Calibrating tank
(e) Hauling off machine
(f) Printing machine
(g) Pipe cutting machine
(h) Pipe pile-up frame
(i) Auxiliary machine such as feeding, belling and crushing machine.
Description:
1. characteristics of pe corrugated pipe machine:
1) Installed with imported termo controllers, imported inverters or converters.
2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3) For the material feeding section of barrel there’re slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5) We also can provide a variety of exhaust-type extruder
2. PE single wall corrugated pipe making line (PP, PVC share) specially designed for PE single wall corrugated pipes making.
Pipe Diameter range: 8mm,12mm,16mm, 20mm, 25mm, 32mm. single wall corrugated Pipe Outlets.
3. Process flow:
Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder
Specifications
| Type | Pipe Diameter (mm) |
PVC Output (kg/h) |
PE/PP Output (kg/h) |
MAX Speed (m/min) |
Total Power (KW) |
| WR-160 | 90-160 | 150-250 | 200-300 | 6.0 | 9.7 |
| WR-250 | 110-250 | 250-350 | 250-350 | 5.0 | 8.6 |
| WR-500 | 200-400 | 650-750 | 250-500 | 3.0 | 16.9 |
| WR-800 | 500-800 | --- | 1000-1100 | 3.0 | 16.9 |
| WR-1200 | 800-1200 | --- | 1000-1200 | 1.0 | 30.0 |
Why choode us:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
