20mm PP PE PVC Single Wall Corrugated Pipe Plastic Extrusion Line Fully Automatic

China 20mm PP PE PVC Single Wall Corrugated Pipe 	Plastic Extrusion Line Fully Automatic supplier
20mm PP PE PVC Single Wall Corrugated Pipe 	Plastic Extrusion Line Fully Automatic supplier 20mm PP PE PVC Single Wall Corrugated Pipe 	Plastic Extrusion Line Fully Automatic supplier 20mm PP PE PVC Single Wall Corrugated Pipe 	Plastic Extrusion Line Fully Automatic supplier 20mm PP PE PVC Single Wall Corrugated Pipe 	Plastic Extrusion Line Fully Automatic supplier

Large Image :  20mm PP PE PVC Single Wall Corrugated Pipe Plastic Extrusion Line Fully Automatic

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Delivery Time: 30 Days Screw&Barrel Material: 38Cr MOAIA
Pipe Material: PP PE PVC Voltage: 380V 50HZ
Place Of Original: Shandong , China Port: Qingdao
Motor: Siemens Automatic Grade: Fully Automatic

20mm PP PE PVC Single Wall Corrugated Pipe Production Line , PE Plastic Corrugated Pipe Extrusion Line





Quick detail



1. Plastic single-wall corrugated pipes produced by this single wall corrugated pipe machine have many features such as high intensity, good flexibility, high temperature resistance, resistant to corrosion and abrasion, etc. They has large market which are widely used in the fields of auto wire, electric thread-passing pipes, protective pipes of lamps and lanterns wire, circuit of machine tool, tubes of air conditioner and washing machine and so on.



2. Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe, washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.









Description:

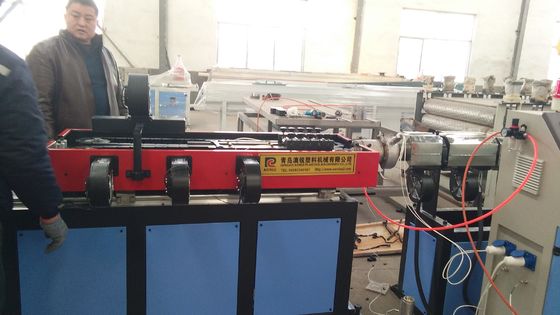

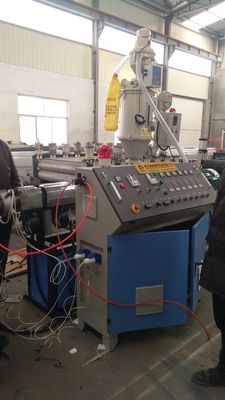

1. PE/PP Single Wall corrugated pipe extruding line consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.



2. Features of PE/PP Single Wall Corrugated Pipe Production Line:
1) Adopt Electric-magnetic heater which can save 40% to 60% electric energy.
2) All electric parts (breaker/relay/ inverter) are SIEMENS/SCHNEIDER/OMRON
3) PLC control and simple operation

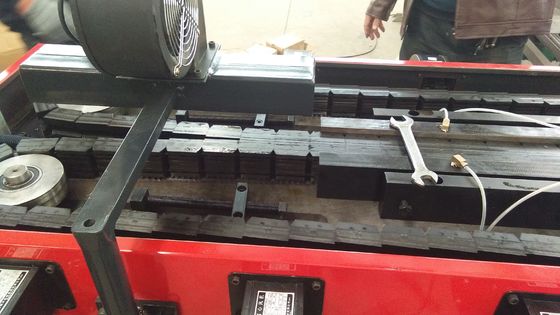

4) the forming machine has 38 pairs to 72 pairs forming block.
5) Production speed is 15m/min to 25m/min.







Specifications


Type Pipe Diameter
(mm)
PVC Output
(kg/h)
PE/PP Output
(kg/h)
MAX Speed
(m/min)
Total Power
(KW)
WR-160 90-160 150-250 200-300 6.0 9.7
WR-250 110-250 250-350 250-350 5.0 8.6
WR-500 200-400 650-750 250-500 3.0 16.9
WR-800 500-800 --- 1000-1100 3.0 16.9
WR-1200 800-1200 --- 1000-1200 1.0 30.0







Our company competitive advantages:



1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life

3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
