Product Details:
Payment & Shipping Terms:
|
Place Of Original: | Shandong , China | Voltage: | 380V 50HZ |
---|---|---|---|
Port Of Original: | Shandong , China | Type Of Extruder: | Twin Screw Extruder |
Brand Name: | Aorui | Automatic Grade: | Fully Automatic |
Warranty Time: | 1 Year | Certificate: | CE ISO9001 |
PVC Water Supply Pipe Extrusion Line , PVC Sewage Plastic Pipe Production Line , pvc Plastic Pipe Extruder
Quick detail:
1. The production line is our new product designed and developed by ourselves on the basis of bringing in foreign advanced technology and according to practical home situation. PVC rigid pipe/foam-core pipe has the features of strong rigidity, light weight, convenient construction and so on. It is widely used in the project fields of building, drainage and supply water, cable and so on.
2. Shandong Qingdao Aorui Machinery Co., Ltd. specializes in producing high quality plastic machinery. We are one of the top manufacturers of plastic machinery in China and our main products include plastic foam, pipes, blow molding and injection molding machines.we are looking forward to creating long term relationships with you.
Description:
1. Product Features:
Full automatic widing machine, chipless cutting machine, forced feeding system, high stability,
high yield screw and mold.
Raw material: PVC resin+ other ingredients
Final Products: PVC water/sewage pipe
Pipe Diameter: 16-630mm
2. GF Series plastic pipe production line is mainly used in the production of the plastic PVC pipes with various diameters and wall thickness in the applications of agricultural and constructional water supplying & draining, cable laying etc.
3. Equipment List:

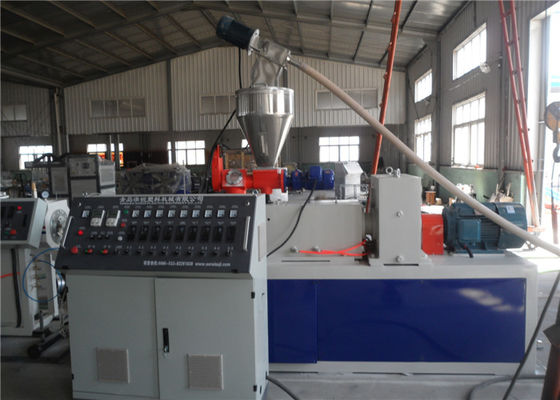

1) Twin Screw Extruder
2) Mould
3) Vacuum Shaping Tank
4) Cooling Water Tank
5) Haul-off Machine
6) Cutting Machine
7) Stacker

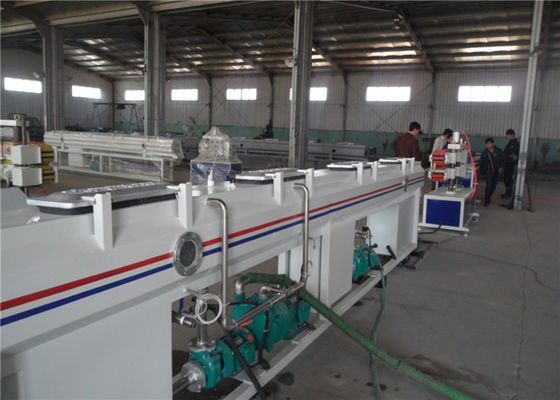

Production Line Strucure
Pipe range | 20-63mm |
20-63mm |
75-160mm |
110-315mm |
315-630mm |
Extruder |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
Extruder power |
18.5kw |
37kw |
37kw |
55kw |
110kw |
Extrusion capacity |
120kg/h |
200kg/h |
350kg/h |
500kg/h |
800kg/h |
Max. Production speed |
12m/min |
10m/min |
6 m/min |
3 m/min |
1.2m/min |
Our competitive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
