PVC UPVC Water Supply Pipe Production Line , PVC Plastic Pipe Extrusion Machinery

China PVC UPVC Water Supply Pipe Production Line , PVC Plastic Pipe Extrusion Machinery supplier
PVC UPVC Water Supply Pipe Production Line , PVC Plastic Pipe Extrusion Machinery supplier PVC UPVC Water Supply Pipe Production Line , PVC Plastic Pipe Extrusion Machinery supplier PVC UPVC Water Supply Pipe Production Line , PVC Plastic Pipe Extrusion Machinery supplier PVC UPVC Water Supply Pipe Production Line , PVC Plastic Pipe Extrusion Machinery supplier

Large Image :  PVC UPVC Water Supply Pipe Production Line , PVC Plastic Pipe Extrusion Machinery

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Raw Material: PVC Condition: New
Brand Name: Aorui Voltage: 380V 50HZ
Warranty: 1 Year Port Of Shipment: Qingdao
Certificate: CE ISO9001 Delivery Time: 30 Days

PVC UPVC Water Supply Pipe Production Line , PVC Plastic Pipe Extrusion Machinery , PVC Pipe Making Machine







Quick detail:



Advantage of PVC pipe machine:



1.Advanced design of screws supply powerful safeguard for the PVC plasticization.

2.Unique inside oil controlling temperature system adapts different technology.

3.Beautiful and practical stainless steel body for vacuum calibration and cooling units, unique multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency;

4.Hauling off unit adopts particular pedrail structure, which is easy and convenient to operation; Pedrial clamping uses mechanical and pneumatic combining system, which is more reliable in performance

5.Cutting system adopts saw blades and planetary cutting means; Sumping used hydraulic system, which ensures the smooth cross section







Description:

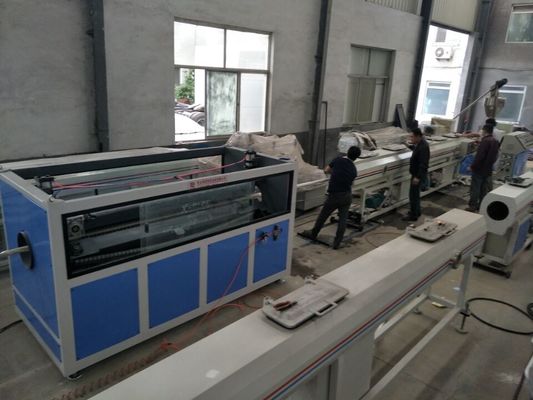

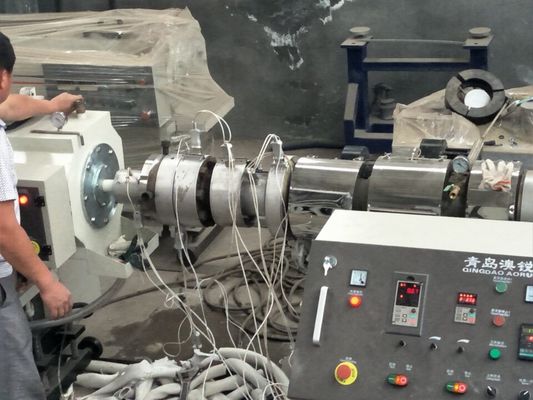

1. PVC(Φ50-Φ110mm)Pipe production line consists SJSZ65 / 132 extruder, extrusion die, vacuum calibration device, hauling off machine, circular cutting machine, belling machine.Products are made of PVC, the best production of the pipe diameter range is from Φ50 to Φ160mm.Its in Good quality, high performance, the host inventor, feed inventor are used ABB, temperature controller is Omron t.It is High degree of automation, simple operation.



2. Main features:



1)Accompanied by a corresponding mold we can produce PVC threading pipe,drain pipe, silencers drains pipe, communications pipe and other porous diameter and thick wall pipe.

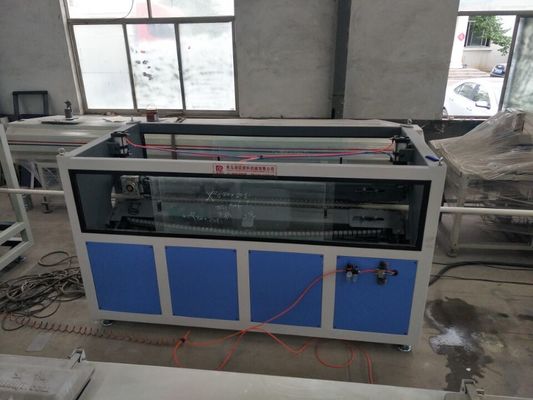

2)The material of vacuum calibration tank is stainless steel, divided into two sections, the water level is adjusted by stainless steel float, simple and practical structure.



3)It has automatic alarm device, easy maintenance, long service life.

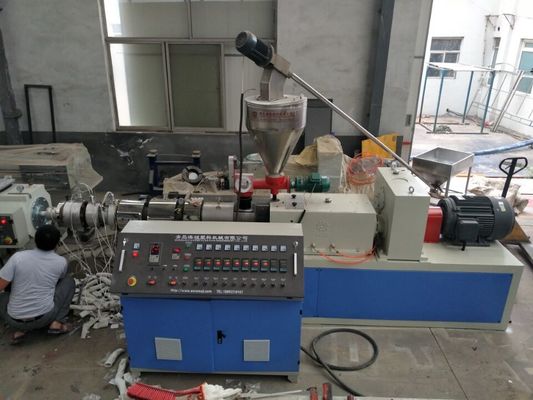

3. To produce PVC pipes, you shall have high speed mixer to mix PVC powder, CACO3 and other additives according to your formula. Then feed the dry blend material to the conical twin screw extruder for the pipe production. The already mixed material will be extruded through different pipe molds to produce different diameter pipes. Then it will be calibrated to keep the shape by vacuum calibration tank, then haul off and cutting. You could cut the pipes auotmatically in different length as you want, say 4 meter, 6 meter, etc.









Production Line Strucure



Pipe range
20-63mm

20-63mm

75-160mm

110-315mm

315-630mm

Extruder

SJZ51/105

SJZ65/132

SJZ80/156

SJZ80/156

SJZ92/188

Extruder power

18.5kw

37kw

37kw

55kw

110kw

Extrusion capacity

120kg/h

200kg/h

350kg/h

500kg/h

800kg/h

Max. Production speed

12m/min

10m/min

6 m/min

3 m/min

1.2m/min









Our competitive advantages:



  • 24 hours services;
  • Overseas installation;
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.
