Product Details:
|
| Model Number: | PET90 | Place Of Original: | Shandong , China |
|---|---|---|---|
| Specific: | CE ISO9001 | Automatic Grade: | Fully Automatic |
| Motor: | Siemens | Product Name: | PET Strap Band Machine |
| After-sales Service: | Engineers Availiable To Service | Screw Design: | Single Screw |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

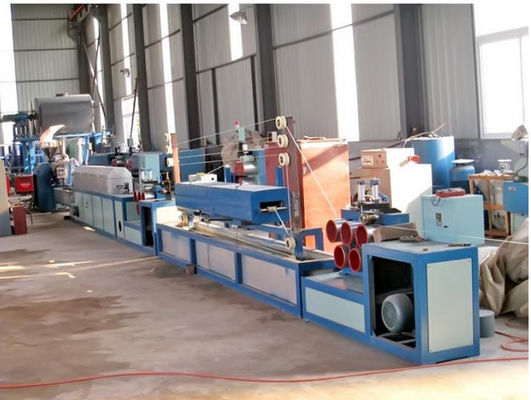

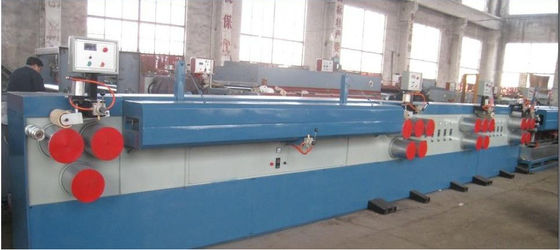

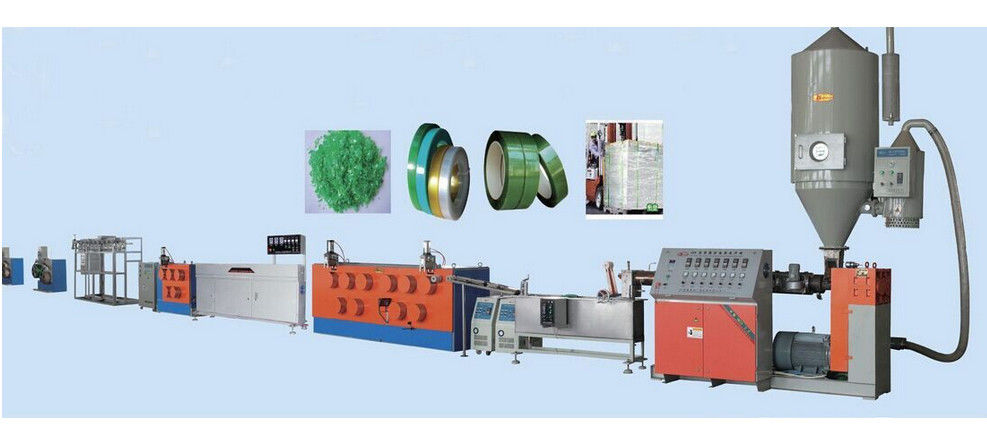

Plastic Strap Band Production Line / PET Plastic Strap Band Machinery / Single Screw Strap Band Extrusion Line
Quick detail:
Advantages of PP,PET strapping bands production line:
1. Apply to raw materials and recycled materials. Can produce both environmental protection advanced strap and recycled strap
2. The products with high tensile strength, no split, no crack, high market recognition
3. Good shape, even size, achieve automatic packing level.
4. Automatic constant temperature control device
5. Advanced technology, make the product cost is lower more than 10% than the same industry
6. Low noise, less consumption, high efficiency, long service life
Description:
1. Production conditions
a) Installed power: 380v/3P/50Hz(depending on the customer's requirement)
b) Raw material: PET materials
c) Output:50-100kg/h
Note:the output is different depends on operation and material.
2. Single screw or twin screw technique for option depending on the requirement. Even plasticization and stable extrusion with automatic control for the full line. The dosing pump ensures continuous and stable production. The filter of double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.100% recycled flakes can be used for production.New design dehumidifier.
3.
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
Technical and after-sales service:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
