PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ

Certification
China QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1 certification
Customer Reviews
The sales have good service, it brings me a good experience. We import 5 sets extruders from this company, the extruders have good quality and long service life. I'd like to cooperate with this company for long time.

—— Andrew

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

I'm Online Chat Now

PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ

PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ
PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ

Large Image :  PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: PET80
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

PET Plastic Strap Band Extrusion Machinery Fully Automatic 380V 50HZ

Description
Condition: New Automatic Grade: Fully Automatic
Product Type: PET Strap Band Production Line Trademark: Aorui
Certificate: CE ISO9001 Width: 6-32mm
Plastic Processed: PET PP Voltage: 380V 50HZ
High Light:

Strapping Band Making Machine

,

Strap Making Machine



PET Plastic Strap Band Extrusion Machinery , Plastic Packing Belt Strap Machine , Plastic Strapping Machine For Packing


Quick detail:



1. The machine is a professional plastic straps making machine. It works with PP, which is the best strapping materials to use for securing any type of load, no matter palletized or unitized.

PP strapping can be easily disposed of by rolling or bending. Also, it can be cut into small pieces and accumulated for recycling.



2. Product Feature

1). Work stable and reliable with one man operating the whole line. automatic loading, automatic filter exchanging , and automatic discharging

2). set and automatically control the heating temperature of screw cylinder and die head according to different technological requirements. The temperature can be adjusted according to different kinds of materials.

3). appearance consistent with the principles of ergonomics, reducing the labor intensity








Description:


1. This production line adopts advanced technology to produce with compact structure,easy operation,efficient automation.It is suitable to be used as PP,PET tape (strap band) production,which is in accordance with the SG243-81 criteria.

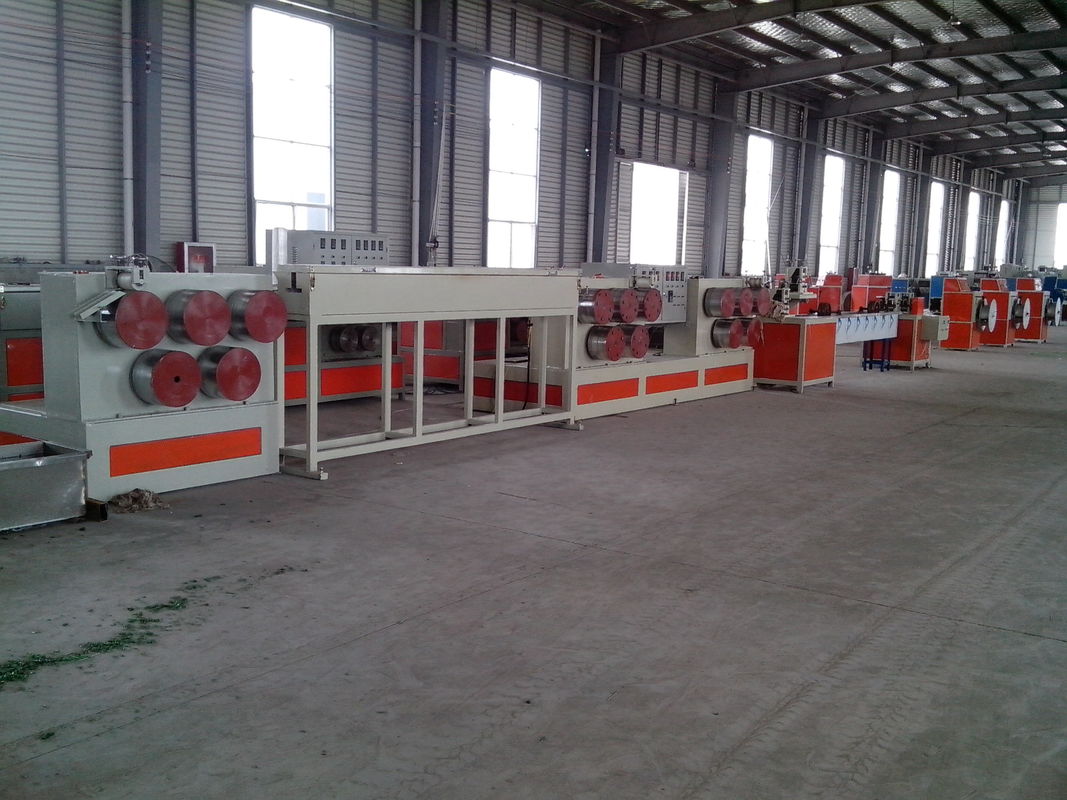

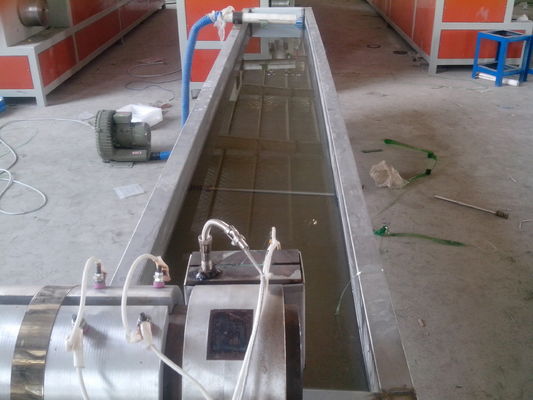

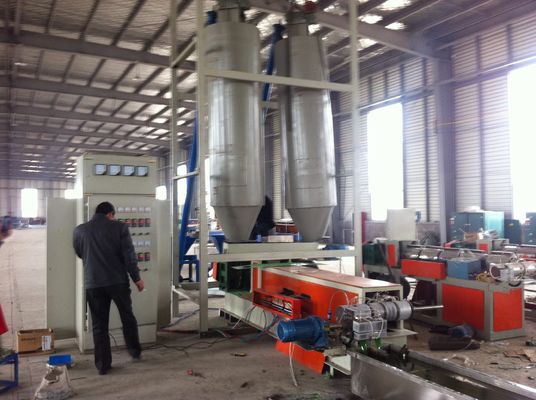

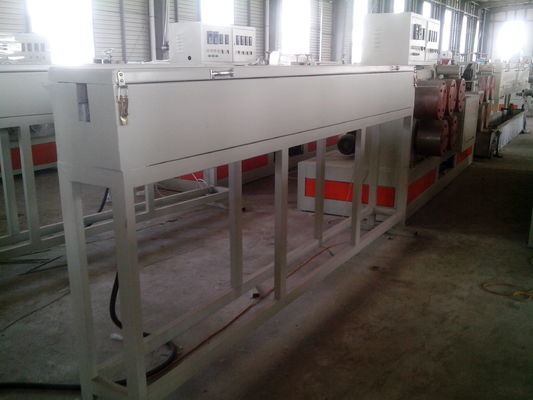

2. Main composed of extruder,mould,cooling tank,first traction machine,haul oven of heat wind,second traction machine,embossing machine,calibration trough,third traction machine,coiler,and PLC control system.



3. PET strapping machine,using the recycling bottle slices as raw materials by making them melt directly,which reduces the course of raw material-making.Low energy consumption, high production capability.Easy to operate ,save manpower.






Technological parameter:





Model SJ-65 SJ-75 SJ-90
Extruder SJ-65/30 SJ-75/33 SJ-90/33
Productivity 60-100kg/h 80-120kg/h 120-150kg/h
Drive Motor 22kw 30kw 55kw
Two-station Winder 60-120m/min,adjustable
Strap Size Width:5mm-20mm Width:10mm-25mm Width:20mm-35mm
Thickness:0.36mm-1.0mm Thickness:0.5mm-1.3mm Thickness:0.5mm-1.8mm
Installed Capacity about80kw about 90kw about110kw
Line Dimension 30m×2m×2.2m (L×W×H) 30m×3m×4.5m (L×W×H) 30m×5m×6m (L×W×




FAQ:
Q1:Are you a trading company or a manufactory? A1:We are a manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 1 years guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
