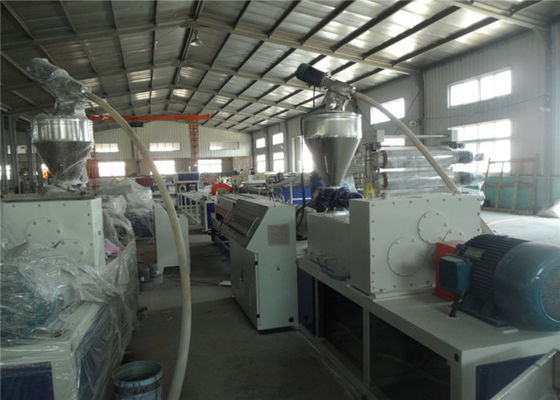

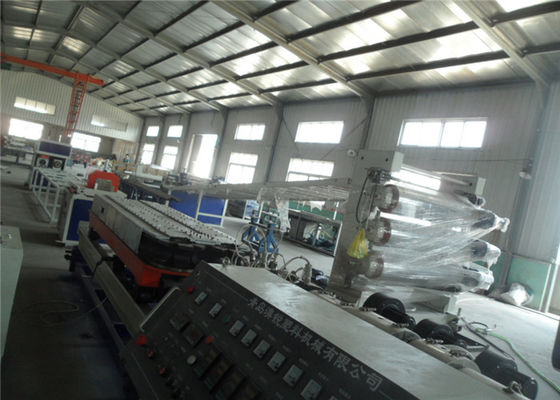

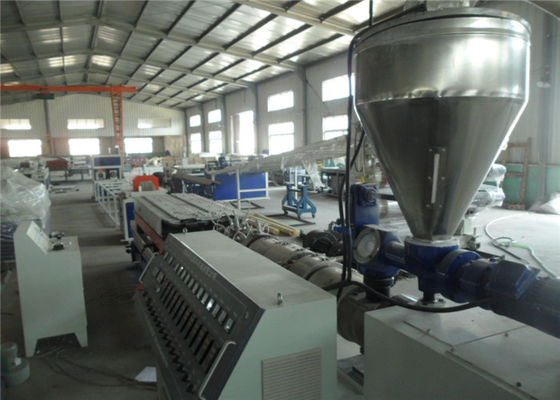

Fully Automatic Plastic Pipe Extrusion Line With PLC control System

China Fully Automatic Plastic Pipe Extrusion Line With PLC control System supplier
Fully Automatic Plastic Pipe Extrusion Line With PLC control System supplier Fully Automatic Plastic Pipe Extrusion Line With PLC control System supplier Fully Automatic Plastic Pipe Extrusion Line With PLC control System supplier Fully Automatic Plastic Pipe Extrusion Line With PLC control System supplier

Large Image :  Fully Automatic Plastic Pipe Extrusion Line With PLC control System

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Brand Name: Aorui Automatic Grade: Fully Automatic
Port Of Shipment: Qingdao Certificate: CE ISO9001
After-sales Service: Engineers Availiable To Service Voltage: 380V 50HZ
Application: PE Water Pipe Warranty: 1 Year

PE Double Wall Corrugated Pipe Production Line , PE PVC Double Wall Corrugated Pipe Making Machine







Quick detail:



1. PE HDPE PVC double wall corrugated pipe machinery instruction:



The machine adopt two high efficiency screw extruders to extruding the inner and outer layer,the special design spiral construction co-extrusion die head can make sure that the inner and outer layer thickness is uniform,it has the features of stable forming,high processing speed.The forming mould block adopt vaccum forming system,inner template circulate water cooling and oil lubrication system.



2. Process Flow of PE corrugated pipe production machine:

Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugated forming machine → meter measure → double winder → finished product inspecting&packing







Description:



1. Description of PE corrugated pipe production machine:



This plastic corrugated pipe line equips with high quality machines in the whole line.

With good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost.

.



2. The feaeure of the plastic corrugated pipe extrusion line:



1). Adopt to PLC control system it is more accurate more intellectualize control order makes the operation more simple.

2). The production line is the single screw extruder in high efficiency, has the independent water and air circular system and form the double wall corrugated pipe by cooling water and compress air.

3). Corrugated forming system with strong cooling ability operation more simple efficiency.

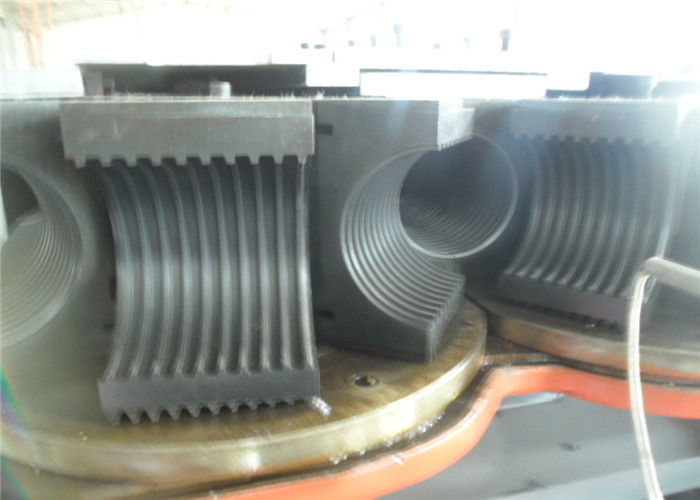

4). The mould surface is nitrided, has the adjust equipment to adjust the wall thickness, it suitable for different diameters pipes.

5). Extruder has air cooling and water cooling function.



Fully Automatic Plastic Pipe Extrusion Line With PLC control System







Production Line Strucure



Pipe range
20-63mm

20-63mm

75-160mm

110-315mm

315-630mm

Extruder

SJZ51/105

SJZ65/132

SJZ80/156

SJZ80/156

SJZ92/188

Extruder power

18.5kw

37kw

37kw

55kw

110kw

Extrusion capacity

120kg/h

200kg/h

350kg/h

500kg/h

800kg/h

Max. Production speed

12m/min

10m/min

6 m/min

3 m/min

1.2m/min









Our competitive advantages:



1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life

3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.

Fully Automatic Plastic Pipe Extrusion Line With PLC control System
