Product Details:
|
| Port Of Shipment: | Qingdao | Original: | Shandong , China |
|---|---|---|---|
| Condition: | New | Certificate: | CE ISO9001 |
| Type Of Extruder: | Twin Screw | Voltage: | 380V 50HZ |
| Screw&Barrel Material: | 38Cr MOAIA | Warranty: | 1 Year |
| High Light: | Foam Sheet Extruder,PVC Foam Board Production Line |
||
PVC WPC Foam Board Machine / PVC Free Foamed Sheet Board Decoration Sheet Production Line
Quick detail:

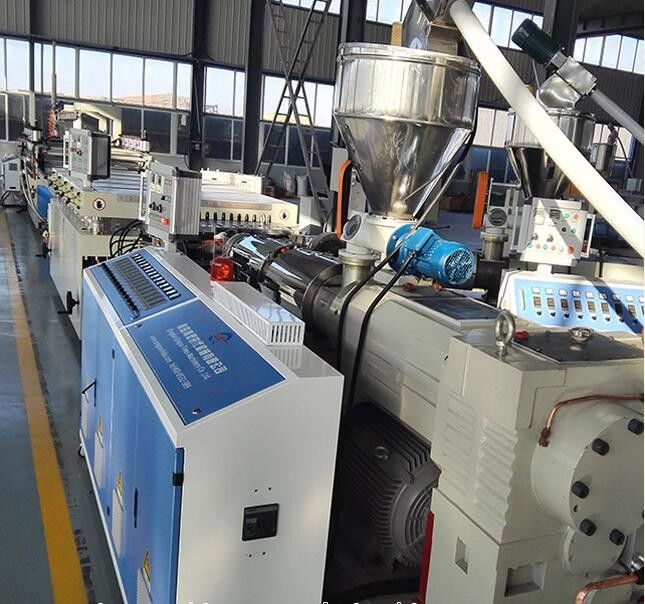

1. This machine adopts the SJSZ80/156 conical twin-screw extruder,,it also can be equipped with the SJSZ92/188 wood-plastic conical twin-screw extruder. The calibrating machine, traction machine and plate shearing machine are designed uniquely. The three rollers are mirror surface grinding and driven independently.
2. The machine is equipped with the edge-cutting device for the waste material and the water tank to control the constant temperature of the three rollers. The wood-plastic plate: product width 1000-2000mm, product thickness 2-107mm.(can be customized)
Description:
1. Aorui foam board/sheet extrusion line adopted the latest foam technology, which can produce varies kind of PVC/WPC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board and it achieves excellent surface hardness, rigidity and toughness and more scratch-resistance.
2. This kind of furniture foam board has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids. PVC foam board can be nearly 100% recycled and reused. Besides, PVC foam board can be worked like wood with the
tools for wood. It's suitable for sawing, cutting, nailing, screwing, planning and sticking. It's the perfect substitute for furniture, decoration, advertisement and so on applications.
Specifications:
| Model | GYF600 | GYF800 | GYF1000 | GYF1250 |
| Max.width of product(mm) | 600 | 800 | 1000 | 1250 |
| Extruder model | GSZ65/132 | GSZ80/156 | GSZ92/188 | GSZ92/188 |
| Max.extrusion capacity(kg/h) | 250 | 350 | 450 | 550 |
| Extruder power(kw) | 37 | 55 | 110 | 132 |
| Cooling water(m3/h) | 12 | 13 | 15 | 18 |
| Compressed air(m3/min) | 0.5 | 0.6 | 0.8 | 1 |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
