Product Details:
|
Raw Material: | PP PE | Pipe Color: | According To Customer's Requirement |
---|---|---|---|
Voltage: | 380V 50HZ | Application: | Pipe |
After-sales Service: | Engineers Availiable To Service | Weight: | 5-10T |
Warranty Time: | 1 Year | Automatic Grade: | Fully Automatic |
High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |

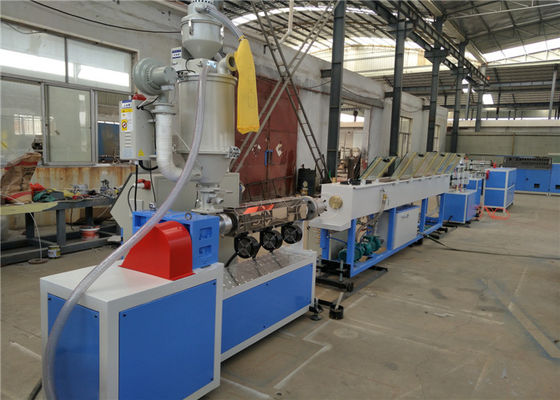

PE PPR PERT Cool and Hot Water Pipe Production Line / Hot Water Pipe Extrusion Line / Plastic Pipe Making Machine
Quick detail:
1. Production Set PP-R &PE-RT, a complete line for cold/hot water pipes manufacture, is mainly used to produce industrial pipes for water and compressed air transportation. The pipes diameter and thickness can be varied. PP-R is an updated achievement in the developmenthistory of worldwide pipelines production.
2. It's designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank. 2ND single screww extruder for melting glue material, spiral forming unit, cutting and stack unit.
Description:
1. This production line is developed by company on the basis of absorbing the international advanced technology, the important parts of screw and die head are specially designed according to the properties of PP-R material.
2. The electrical control uses frequency control, all the main electric parts are imported famous brand products; the total production line has the advantages of high output, stable quality, small deviation of the products, etc. therefore, it is the first-rate equipment in the plastic machinery industry. Meanwhile, this production line is suitable to produce the PP-C, PE-X cross-link pipe and the polyolefin pipes. Our company will offer formula, crafts and turn-key project.
3. Pipes produced by this line have high stiffness, high brunt intensity, and low weight due to it's unique structure. In addition, it has many advantages such as good creep deformation resistance, outer pressure resistance, erosion resistance(such as acid, alkali and salt etc), long life of approximate 50 years. It has been widely used for sewerage and drainage in municipal, it will replace the cement pipe, cast iron pipe and other pipes. It's low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potetial.
Production Line Strucure
Model number
|
PPR-16/63
|
PPR-20/110
|
PPR-50/160
|
Pipe diameter
|
16-63mm
|
20-110mm
|
50-160mm
|
Max output
|
150kg/h
|
150kg/h
|
250kg/h
|
Production rate
|
5-15m/min
|
2-12m/min
|
2-10m/min
|
Extruder model
|
SJ-65/33
|
SJ-65/33
|
SJ-75/33
|
Installed power
|
100kw
|
110kw
|
150kw
|
Center height
|
1000mm
|
1000mm
|
1000mm
|
Installation area
|
35*3.0*2.0m
|
38*3.1*2.2m
|
38*3.2*2.2m
|
Our competitive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
