380V 50HZ Plastic Pipe Extrusion Line , Double Screw PVC Pipe Production Line

China 380V 50HZ Plastic Pipe Extrusion Line ,  Double Screw PVC Pipe Production Line supplier
380V 50HZ Plastic Pipe Extrusion Line ,  Double Screw PVC Pipe Production Line supplier 380V 50HZ Plastic Pipe Extrusion Line ,  Double Screw PVC Pipe Production Line supplier 380V 50HZ Plastic Pipe Extrusion Line ,  Double Screw PVC Pipe Production Line supplier 380V 50HZ Plastic Pipe Extrusion Line ,  Double Screw PVC Pipe Production Line supplier

Large Image :  380V 50HZ Plastic Pipe Extrusion Line , Double Screw PVC Pipe Production Line

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ 51/105

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Brand Name: Aorui Screw Number: Two
Warranty Time: 1 Year Voltage: 380V 50HZ
Application: PVC Twin Pipe Motor: Siemens
Frequency Control: ABB Port: Qingdao

Plastic PVC Pipe Extrusion Line , PVC Double Screw Pipe Extruder Process , 20-63mm PVC Twin Pipe Production Line





Quick detail:

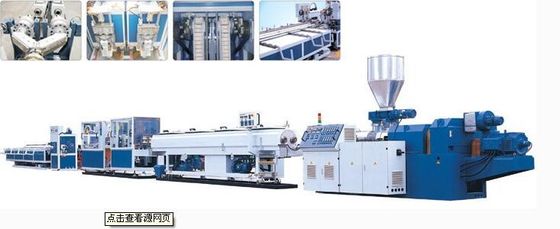

   GPM series PVC double cavity Pipe extrusion Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes. The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing







Description:

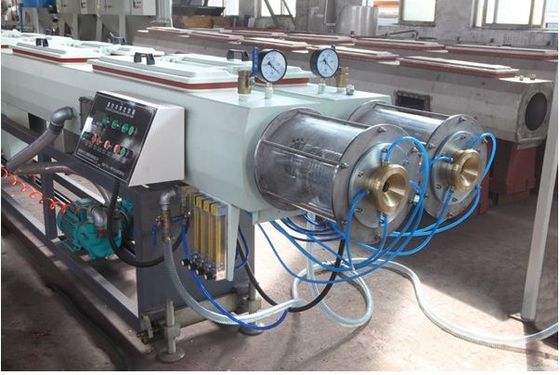

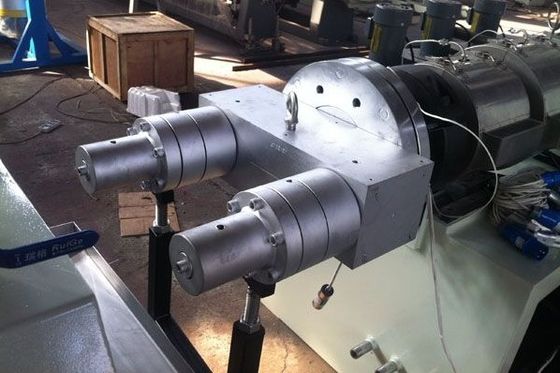

1. PVC Double Pipe Extrusion Line is developed with the 1990s advanced technology of West Europe by our company. The main machine is SJSZ 51/105 or SJSZ 65/132 conical twin-screw extruder, is equiped with double tube single-control stainless steel spraying shaper to form a production line. It avoids a waste condition when one tubes is adjusts and the other one is effected. The auto single-control souble haul offs and cutting are combined with the front shaping technology to make operation more flexible.



2. Main Features of double cavity pvc pipe extrusion line:



1. Excellent in chemical corrosion, no rust;

2. With self extinguishing and flame retardant;


3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;

4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;

5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;

6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;

7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.









Production Line Strucure



Extruder Model SJSZ51/105 SJSZ51/105 SJSZ65/132 SJSZ65/132 SJSZ80/156 SJSZ92/188
PVC Pipe.Diameter (mm) 16-40 PVC Dual Pipe 16-63 16-63 PVC Dual pipe 75-160 200-315 630
Motor power (kw) 18.5 18.5 37 37 55 90
Drawing machine (m/min) 0.5-10 0.5-10 0.5-8 0.5-8 0.5-6 0.5-4
Total Length 20 20 25 25 28 32
Output (kg/h) 80-120 80-120 180-250 180-250 280-350 500-600







Our company competitive advantages:



experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
