Fully Automatic PP PE Twin Pipe Making Machine / PVC Pipe Extrusion Line

Fully Automatic PP PE Twin Pipe Making Machine / PVC Pipe Extrusion Line
Fully Automatic PP PE Twin Pipe Making Machine / PVC Pipe Extrusion Line Fully Automatic PP PE Twin Pipe Making Machine / PVC Pipe Extrusion Line Fully Automatic PP PE Twin Pipe Making Machine / PVC Pipe Extrusion Line

Large Image :  Fully Automatic PP PE Twin Pipe Making Machine / PVC Pipe Extrusion Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ 51/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

Fully Automatic PP PE Twin Pipe Making Machine / PVC Pipe Extrusion Line

Description
Certificate: CE ISO9001 Temperature Controller: Omron
Payment Terms: TT Or L/C Frequency Control: ABB
Motor: Siemens Automatic Grade: Fully Automatic
Raw Material: PVC Model Number: SJSZ51/105
High Light:

plastic pipe extruder machine

,

plastic pipe production line



PVC PP PE Twin Pipe Making Machine / PVC Pipe Extrusion Line / Twin Pipe Production Line Extrusion Process





Quick detail:



 1. This production line isdeveloped by our company combined with European advanced technology in the late 90s. This main extruder is SJSZ51/105 or SJSZ65/132 conical twin screw extruder epuipped with double-tube single-control stainless steel spraying calibration.



2.  It avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cutting machine are combined with the front double calibration technology to make operation more flexible . Let you enjoy economic benefit which is brought by separate-control double -tube extruding.







Description:

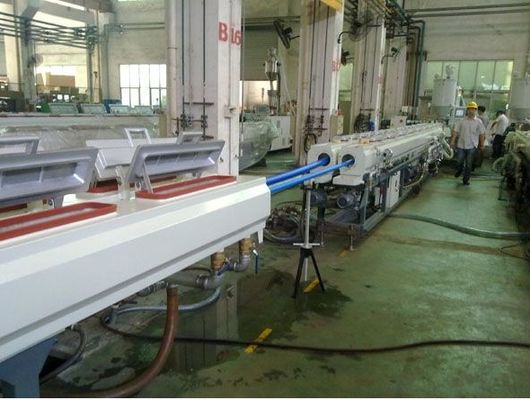

1. PVC double pipe production line is developed for high output of double pipe extrusion.

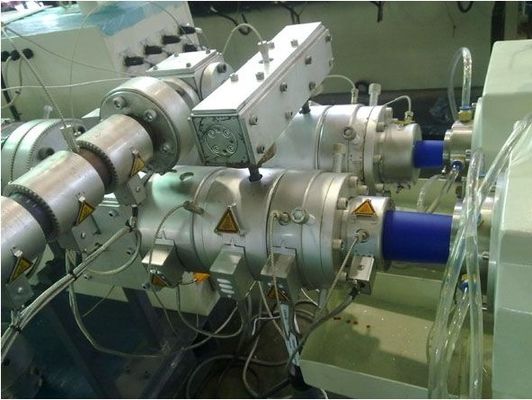

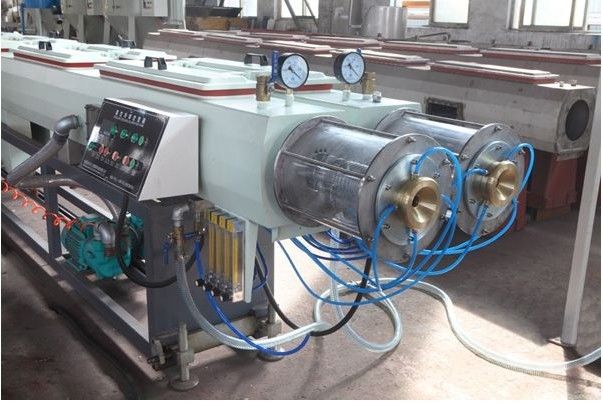

The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with double-tube single-control stainless steel spraying shaper to form a production line. It avoids a waste condition when one tube is adjusted and the other one is affected.



2. The auto single-control double drawing machine and cutting are combined with the front shaping technology to make operation more flexible.



3. The diameter of the extruded pipe is from 20-63mm. It can fully use the extruding capacity of the extruder. Even if it producces small diameter pipe,it can get great output too.









Production Line Strucure



Extruder Model SJSZ51/105 SJSZ51/105 SJSZ65/132 SJSZ65/132 SJSZ80/156 SJSZ92/188
PVC Pipe.Diameter (mm) 16-40 PVC Dual Pipe 16-63 16-63 PVC Dual pipe 75-160 200-315 630
Motor power (kw) 18.5 18.5 37 37 55 90
Drawing machine (m/min) 0.5-10 0.5-10 0.5-8 0.5-8 0.5-6 0.5-4
Total Length 20 20 25 25 28 32
Output (kg/h) 80-120 80-120 180-250 180-250 280-350 500-600









Our company competitive advantages:



Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
