Product Details:
|
| Raw Material: | PET Flakes | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Product Type: | PET Strap Band Production Line | Trademark: | Aorui |
| Certificate: | CE ISO9001 | Width: | 6-32mm |
| Plastic Processed: | PET PP | Voltage: | 380V 50HZ |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||
Plastic PET Strapping Band Machine, PET Strap Band Making Machine , PET Strap Band Production Line
Quick detail:
1. PET which has the advantage of good rigidity, heat-resistance, no rust and its specific gravity is 1/5 of steel specific gravity, is mainly used for packing.
2. Features of PET are high tensile strength, good extensibility, impact resistance, not easily broken, cheap price, and flexible, convenient operation, safe and reliable. It is ideal substitute for steel internationally, which is widely used for papermaking, Wood, textile, cotton and fiber, non-ferrous metal, canned products, chemical products, metallurgy, Power cable, aluminum and plastic profile, machinery and electronic products, and all kind of goods pallets strapping.
Description:

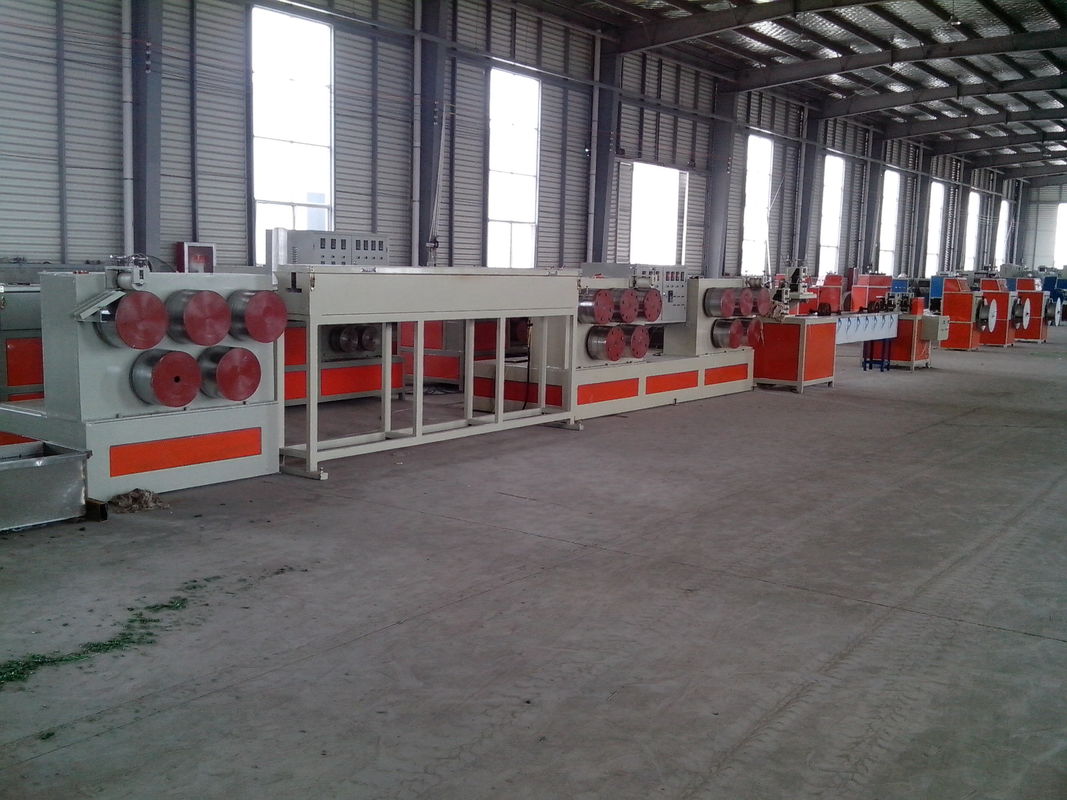

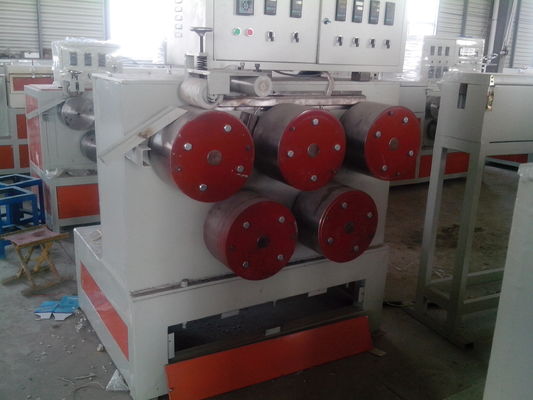

1. PET strapping making machine is composed of forced extruder (main machine), cooling tank,1st stretching unit,wind heat stretching oven,2ND stretching unit,character printer, embossing machine, light-heat shaping oven, water tank for shaping, 3rd stretching unit and light weight curler.The standard installation shall be in line and in order, and the technological process of the machine as shown in following figure.

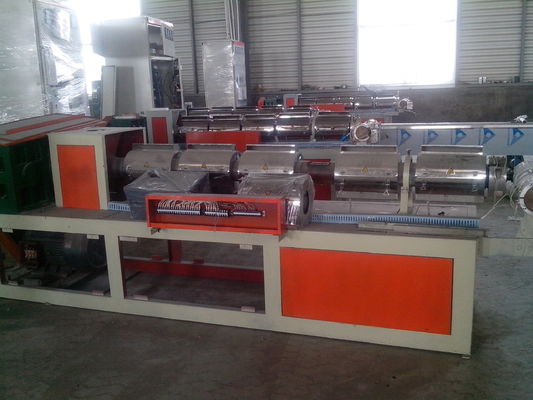

2. The main machine drive consists of frequency control motor and special hard tooth-surface reducer for plastic extruding machine. Forming part is composed of screw feed barrel, frame head and die. The raw material is heated from hopper to screw feed barrel, and the rough block is extruded.
3. We provide one-year warranty guarantee for all the machines. We supply long term spare parts for every customer and 24 hours technical suport by email, calling and door to door service;
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
FAQ:
Q1:Are you a trading company or a manufactory? A1:We are a manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 1 years guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
