Product Details:
|
| Certtificate: | CE ISO9001 | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Voltage: | 380V 50HZ | Raw Material: | PET PP Flakes |
| Screw Design: | Single Screw | Port Of Shipment: | Qingdao |
| Application: | Strap Band | Width Of Strap Band: | 5-19mm |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

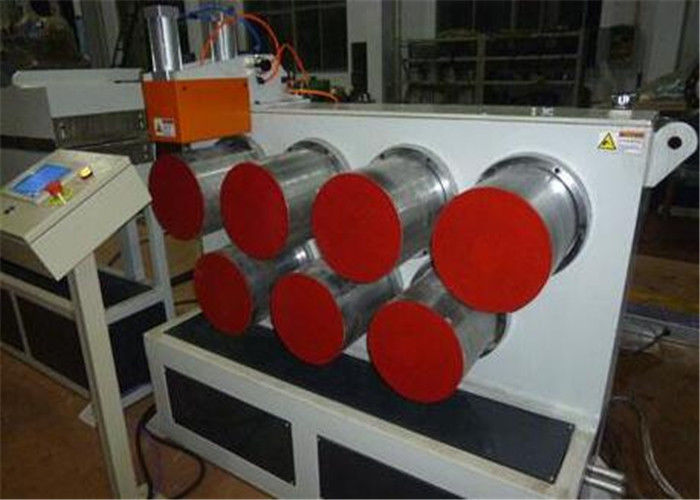

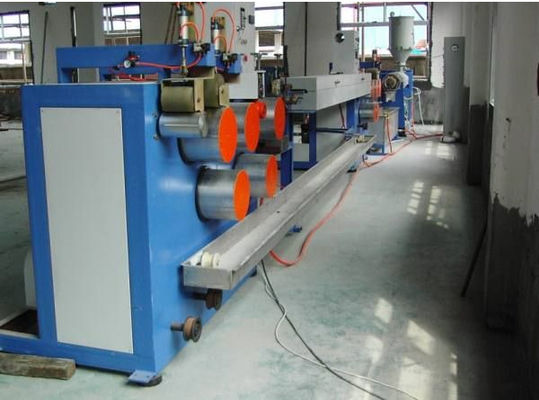

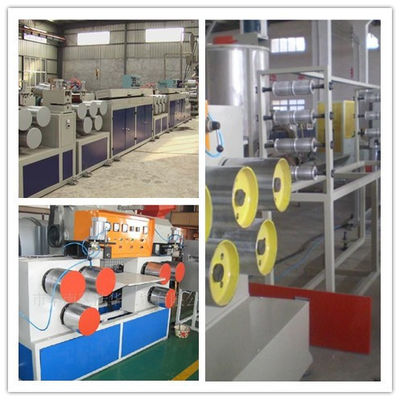

Good Price PET Strap Band Machine , PET Packing Belt , Drawbench Production Line
Quick detail:
1. Single screw or two screw technique for option depending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line.
2. The dosing pump ensures continuous and stable production. The filter of double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.
Description:
1. Trustworthy For Sale pet strap band plastic packing strip making machine is used to produce mechanical or manual bands with 100% recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
2. PET packing strap band extrusion line machine ,based on recycled PET bottle flake as the main raw materials,can produce many specifications,multi-purpose,high performance package strap.
3. Machine Advantages
1. The whole line arrangement is reasonable, easy to operate .
2. The whole production line adjusted by frequency converter, to save energy .
3. PC special screw design, high output, is quite smooth .
4. Unique material embryo and sink cooling, angle suitable, embryo without deformation .
5. Using belt conveyor, the embryo cooling out from the tank is quite stable .
6.This line is specially designed for the production of PP Straps. It can produce 2 PP Straps at the same time that saves energy by 20%-30%;
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
Our company competitive advantages:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
