Product Details:
|
Power: | 37kw | After-sales Service: | Engineers Availiable To Service |
---|---|---|---|
Automatic Grade: | Fully Automatic | Voltage: | 380V 50HZ |
Brand Name: | Aorui | Place Of Original: | Shandong , China |
Certificate: | CE ISO9001 | Output: | 50-500kg/h |
High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |

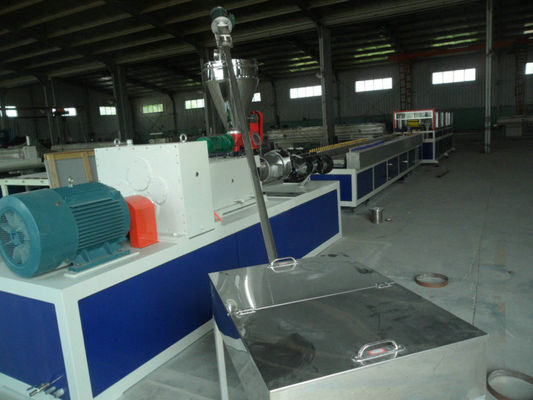

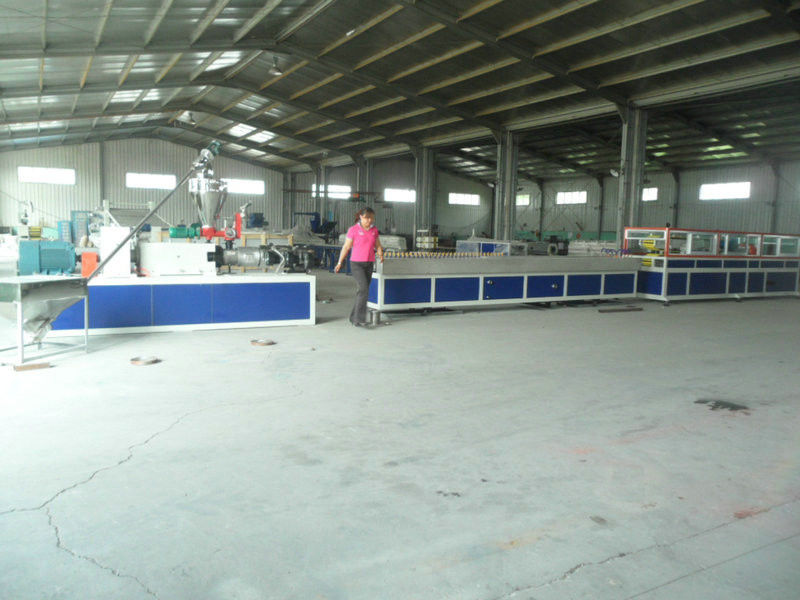

PVC WPC Window and Door Profile Extrusion Line , Plastic Profile Making Machine , PVC Profile Making Machine
Quick detail:
1. The pvc profile machinery can produce PE PP or PVC and wood profile products. These products are mainly applied for making pallets,packing cases, floors, wall decoration materials and other wide applications. The wood powder or plant fiber can be put up tp max.50-75%. This machine can produce the PP,PE , PVC, ABS , PS and etc.
2. It can be equipped with relative auxiliary equipment, such as vacuum calibration platform, haul-off machine, cutting machine and material stacker. It is mainly used for extruding outdoor decorative WPC profiles, such as gardening landscapes, outdoor landscapes, pallets, etc.
Specification of pvc wpc Profile Machine:

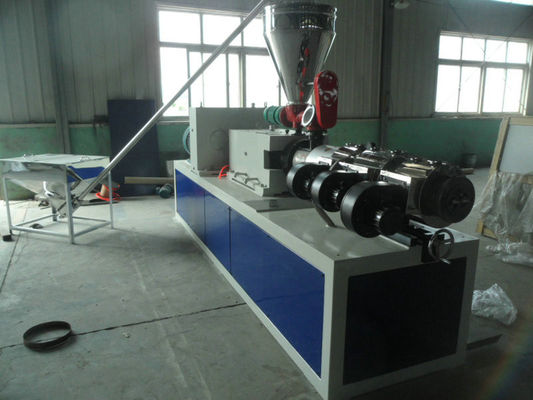

1. The extruder of this extrusion line is the special designed SJZ92/188 conical twin-screw extruder, this extruder is equipped with the temperature controlling gauges which have the advantages of high precision temperature controlling, easy and reliable operation.

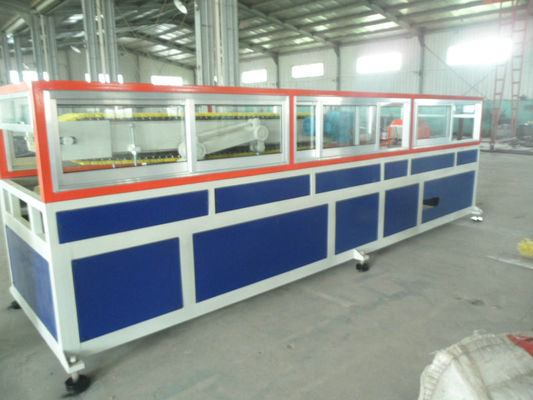

2. The vaccum calibration table equipped with the strong cooling device which ensures the cooling effect. Caterpillar type haul off unit, equipped with the precise speed reduction motor and inverter, has the advantages of reasonable structure, powerful and stable haul off force.
3. The cutter has the reliable and accurate cutting effect. The stacker has the movable stacking trolley and special made rubber protection layer to prevent the production from being scratched. The downstream equipment of this extrusion line uses the programmable computer or domestic made controlling system for stable and reliable operation.
Technical Parameters:
Items | YF180 | YF240 | YF300 | YF600 | YF900 |
Max.width of board(mm) | 180 | 240 | 300 | 600 | 900 |
Extruder Model | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 | |
Mian motor power(KW) | 22 | 37 | 55 | 110 | |
Drawing height(mm) | 150 | 150 | 150 | 150 | 150 |
Drawing speed(KN) | 20 | 20 | 20 | 30 | 40 |
Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 |
Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 |
Cooling water consume(m 3 /h) | 6 | 6 | 6 | 9 | 12 |
Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Our company advantages:
1. CE ISO9001 Certificate
2. We have more than 15 years experience
3. We are factory, and welcome to customer to visit our factory
4. Good pre-sales and after-sales service
5. The customer can send the engineer to our company with training
6. Our engineer can be to the Buyer's company for installation and testing the lines.
7. The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
