Payment & Shipping Terms:
|Certificate:||CE ISO9001||Frequency Control:||ABB|

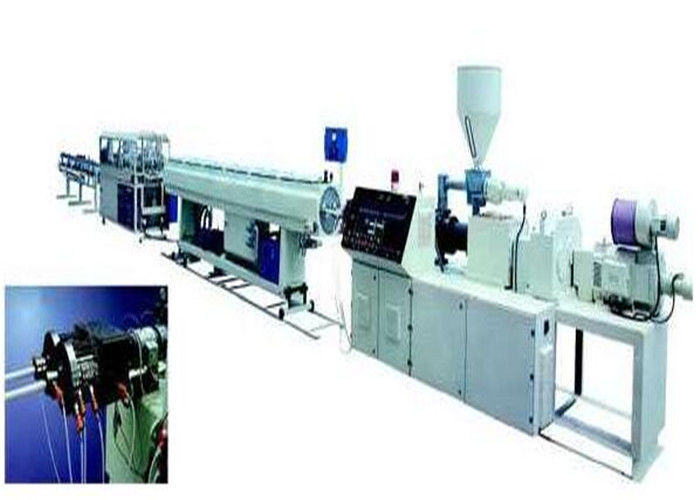

Plastic PVC Conduit Pipe Extrusion Line / PVC UPVC Double Pipe Making Machinery / PVC Plastic Pipe Extruder
1. PVC Twin Pipe Production Line can produce two pipe at the same time, the output is high. Pipe diameter is 16-40mm. Output is 60-120kg/h.
2. PVC Pipe Production Line mainly composed of Conical twin screw extruder, PVC twin pipe extrusion mould, twin pipe vacuum sizing box, twin pipe traction unit, twin pipe cutter , twin pipe stacker.
1. Extruder: Adopt conical twin screw extruder, special design, short plasticzing time, good mixer performance.
2. Gearbox: Adopt high quality gearbox, reducer, good outlook , stable running, low noise, long service life.
3. Extrusion tube temperature control system: Adopt aluminium heater and stainless steel, fan cooling system, to assure good cooling and heating , Accurate temperature control features.
4. Screw and barrel: Screw mounting internal temperature control system, barrel with vacuum degassing system, Eliminates exhaust gas from raw materials,to assure the high quality product.
5. Drive system: Adopt siemens motor, use ABB frequency to offer stable torque output and various speed.

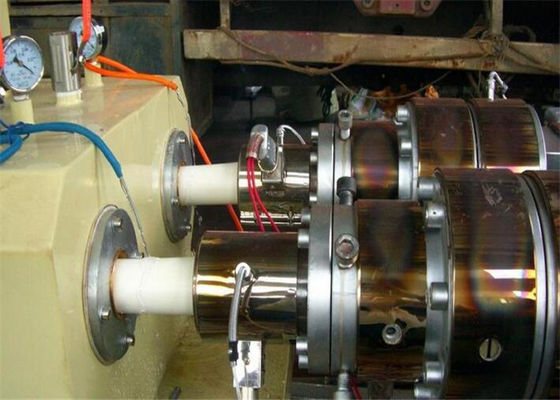

6. Vacuum sizing trough: There are two vacuum chambers, which can ensure the perfect round pipe, spray water cooling, equipped with temperature controller, and realize automatic water discharge. The main slot is made of stainless steel and has long service life.
7. Tractor: There are 2 claw, 3 claw, 4 claw , 6 claw , 8 claw , suitable various pipe. Tractor motor use ABB Frequency control.

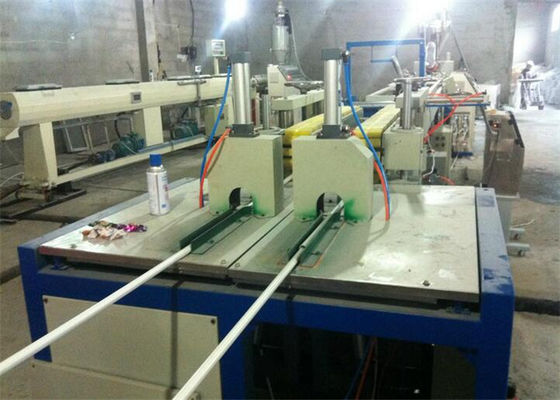

8. Cutter unit: saw cutter, planetary cutter, with dust remove system.
9. Stacker: Automatic overturn, You can modify the length of the pipe freely.
Production Line Strucure
|Main extruder capacity||120-240kg|
|Length of Vacuum spray sizing water tank||4m|
|Maximum production pipe diameter||63mm|
|Drive motor power||0.75kwx4|
Our competitive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
