PVC Foaming Profile / Wood Door Panel Making Machine Fully Automatic

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

PVC Foaming Profile / Wood Door Panel Making Machine Fully Automatic

China PVC Foaming Profile / Wood Door Panel Making Machine Fully Automatic supplier
PVC Foaming Profile / Wood Door Panel Making Machine Fully Automatic supplier PVC Foaming Profile / Wood Door Panel Making Machine Fully Automatic supplier PVC Foaming Profile / Wood Door Panel Making Machine Fully Automatic supplier PVC Foaming Profile / Wood Door Panel Making Machine Fully Automatic supplier

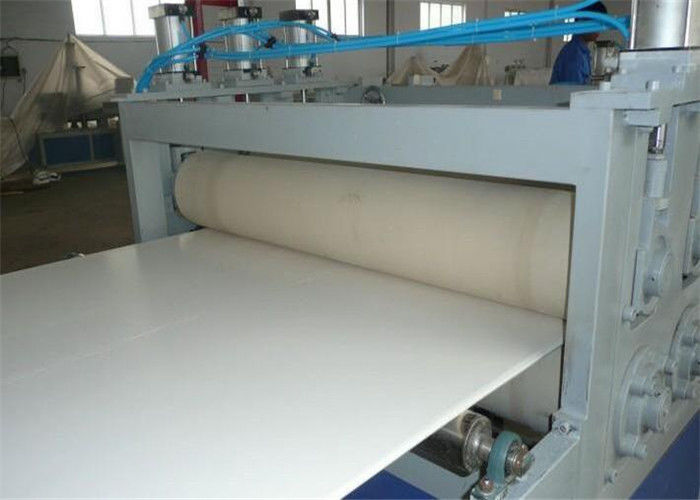

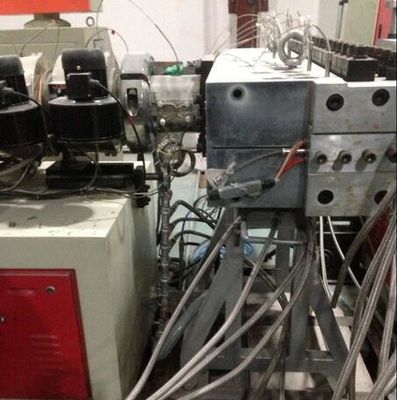

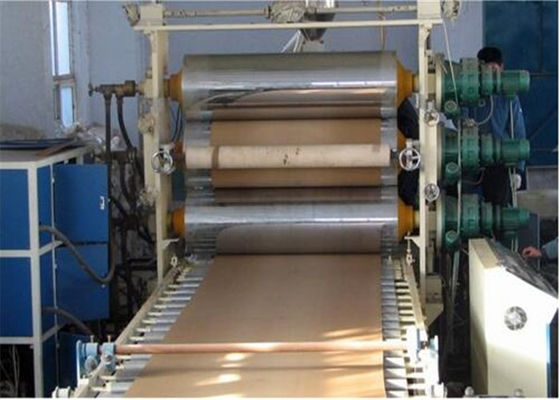

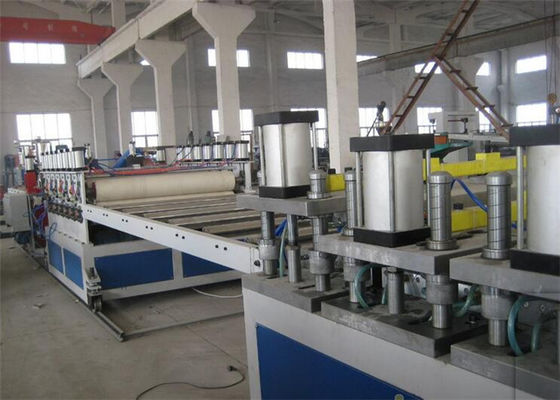

Large Image :  PVC Foaming Profile / Wood Door Panel Making Machine Fully Automatic

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ80/156

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Automatic Grade: Fully Automatic Screw Design: Double Screw
Certificate: CE ISO9001 Voltage: 380V 50HZ
Name: Pvc Foam Board Machinery Motor Brand: Siemens
After-sales Service: Engineers Availiable To Service Application: Panel

Wood Door Panel Making Machine / PVC Foaming Profile Panel Production Line / PVC WPC Skinning Foam Board Extruder



Quick detail:

  1. WPC(PVC) profile is extruded by mixing low-cost plant fiber (wood chip, cotton haulm, corn haulm, wheat shell, bulrush ,etc.) and PE PVC compounding material. Wood plastic products has been enjoyed widespread use all over the world.



2. Advantages: Environmental , safety , low cost , strong and light weight, anti-burning , anti-corrosion , anti-insect and can be installed same as wood . no smell , no position , no dust . no shape changing . can use beside water pool, river. It has all the advantages of wood and plastic characters .

Profile extruding machine



Description:



1. For PVC window profile, equipped with correspondent co-extruder, the rubber seal or the surface color can be co-extruded on line. From the material feeding until the stacking, it is fully automatic, which also pursues the characteristics of good plasticization, low power consumption and cost effective.



2. Configuration:

A.High speed heating/cooling mixer

B.SJSZ series conical twin-screw extruder

C.Mould

D.Shaping table

D.Haul-off

E.Cutting machine

F.Stacker





Specifications:



Mode
Products max width(mm)

Max capacity
(kg/h)

Extruder mode

Extruder power (kw)

Cooling water
(m³/h)

WPC-300

300

240

SJZ65/132

37

7/7

WPC-500

500

350

SJZ80/156

55

8

WPC-900

900

350

SJZ80/156

55

9

WPC-1200

1200

450

SJZ92/188

110

10



Application:



Mainly used to produce plastic profile,  pvc window profile, and other plastic profile products.



Our company competitive advantages:



1. Qingdao Aorui Plastic Machinery Co., Ltd. is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds, integrating scientific research, development, manufacturing, sales and service.



2. The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and constantly blaze new trails to meet the needs of customers. . Products sell well all over the country and exported to many overseas countries and regions, won the trust of all parties, the product is in the same industry leading position in the country.



3. The company is located in the beautiful and rich Jiaozhou Bay, land, sea and air transport developed, beautiful scenery, rapid traffic, welcome new and old customers at home and abroad to work together to create brilliant tomorrow.
