PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled

China PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled supplier
PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled supplier PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled supplier PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled supplier PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled supplier

Large Image :  PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ90/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Condition: New Automatic Grade: Fully Automatic
Plastic Processed: PE PP PPR Screw Design: Single Screw
Original: Shandong, China Brand Name: Aorui
After-sales Service: Engineers Availiable To Service

PE PERT Plastic Pipe Extrusion Line / PE PP PERT Pipe Production Line / PE Water Pipe Extruder Machine





Quick detail:



1.screw specication:various kinds of screw speciation are optional for client,adopt high quality screw,38CrMoAlA material with Nitriding treatment.



2.full set of mould can safisfy different diameter pipe production

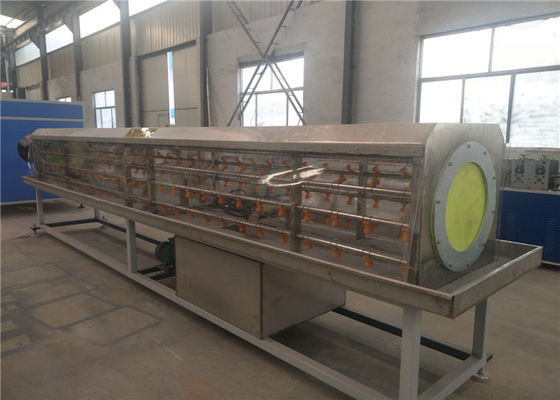

3.spraying and cooling in high level vacuum condition



4.stainless steel material barrel ,recycling water device to keep the reasonable working temperature



5.automatic length accounting device for precise cutting



6.different kinds of cutting way are optional:

1)non chipping machine ,adopt advanced Germany technique

2)planetary cutting machine (main suitable for large diameter pipe)

3)saw blade cutting



7.stainless steel and adopt pneumatic controlled







Description:

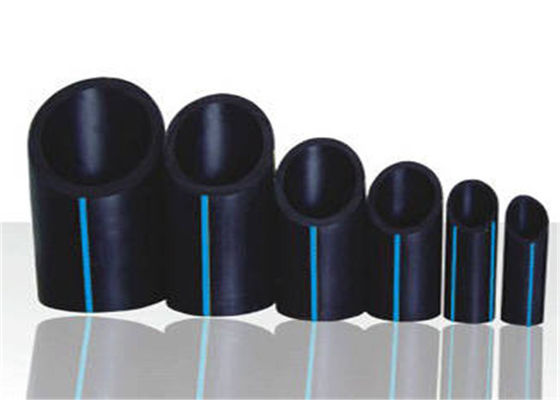

1. PE Plastic pipe can produce many kinds of pipe production line, such as PPR Cool Hot water pipe, PE/PP/PE-RT/PEX pipe, silicon core pipe, this production line can use single extruder to produce single color pipe, also can use extruders through co-extruder to produce multi-layer colorful pipe.



2. The main features of pe pipe machinery: Special design screw, ensure high and stable output . The die can get low melt pressure, low plasticization temperature, and has wide process range . Tractor belt has high wear resistance, the tractor is long service life.



3. Working flow

Mixer→ Vacuum feeding Material dry Single screw extruder Marking line extruder(co-extrusion)Vacuum calibration spraying cooling tank Spraying cooling tank Color-ribbon printer → Haul-off machine Cutter→Stacker







Production Line Strucure



Model Screw Diameter L/D Ratio Production speed Machine total power Machine size
SJ65/33 65mm 33:1 15m/min 63kw 27x1.5x3
SJ60/33 60mm 36:1 35m/min 102kw 34x1.5x3
SJ75/33 75mm 36:1 55m/min 163kw 58x2.5x3







Our competitive advantages:



1. Qingdao Aorui Plastic Machinery Co., Ltd. is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds, integrating scientific research, development, manufacturing, sales and service.



2. The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and constantly blaze new trails to meet the needs of customers. . Products sell well all over the country and exported to many overseas countries and regions, won the trust of all parties, the product is in the same industry leading position in the country.



3. The company is located in the beautiful and rich Jiaozhou Bay, land, sea and air transport developed, beautiful scenery, rapid traffic, welcome new and old customers at home and abroad to work together to create brilliant tomorrow.

PE PERT Plastic Pipe Extrusion Line With Saw Blade Cutting Pneumatic Controlled
