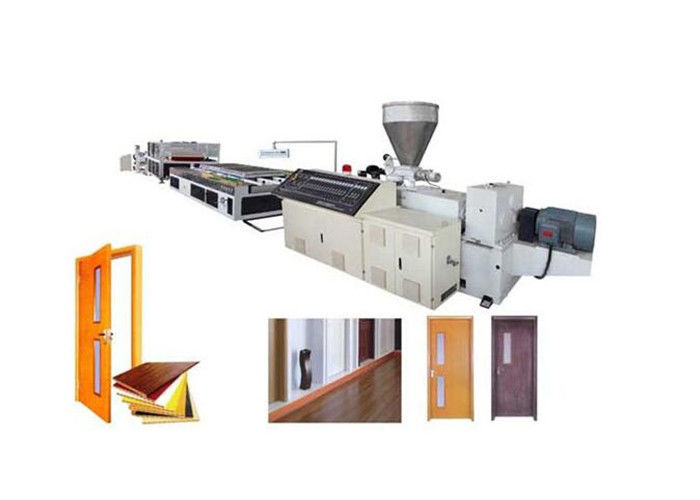

Fully Automatic WPC Board Production Line With ABB Frequency Control

Fully Automatic WPC Board Production Line With ABB Frequency Control
Fully Automatic WPC Board Production Line With ABB Frequency Control Fully Automatic WPC Board Production Line With ABB Frequency Control Fully Automatic WPC Board Production Line With ABB Frequency Control Fully Automatic WPC Board Production Line With ABB Frequency Control

Large Image :  Fully Automatic WPC Board Production Line With ABB Frequency Control

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ80/156,SJSZ92/188
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Fully Automatic WPC Board Production Line With ABB Frequency Control

Description
Brand Name: Aorui Screw Design: Double Screw
Warranty: 1 Year Place Of Original: Shandong , China
Condition: New Automatic Grade: Fully Automatic
Frequency Control: ABB Temperature Controller: Omron
High Light:

Wood Plastic Extruder

,

Wood Plastic Composite Extruder

wpc Board Production Line , PVC WPC Crust Foam Board Extrusion Line, Plastic Construction Board Making Machinery





Quick detail:



1. Process Flow of wood plastic board extrusion line:

Raw material+wood power+additive→mixing → granulating → conical double screw extruder → sheet extrusion mould →

cooling molding die → vacuum calibration tank → belt haul-off → cutter → rack → finished product inspecting&packing



2. Product’s Features:

Environmental Friendly, saving forest resource
with the look of the wood but no timber problems
Moisture-resistant, proven under salt water condition
Barefoot friendly, anti-slip, no crack, no warping
Requires no painting, no glue, low maintenance
Weather resistant, suitable from -40 Degree to 60 DegreeWater and corrosion resistant, alkali-proof,





Description:



1. SJMS80/156 Extruder for WPC board machine

Extruder type: conical double screw extruder

Capacity: 250-350kg/h

Motor power: 75kw

Screw diameter: 80/156



2. Mold for WPC board machine

Width: 1220mm

Thickness: 3-30mm adjustable

Mold heating: electricity heating

with mold temperature control system



3. Calibrating machine for WPC board machine

Quantity of calibrators: 4 sets

cooling method: water cooling

driving by: cylinder or hydraulic

thickness of calibrator plates: 70-100mm



4. Cooling bracket for the WPC board machine

Length: 5 meters.

Cooling method: nature cooling

Cooling rollers: stainless steel material



5. Haulling off machine for the WPC board machine

Haul off rollers: rubber rollers

Quantity of rollers:8 pairs

Rollers up: by cylinders

Rollers driving: gear driving



6.Width cutting for the WPC board machine

Cutting by: cutting knives

Quantity of knives: 2 pieces

cutting width: adjustable, max.1250mm

Dust collection: air suction dust collector









Specifications:



Extruder model SJZ55/110M SJZ65/132M SJZ80/156M SJZ92/188M
Main motor power(kw) 22 37 55 110
Down-stream equipment model YF240S YF240A
YF300A
YF600 YF900
YF1200
Product width(mm) Max240 Max240
Max300
Max600 Max900
Max1200
Vacuum pump(kw) 2*5.5 4*5.5 1*7.5
2*11
1*7.5
2*11
Water pump(kw) 1.5 4 7.5 7.5
Haul-off speed 0-5 0-5 0-3 0-2.5
Down-stream equipment power 22 35 44 52
62
Output(kg/h) 70 120 180 400









Competitive Advantage:



1. Qingdao Aorui Plastic Machinery Co., Ltd. is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds, integrating scientific research, development, manufacturing, sales and service.



2. The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and constantly blaze new trails to meet the needs of customers. . Products sell well all over the country and exported to many overseas countries and regions, won the trust of all parties, the product is in the same industry leading position in the country.



3. The company is located in the beautiful and rich Jiaozhou Bay, land, sea and air transport developed, beautiful scenery, rapid traffic, welcome new and old customers at home and abroad to work together to create brilliant tomorrow.
