Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Condition: | New | After-sales Service: | Engineers Availiable To Service |
| Voltage: | 380V 50HZ | Application: | WPC Foam Board |
| Automatic Grade: | Fully Automatic | Screw Design: | Double Screw |
| High Light: | wpc pvc foam board machine,wpc board production line |
||
WPC Free Foam Board Machine , pvc wpc Free Foamed Sheet , Board , Decoration Sheet Production Line
Quick detail:
1. specifiation of PVC foam board can be produced by machine :
Width: 915mm to 1830mm
Thicness: 3-35mm
Density: 0.35-0.7g/cm3
Hardness 55-80HRC
2. Production flow of pvc foam board machine :
Material batching mixing_extruding_molding_vacuum calibrating and cooling_hauling_cutting- final WPC foam boards
Popular Surface treating ways:
- lamination
- hot stamp printing
Description:

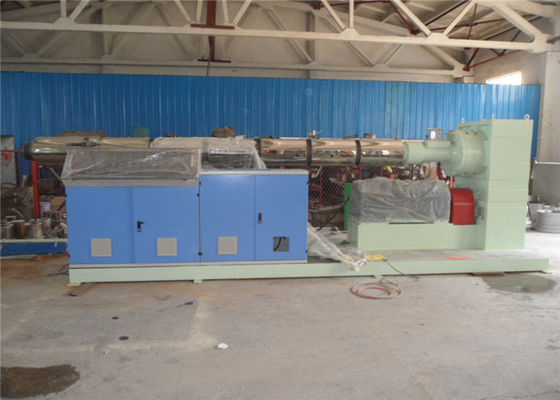

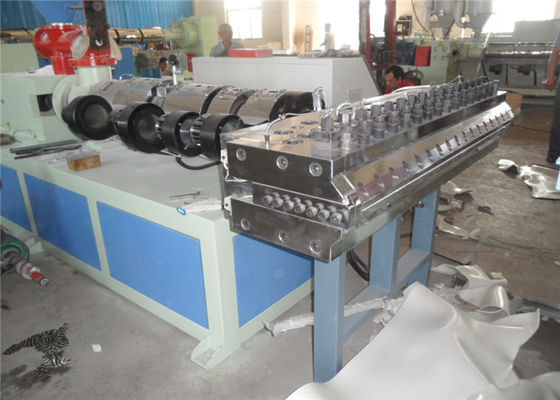

1. PVC free foaming board extrusion machine is composed of special twin-screw extruder, T-die head and downstream equipments. This machine has the features of high output, stable extrusion, high foaming, smooth and wearable surface etc. And also our company will supply the customer raw material formulation and whole processing technology.
2. MACHINE FEATURES:
Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.
Adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
The moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.
Specifications:
|
Model
|
SJSZ-51
|
SJSZ-55
|
SJSZ-65
|
SJSZ-80
|
SJSZ-92
|
|
Screw dia.(mm)
|
51/105
|
55/110
|
65/132
|
80/156
|
92/188
|
|
Max speed(rmp)
|
40
|
38
|
38
|
37
|
36
|
|
Main motor(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
Capacity(kg/h)
|
80~100
|
100~150
|
150~250
|
250~380
|
380~700
|
|
Center height(mm)
|
1050
|
1050
|
1050
|
1050
|
1100
|
|
Net weight(kg)
|
3000
|
3500
|
4000
|
5500
|
8000
|
|
L*W*H(m)
|
3.6x1.1x2.1
|
3.6x1.1x2.1
|
4.2x1.5x2.4
|
4.7x1.5x2.4
|
6x1.6x2.5
|
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
