Gas Water Pipe Production Line / Cool And Hot Water Supply PE Pipe Extruder Machine

China Gas Water Pipe Production Line / Cool And Hot Water Supply PE Pipe Extruder Machine supplier
Gas Water Pipe Production Line / Cool And Hot Water Supply PE Pipe Extruder Machine supplier Gas Water Pipe Production Line / Cool And Hot Water Supply PE Pipe Extruder Machine supplier Gas Water Pipe Production Line / Cool And Hot Water Supply PE Pipe Extruder Machine supplier

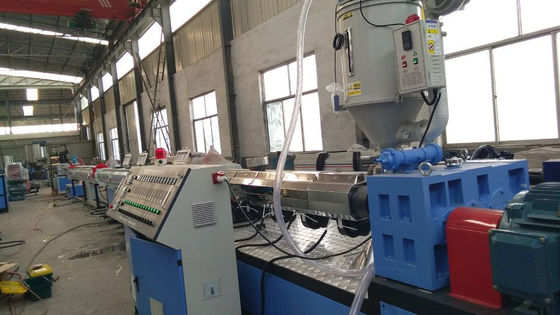

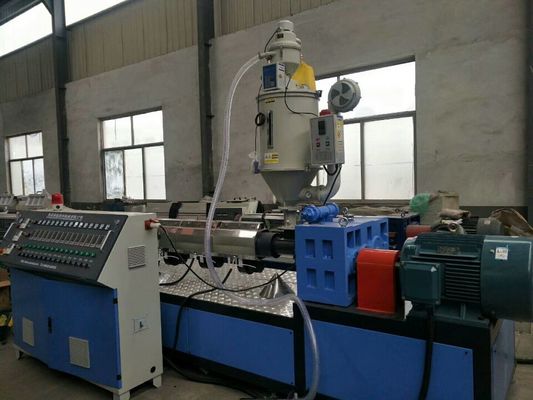

Large Image :  Gas Water Pipe Production Line / Cool And Hot Water Supply PE Pipe Extruder Machine

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ90/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Brand Name: Aorui Automatic Grade: Fully Automatic
Raw Material: PE PPR After-sales Service: Engineer Availiable To Service
Screw Design: Single Screw Warranty Time: 1 Year
Condition: New

PE Water Pipe Extrusion Line , PE Water Gas Pipe Extrusion Process , PE Cool and Hot Water Supply Pipe Extruder Machine



Quick detail

1. PE plastic pipe production line is mainly used for producing water supply pipe and drainage pipe in the field of agriculture and construction, cable etc. This production line consists mainly of single screw extruder, vacuum calibration tank, spraying cooling tank, haul-off machine, cutter, stacker etc.

2. Process Flow
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker

3. It adopts high efficiency single screw extruder can equipped with the Siemens PLC controlling system.

4. It can realize the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PE-RT, PEX, PB pipe.

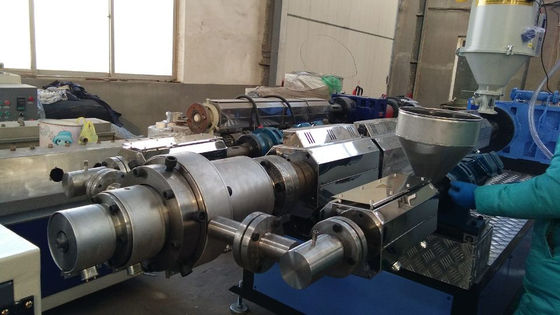

5. Special design of basket die head of for PPR large diameter pipe with thick wall offer lower melting temperature,

good mixing,lower pressure of cavity, and stable production.



Technical parameter:

Model
PE-16/63

PE-20/110

PE-50/160

PE-75/250

PE-110/315

PE-200/450

PE-315/630

PE-400/800

Pipe diameter

16-63mm

20-110mm

50-160mm

75-250mm

110-315mm

200-450mm

315-630mm

400-800mm

Max output

150kg/h

200kg/h

300kg/h

350kg/h

400kg/h

500kg/h

850kg/h

850kg/h

Extrusion speed

1-15m/min

1.2-12m/min

0.6-8m/min

0.5-4m/min

0.4-3.7m/min

0.3-3m/min

0.2-2m/min

0.1-1 m/min

Extruder model

SJ-65/30

SJ-65/33

SJ-75/33

SJ-75/33

SJ-75/33

SJ-90/33

SJ-120/33

SJ-120/33

Installed power

85kw

110kw

125kw

180kw

260kw

325kw

480kw

600kw

Center height

1000mm

1000mm

1000mm

1000mm

1100mm

1100mm

1200mm

1300mm

Line length

35m

38m

38m

40m

42m

52 m

60m

68m



Application:

This PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.



Why choode us:

1. Qingdao Aorui Plastic Machinery Co., Ltd. is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds, integrating scientific research, development, manufacturing, sales and service.

2. The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and constantly blaze new trails to meet the needs of customers. . Products sell well all over the country and exported to many overseas countries and regions, won the trust of all parties, the product is in the same industry leading position in the country.

3. The company is located in the beautiful and rich Jiaozhou Bay, land, sea and air transport developed, beautiful scenery, rapid traffic, welcome new and old customers at home and abroad to work together to create brilliant tomorrow.



The customer who cooperate with us for more than 10 years:

Gas Water Pipe Production Line / Cool And Hot Water Supply PE Pipe Extruder Machine
