PVC UPVC Double Pipe Plastic Extrusion Line / Machinery With Twin Screw

PVC UPVC Double Pipe Plastic Extrusion Line / Machinery With Twin Screw
PVC UPVC Double Pipe Plastic Extrusion Line / Machinery With Twin Screw PVC UPVC Double Pipe Plastic Extrusion Line / Machinery With Twin Screw PVC UPVC Double Pipe Plastic Extrusion Line / Machinery With Twin Screw

Large Image :  PVC UPVC Double Pipe Plastic Extrusion Line / Machinery With Twin Screw

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ51/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

PVC UPVC Double Pipe Plastic Extrusion Line / Machinery With Twin Screw

Description
Raw Material: PVC Warranty Time: 1 Year
Automatic Grade: Fully Automatic Application: PVC Pipe
Voltage: 380V 50HZ Delivery Time: 30 Days
Brand Name: Aorui Type Of Extruder: Twin Screw
High Light:

Pvc Upvc Plastic Extruder Machine

,

80kg/H Plastic Production Line

,

CSA Plastic Extruder Machine

PVC Pipe Plastic Extrusion Production Line / PVC UPVC Pipe Extrusion Process Machinery / PVC Double Pipe Machinery



Quick detail:



1. This production line is developed by absorbing 1990 West European advanced technology. Main chinae is SJSZ51/105 or SJSZ65/132 double screw extruder, equipped with double tubes single-controlled spraying shaper made of stainless steel.

2. The features of pvc pipe machinery: When one tude is being adjusted, the other one will not be affected. Automatic single-controlled double tractor and cutter are mixed together with previous double shaping technology, which makes the operation easier. You can separtely control and make double tubes work at the same time.

3. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing system. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.



Technical parameter:

Model Extrusion type Screw diameter
(mm)
Pipe range
(mm)

Capacity
(kg/h)

Main motor power
(kw)
Line length
(m)
GF40 Double-out 51/105 16-40 80-120 18.5 22
GF63 Double-out 65/132 16-63 120-250 37 25



Application:

PVC threading pipe extrusion line is mainly used to produce all kinds of PVC pipes, which are widely used in water supply and drainage of agriculture land and buildings, and cable laying. This production line is composed of conical twin screw extruder, and vacuum sizing device, traction machine,cutting machine and roll over stand.



Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time

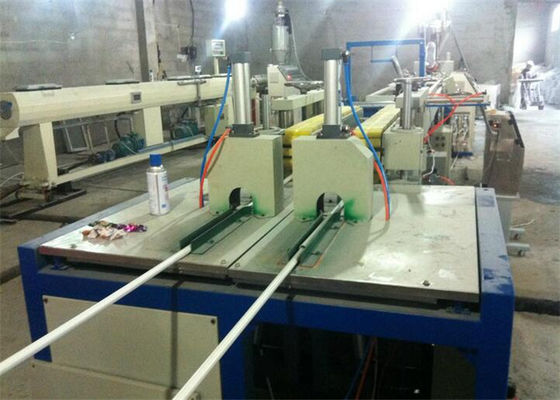

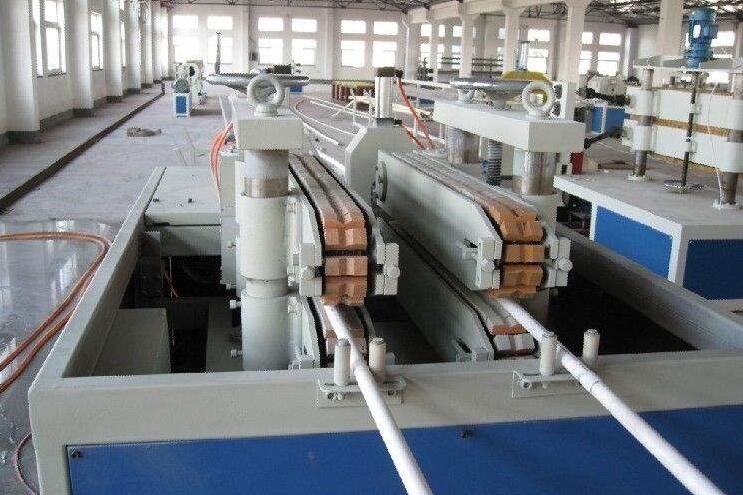

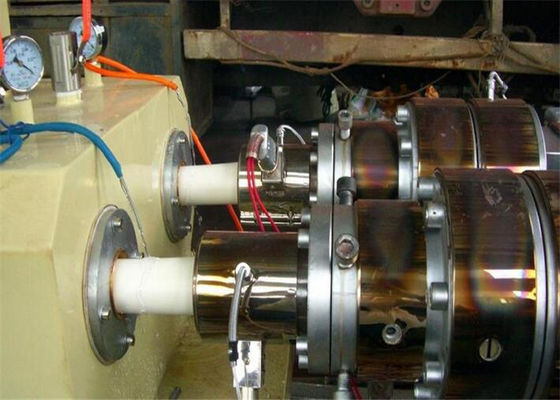

Machine pictures:

PVC UPVC Double Pipe Plastic Extrusion Line / Machinery With Twin Screw 0
