Product Details:
|
| Raw Material: | PVC | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Application: | Pipe | Certificate: | CE ISO9001 |
| Original: | Shandong , China | Model: | SJSZ65X132 |
| Warranty Time: | 1 Year | Pipe Diameter: | 16-630mm |
| High Light: | 16mm Plastic Pipe Extrusion Line,Double Screw PVC Pipe Line,PVC Water Pipe Production Line |
||
PVC Water Pipe Extrusion Line / High Quality Pipe PVC Pipe Making Machine / PVC Drainage Pipe Machinery

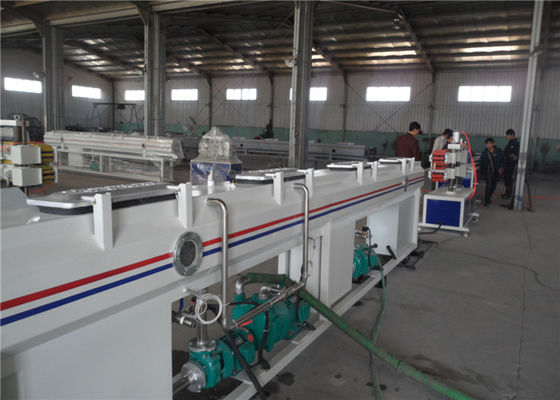

1. With powerful spray nozzle to have better cooling effect
2. With adjustable spray nozzle to have best cooling effect for every pipe sizes and also with adjustable intensive spray nozzle to cool calibration sleeve for different sizes
3. With stainless steel pipeline, valve and big cup filter with high quality
4. With U type nylon plate to ensure pipe roundness
5. With operating platform (with fence and feet protection plate)
6. Use Siemens touch screen to show number of caterpillars used, hauling force, hauling speed, pipe meter and other parameters based on customers’ requirements.
Technical parameter:
| Item/Model | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Diameter range (mm) | 16-63 | 16-110 | 50-160 | 50-250 | 110-400 | 315-630 | 450-800 |
| Claw number of haul off (pcs) | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| Pulling force (KN) | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| Pulling speed (m/min.) | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
Application of pvc pipe production line:

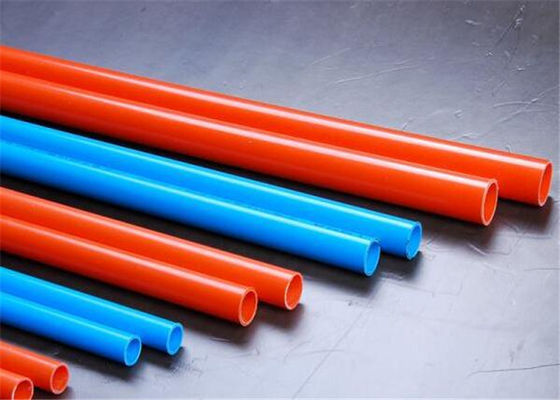

The extrusion line can produce pressure water pipes, drainage pipes, industrial pipes and cables duct. The screw structure for the corresponding designed to meet the processing of high filling material(Caco3) pipe requiement, according to the use of pipe, change molds and the corresponding auxiliary equipment, can be processed produce UPVC pipe,CPVC pipe, PVC-M pipe, PVC-O pipe, foam core layer pipe, foam inside the spiral hollow wall spiral pipe.
PVC Pipe Production Line's advantages:

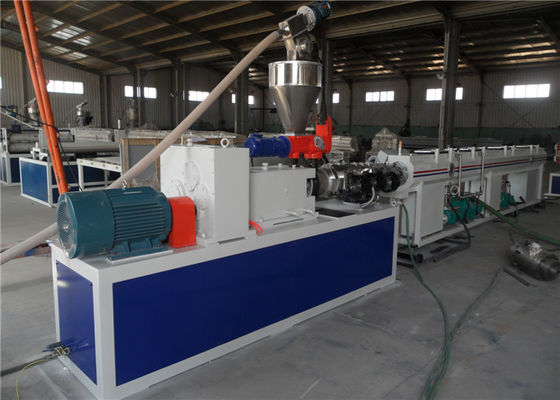

The line adopts advanced technology to result both high effect and precise operation. The most important part of the whole extrusion line, the life time of the complete extrusion line depends on the quality of the extruder. Noramlly, people will select conical twin screw extruder for making pvc pipe. But there are also many people like parellel twin screw extruder because of its high capacity and lower consumption.
