Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine

Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine
Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine

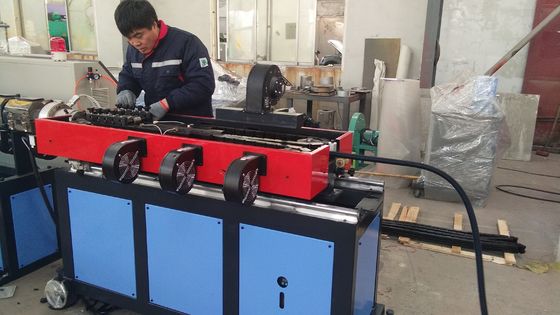

Large Image :  Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine

Description
Model Number: SJ45/33 Condition: New
Motor: Siemens Application: PE Corrugated Pipe
After-sales Service: Engineer Availiable To Service Temperature Controller: Omron
Certificate: CE ISO9001 Raw Material: PE
High Light:

plastic extruder machine

,

plastic production line

PE Plastic Pipe Extrusion Line / Corrugated Pipe Production Line / PE Double Wall Corrugated Pipe Making Machine


Description of PE Double Wall Corrugated Pipe Machine:


1. Mainly using PVC or PE as the main raw material, the line is used to produce single or double-wall corrugated pipe. This product has the features of light weight, high corrosion resistance, erosion resistance and cold and not resistance. It is widely used in such fields of communications, electric wire & cable laying and agricultural irrigation, etc.



2. Features
2.1. The machine mainly uses PVC PP PE as raw material to produce small diameter double wall corrugated pipe;
2.2. Through the corresponding die once moldings, and the internal and external smooth evenly;
2.3. Cable threading pipe, washing machine drain pipe, vacuum tubes, ventilation drain pipe;
2.4. Meticulously researched Φ 4-Φ 6.7mm with small diameter car line corrugated pipe fills up the domestic blank;
2.5. Adopt PLC control and simple operation.
2.6. Use stainless steel which type is 304.
2.7. The center height can be adjusted.


Technical parameter



Item/Model GF63 GF110 GF160 GF250 GF400 GF630 GF800
Diameter range (mm) 16-63 16-110 50-160 50-250 110-400 315-630 450-800
Claw number of haul off (pcs) 2 2 2 3 4 6 8
Pulling force (KN) 6 8 11 20 30 40 50
Pulling speed (m/min.) 15 12 8 9 4 2 2


Our machine competitive advantages and application :


PE PVC Double-wall corrugated pipe production line is my plant collection for many years of experience in manufacturing corrugated pipe equipment. On the basis of absorbing foreign advanced technology and manufacturing processes, well-designed developed, It is not afraid of acid, corrosion resistance and good sealing, no water seepage, high ring stiffness, friction coefficient, anti-aging, anti-electric erosion, softness and good features Applications for wires, cables threading pipe, washing machine drains, vacuum cleaner tubes, ventilation tubes, etc.

Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine 0Durable Plastic Pipe Extrusion Line / PE Double Wall Corrugated Pipe Making Machine 1
