PVC Twin Pipe Making Machine , Double Pipe Production Line 380V 50HZ

China PVC Twin Pipe Making Machine , Double Pipe Production Line 380V 50HZ supplier
PVC Twin Pipe Making Machine , Double Pipe Production Line 380V 50HZ supplier PVC Twin Pipe Making Machine , Double Pipe Production Line 380V 50HZ supplier PVC Twin Pipe Making Machine , Double Pipe Production Line 380V 50HZ supplier

Large Image :  PVC Twin Pipe Making Machine , Double Pipe Production Line 380V 50HZ

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE&ISO9001
Model Number: SJSZ51/105

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Condition: New Plastic Processed: PVC
Voltage: 380V 50HZ Name: PVC Twin Pipe Machine
Screw Design: Double Screw Place Of Original: Shandong, China
Application: PVC Pipe Brand Name: Aorui

Plastic Pipe Extrusion Line , PVC Twin Pipe Making Machine



Quick detail:



1. We manufacture and export plastic machineries along with surgical tubing plant, medical pipe plant, extrusion machineries, plastic processing machineries, PVC processing machineries, LLDPE pipe plant, soft PVC braided hose machinery, plastic recycling machine, PVC trunking machinery, PVC casing capping machinery, corrugated hose machinery, plastic profile machinery, jockey extruder, heater mixer unit, high speed mixer unit, automatic pipe, profile cutting unit, scrap grinder unit for plastics and pipe socketing machinery for various applications.



2. With our expertise and trustworthiness, we are engaged in offering an optimum quality range of PVC Twin Pipe Production Line.





Description:



1.High output pvc pipe machine

   Certificate double screw pvc pipe production line

   PVC pipe extrusion production line

   pipe diameter :16-63mm extruder: SJSZ65/132 high quality with competitive price PVC Twin Pipe Production Line



2. Excellent dispersion at high throughput rates
High pigment and additive loading levels are possible
Very simple machine operation
Long lifetime of screw and barrel parts due to specially developed screw elements
Fast and therefore economical color changes

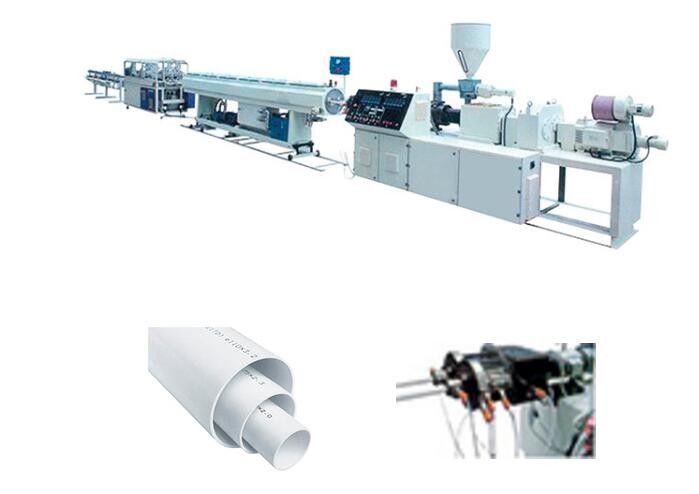

3. PVC double pipe production line is developed for high output of double pipe extrusion.

The main machine is SJSZ51/105 or SJSZ65/132 conical double screw extruder, which is equipped with double-tube single-control

stainless steel spraying shaper to form a production line. It avoids a waste condition when one tube is adjusted and the other one is affected.





Main Technical Parameters of PVC Twin Pipe Production Line:



Diameter scope (mm) 16-40 Dual 20-63 Dual 20-63 50-160 63-200 160-315 315-630 560-800
Conical extruder SJZ51/105 SJZ65/132 SJZ51/105 SJZ65/132 SJZ65/132 SJZ80/156 SJZ92/188 SJZ105/216
Extruder Power(KW) 18.5 AC 37 AC 18.5 AC 37 AC 37 AC 55 AC 110 DC 160 DC
Max. capacity (KG) 120 250 120 250 250 350 800 1100
Max. Lineal speed (m/min..) 10 15 15 8 3.5 3 1.2 1.3







Application:



Mainly used to produce pvc pipe. This machine can produce twin pvc pipe at the same time.

PVC Twin Pipe Making Machine , Double Pipe Production Line 380V 50HZ



Competitive Advantage:

1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life

3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.

PVC Twin Pipe Making Machine , Double Pipe Production Line 380V 50HZ
