Product Details:
|
| Payment Terms: | TT Or L/C | Port Of Shipment: | Qingdao |
|---|---|---|---|
| Type: | Pvc Pipe Machine | Automatic Grade: | Fully Automatic |
| Pipe Range: | 16-63mm | Condition: | New |
| Warranty Time: | 1 Year | Voltage: | 380V 50HZ |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
Plastic Twin Pipe Extrusion Line , PVC Double Pipe Production Line , PVC Pipe Machinery
Quick detail:
1.PVC suction house production line
Doble(twin)-screw extruder with high speed and capacity
ABB inverter frequency,OMRON temperatuer control.
2. GF series plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction.
Description:

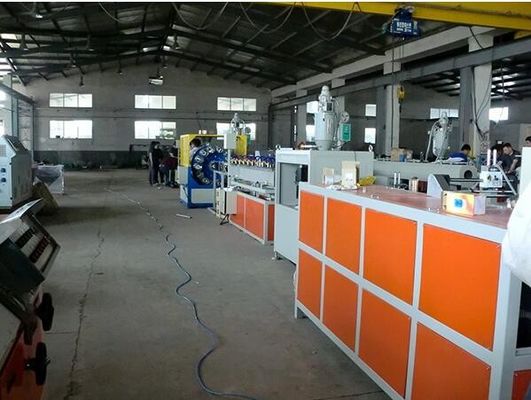

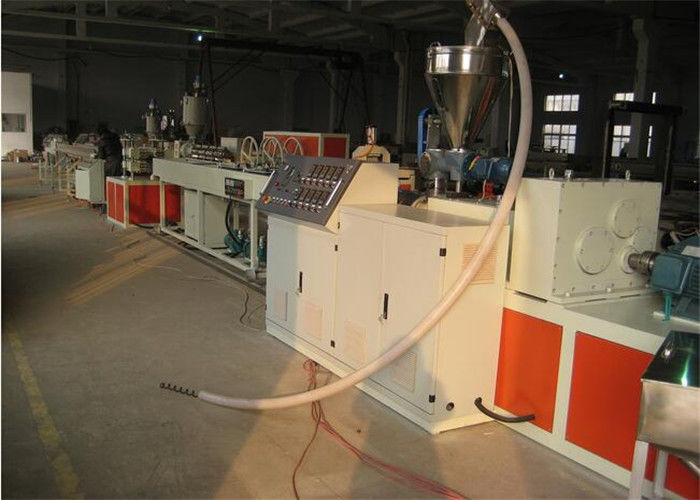

1. This line consists of PVC conical twin-screw extruder, vacuum calibration tank, traction machine, cutting machine and stacker.
2. The extruder and the extractor adopt the imported AC variable frequency speed regulating device, the vacuum pump and traction motor both adopts high quality products.
3. We can configure the special production spiral silencing pipe machine and the core layer foam pipe based on customer’s demand. This production line is mainly used in producing U-PVC pipe, C-PVC pipe, PVC pipe and large diameter water supply or drainage pipe.
4. The extrusion line can produce pressure water pipes, drainage pipes, industrial pipes and cables duct. The screw structure for the corresponding designed to meet the processing of high filling material(Caco3) pipe requiement, according to the use of pipe, change molds and the corresponding auxiliary equipment, can be processed produce UPVC pipe,CPVC pipe, PVC-M pipe, PVC-O pipe, foam core layer pipe, foam inside the spiral hollow wall spiral pipe.
Main Technical Parameters of PVC Twin Pipe Production Line:
| Diameter scope (mm) | 16-40 Dual | 20-63 Dual | 20-63 | 50-160 | 63-200 | 160-315 | 315-630 | 560-800 |
| Conical extruder | SJZ51/105 | SJZ65/132 | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ92/188 | SJZ105/216 |
| Extruder Power(KW) | 18.5 AC | 37 AC | 18.5 AC | 37 AC | 37 AC | 55 AC | 110 DC | 160 DC |
| Max. capacity (KG) | 120 | 250 | 120 | 250 | 250 | 350 | 800 | 1100 |
| Max. Lineal speed (m/min..) | 10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 | 1.3 |
Application:

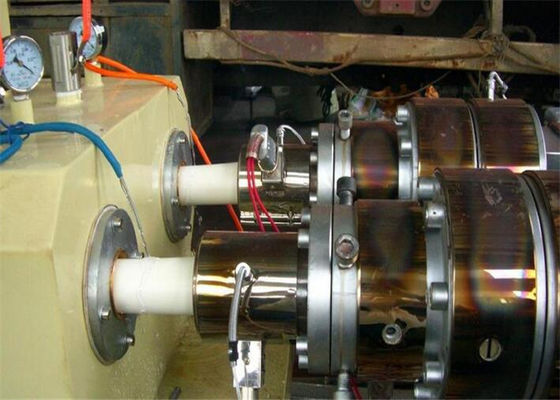

Mainly used to produce pvc pipe. This machine can produce twin pvc pipe at the same time.
1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way, do not include the daily maintaining
2. Our factory provide machine testing when customer come to our factory to see this machine.
3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings.
4.We can provide engineers to customer's factory to help installation and training workers if customer required.
