PVC Plastic Pipe Extrusion Line , Double Screw Water Pipe Production Line

China PVC Plastic Pipe Extrusion Line , Double Screw Water Pipe Production Line supplier
PVC Plastic Pipe Extrusion Line , Double Screw Water Pipe Production Line supplier PVC Plastic Pipe Extrusion Line , Double Screw Water Pipe Production Line supplier PVC Plastic Pipe Extrusion Line , Double Screw Water Pipe Production Line supplier PVC Plastic Pipe Extrusion Line , Double Screw Water Pipe Production Line supplier

Large Image :  PVC Plastic Pipe Extrusion Line , Double Screw Water Pipe Production Line

Product Details:

Place of Origin: China
Brand Name: Aorui
Certification: ce iso9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Condition: New Plastic Processed: PVC
Brand Name: Aorui Automatic Grade: Fully Automatic
After-sales Service: Engineers Availiable To Service Warranty Time: 1 Year
Processing Type: Extruding Machine Output Capacity: 150-200kg/h

Description of PVC Water Pipe Machinery:



1. This line is used to produce pvc pipe by conical twiin screw extruder.
The raw material is pvc powder.
As the type of machine, we will provide according to the diameter of pipe which you want to produce.

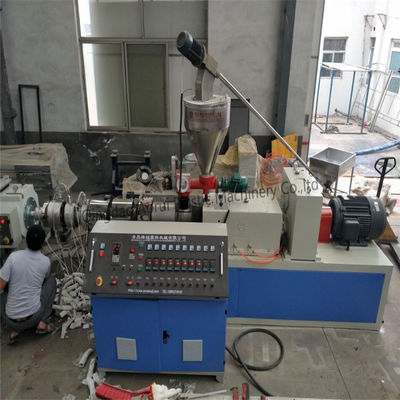

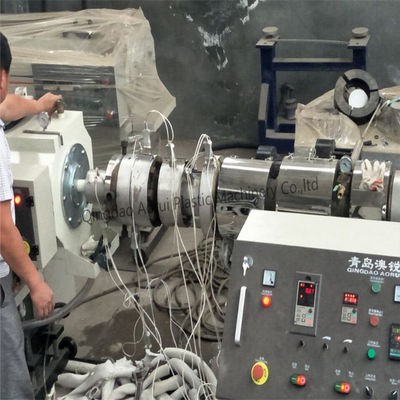

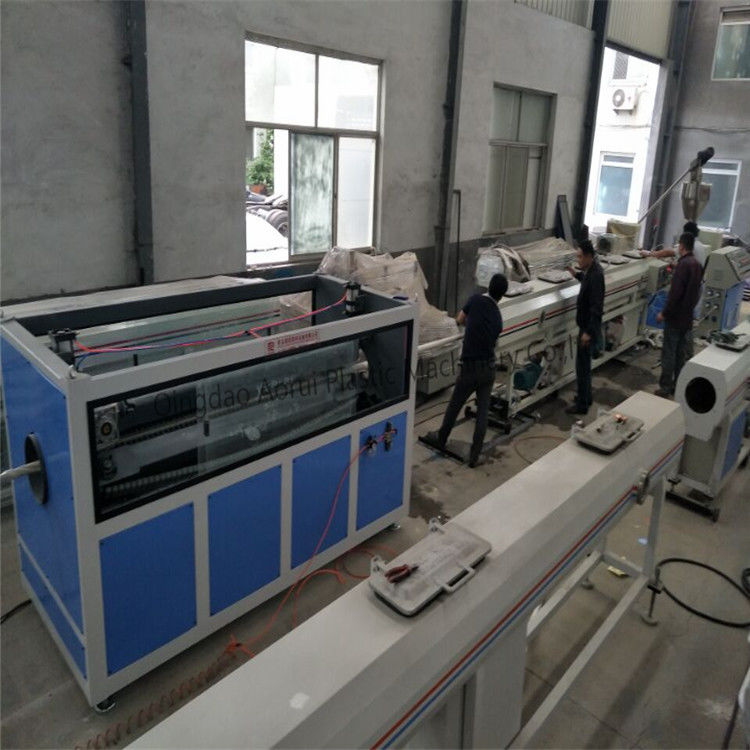

2. This machine group consists mainly of twin conical screws extruder, vacuum calibrating tank, tractor, haul-off unit, cutting unit, tilter, etc.

Other auxiliary machines, like mixer, crusher, pulverizer will provde accroding to cilen's requirements.



3. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc. It can also produce PP, PE ABS, PPR, PEX, silicon core pipe and pipe material of other material.





Main Technical Parameters:



model PVC63 PVC160 PVC250 PVC315 PVC450 PVC630
pipe dia (mm) φ16-φ63 φ75-φ160 φ125-φ250 φ180-φ315 φ200-φ450 φ355-φ630
vacuum tank length(mm) 6000 6000 6000 6000 6000 6000
Vacuum degree (Mpa) -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08
Max.traction (N) 10000 15000 20000 25000 30000 50000
hauling speed(m/min/max) 10 6 4 3 2 1.4
working hauling length(mm) 1000 1500 1500 1500 1800 1600
compressed air (m3/h) 0.4 0.6 1.0 1.2 1.5 2.0
water comsuption (m3/h) 5 6 7 8 9 12
Total length of line (m) 20 22 30 30 36 42





Application of pvc pipe production line:



The products can be applied in civil construction water supply project, municipal engineering, chemical engineering, agricultural irrigation project, landscaping engineering, water plant water supply project and marine aquaculture industries.





Competitive Advantage of our machine:



1. Single screw extruder takes the new and efficient BM Screw,and has the higher screw speed, yield and plasticizing capacity...nose or spiral-flow nose,with a uniform material,convenient adjustment to eliminate extrusion fusion line and so on.

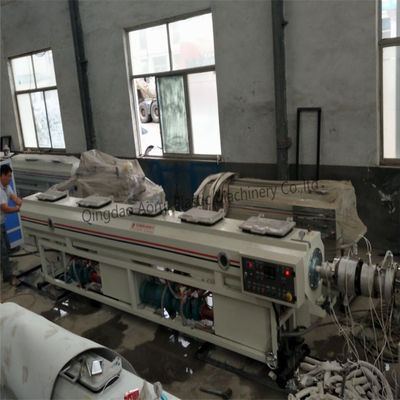

2. vacuum spray tank,spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material.



3. Two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements.



4. Cutting machine of plastic pipe making machine :No dust rotating knife.



5. Stacking devices of PVC pipe making machine :automatic turn plate or roller-type stacking devices, small-diameter pipe can be configured duplex winder according to customer requirements duplex winder.

PVC Plastic Pipe Extrusion Line , Double Screw Water Pipe Production Line
