Single Screw PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production Line

China Single Screw PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production Line supplier
Single Screw PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production Line supplier Single Screw PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production Line supplier Single Screw PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production Line supplier

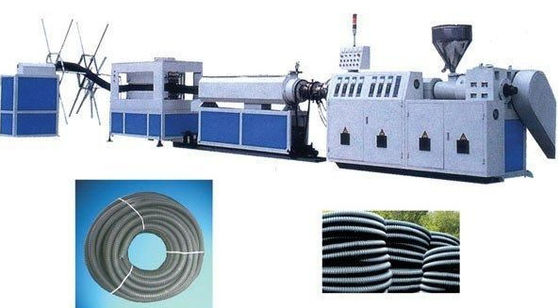

Large Image :  Single Screw PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production Line

Product Details:

Place of Origin: China
Brand Name: Aorui
Certification: CE ISO9001
Model Number: SJ75/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Condition: New Application: PE Carbon Spiral Pipe
Plastic Processed: PE Screw Design: Single Screw
Place Of Original: Shandong, China Brand Name: Aorui
Plastic Machinery: Pipe Making Machine Temperature Controller: Omron

PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production Line:



1. Special single screw extruder for the use of polyolefine material, high speed extrusion and effective plasticization. The special detachment type mixing screw and the standard designed die with spiral structure and reasonable channel are applicable to produce pipes with smooth inside and outside face.



2. Unique sizing and cooling mode is capable of producing pipe scope 50-200mm, production speed is up to 0.6-1.5m/min. Machinery is in sole possession of the special design to sizing cooling way to make the speed for leading position of the same line.



3. The screw has applied oil cooling system. Cylinder is cooled by special wind cooling system. The control system has applied special computer control system. According to customers requirements most reasonable screw can be made so as to achieve best plasticity state and material quality.



Main Technical Parameters:



Specifications
Model
SJP75/26 SJP90/26 SJP110/26 SJP120/26 SJP135/26
Motor Power (KW) 45 75 110 132 160
Dia. Of Screw(mm) 75 90 110 120 135
Max Rolling Speed(RPM) 45 45 45 45 45
L/D 26 26 26 26 26
Max Output(kg/h) 350 460 680 850 1100
Weight(kg) 4100 4700 6500 7500 8400





Application of pvc pipe production line:

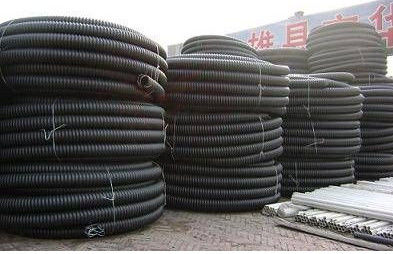

PE Carbon Spiral Reinforcing Pipe Making Machinery is mainly used to produce polyethylene spiral corrugated pipe is mainly used for carbon spiral pipe production line (optical) cable shell protection, and gradually expand the application areas to electricity, telecommunications, postal services, highway, ports and other infrastructure in use.



Competitive Advantage of our machine:



PE Carbon Spiral Reinforcing Pipe Making Machinery has high strength, high toughness, corrosion resistance, no deformation, transport convenient construction. Carbon spiral pipe production line and the ordinary double-wall units, compared with less equipment investment, production tubing, high strength, convenient operation and maintenance.

Single Screw PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production LineSingle Screw PE Plastic Pipe Extrusion Line , PE Carbon Spiral Reinforcing Pipe Production Line
