Plastic Profile Extrusion Line
Created with Pixso.

WPC Window And Door Plastic Profile Extrusion Line With 1 Year Warranty

WPC Window And Door Plastic Profile Extrusion Line With 1 Year Warranty

Brand Name: AORUI
Model Number: SJSZ65/132
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter
Detail Information
Place of Origin:
ShanDong China
Certification:
CE UL CSA ISO9001
Condition:
New
Screw Design:
Double Screw
Automatic Grade:
Fully Automatic
Certificate:
CE ISO9001
Brand Name:
Aorui
Voltage:
380V 50HZ
Warranty:
1 Year
Motor Brand:
Siemens
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 sets per quarter
Highlight:

Plastic Profile Extrusion Machine

,

Plastic Profile Extruder

Product Description



Plastic Profile Extrusion Line , PVC WPC Window and Door Profile Extruder



Description of pvc wpc profile extrusion line:

1.Production flow of PVC window door and door profile:
Material mixing, extruding, molding, vacuum calibrating and cooling, hauling, cutting- final PVC profiles

2.The main machines needed for PVC profile:
-Mixer

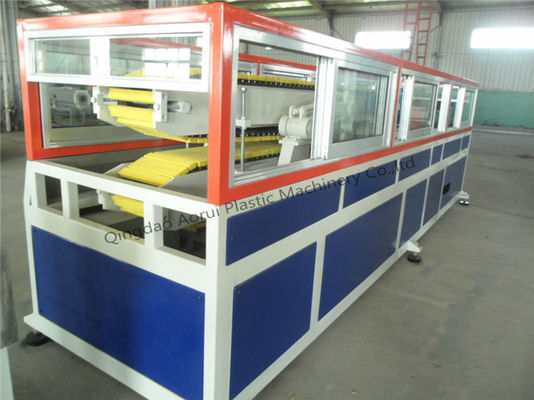

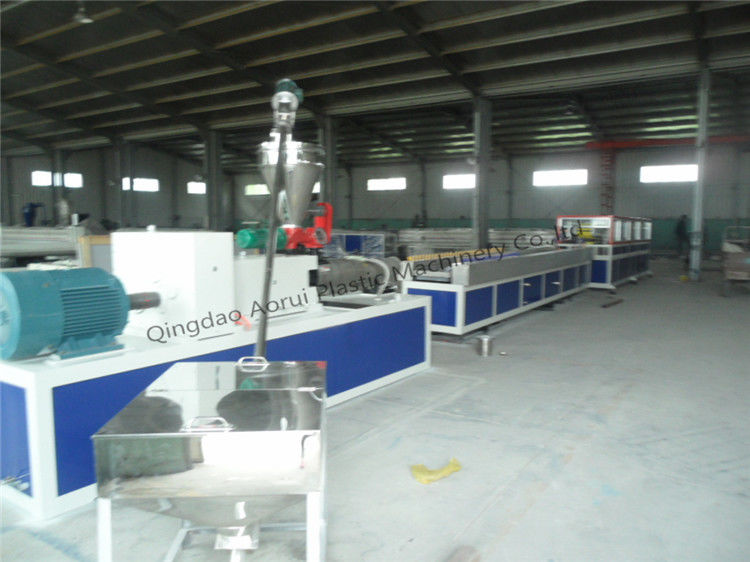

-PVC profile extrusion line (Including autoloader, conical twin screw extruder, mould, vacuum calibration platform, hauling machine, auto cutter- stacker)
- Lamination machine (wrapping machine)
- PVC crusher& PVC miller
- Air compressor
- Water chiller (optional)

3.Wood-Plastic Co-extrusion(foamed) Profile Production Line

There is no need for unit granulation; the material mixed with wood flour can be directly extruded wood-plastic profile.



Main Technical Parameters:

 Production Line Model  YF180  YF240  YF300
 Maximum profile width (mm)  180  240  300
 Auxiliary total power (kw)  18.7  27.5  33.1
 Cooling water capacity (m3/h)  5  7  7
 Compressed air pressure (MPa)  0.6  0.6  0.6



Application of wpc profile production line:

It's used to produce PVC profiles with different shape and size for PVC window, door etc,

such as casement series PVC profile, sliding series PVC profile.



Our pvc machine advantages:

1.High Production Capacity , Stable production, easy maintenance, long service life.

2.High Precision : Thickness Can Be Adjusted, Tolerance Between 0.05mm-0.1mm.

3.Veriaty Styles : Shapes And Sizes Can Be Customized According To Requirements.

4. Low Energy Consumption : Frequency Converter Can Save Power.

5. Convenient Operation : It’s Easy To Operate.
