Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Place Of Original: | Qingdao City | After-sales Service: | Engineers Availiable To Service |
| Delivery Time: | 30 Days | Payment Terms: | TT Or L/C |
| Voltage: | 380V 50HZ | ||
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

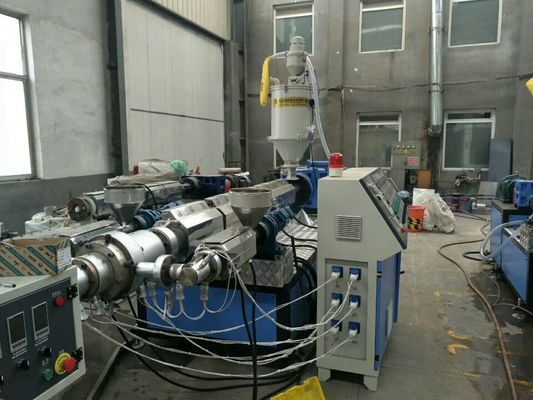

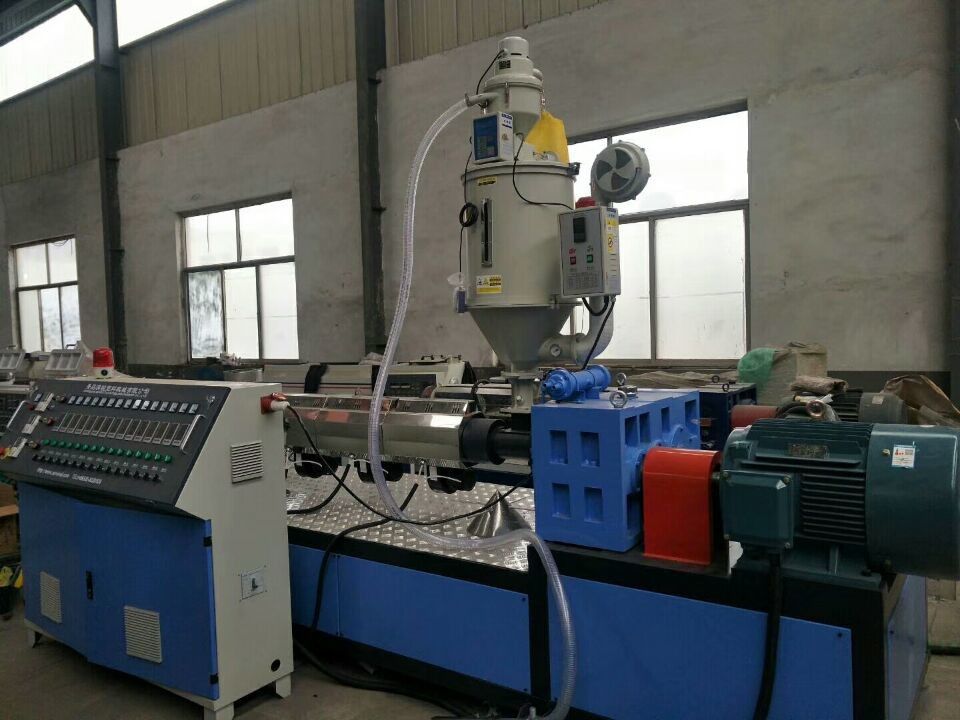

PE Plastic Pipe Extrusion Line , pe Pipe Extruder Making Machine
Quick detail
1.Model: PE Pipe Production Line has such models
SJ65/33, SJ75/33, SJ90/33, SJ120/33
2.Pipe diameter: This machine can produce different pipe, pipe diameter from 16-630mm.
3.Equipment component:
Automatic feeder, Electrical cabinet, Extruder, Mould, Vacuum Sizing Tank, Spray Water Tank,
Tractor, Cutter, Stacker.
4.This machine mainly used to produce different pipe with different pipe diameter
5.Payment terms:30% down payment by TT, balance 70% should be paid by TT before shipping.
6.Min order: One set
7.After -sales service:Engineers availiable to go to customer's factory to installation machine.
8.Warranty time: 1 year
Description:
1.16mm-160mm PP PE water Pipe Production Making Machine is mainly suitable for making PP,PE pipes,with various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc.
2. Extruder screw and barrel from Zhoushan,good quality with long life time.
3. Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
4. Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
5. Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.

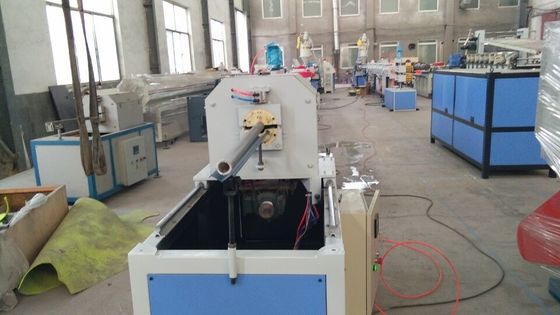

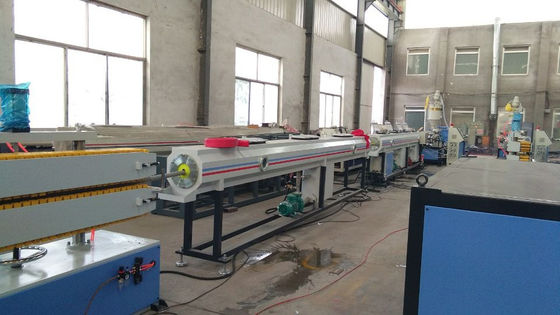

6. Vacuum calibrating and cooling case: the case body is made by #304 stainless steel, good strength and performance,long life time.
7. Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
8. Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.
Specifications:
|
Machine Type
|
Pipe Diameter
|
Main motor power
|
|
SJ65/33
|
16mm-63mm
|
45KW
|
|
SJ75/33
|
63mm-160mm
|
75KW
|
|
SJ90/33
|
160mm-250mm
|
90KW
|
|
SJ110/33
|
250mm-400mm
|
110KW
|
Why choose us?
1.24 hours services;
2.Overseas installation;
3.Free operation training and technology formula transfer;
4.Old machine update;
5.Spare parts and maintenance with reasonable cost price.
