Product Details:
|
| Brand Name: | Aorui | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Application: | Extruder For Meltblown | Condition: | New |
| Voltage: | 380V 50HZ | After-sales Service: | Engineer Can Go Aborad To Service |
| Raw Material: | Pp | Applucation: | Nonwoven Fabric |
| High Light: | nonwoven fabric making machine,non woven manufacturing machine |
||
600mm Width Meltblown Production Line , Meltblown Nonwoven Fabric Making Machine
Quick detail:
1. Application: To produce melt blown filter fabric which is used in face mask.
2. Applicable raw materials: PP etc
3. Product specifications: 430MM or 600MM
4. Production capacity: Size 600MM-300-350KG per day
Description of small scale meltblown making machine:
1.The melt-blown nonwoven process uses high-speed hot air to draw a thin stream of polymer melt extruded from the spinneret of the die,thereby forming ultra-fine fibers and condensing on the curtain net or roller, and relying on itself It becomes a nonwoven fabric.
2.Meltblown non-woven fabric is the core material of masks. Meltblown cloth mainly uses polypropylene as the main raw material, and the fiber diameter can reach 1 to 5 microns. There are many voids, fluffy structure and good anti-wrinkle ability. Ultrafine fibers with unique capillary structure increase the number and surface area of fibers per unit area, so that the meltblown cloth has good filterability, shielding, heat insulation and oil absorption.
3.The melt blown cloth equipment of Leader Machinery consists of PP single screw extruder, hydraulic double pistion filter, melt pump, melt blown spinneret, air heating system, work platform, track receiver, roller receiver, negative pressure suction winding system, pneumatic control system, production line control system.
Technical parameters for meltblown making machine:
| Model | LMSB-800 | LMSB-1600 | LMSB-2400 | LMSB-3200 | LMSB-4000 |
| Model of extruder | SJ-55 | SJ-90 | SJ-110 | SJ-135 | SJ-150 |
| Weight of products | 8-80g/m2 | 8-80g/m2 | 8-80g/m2 | 8-80g/m2 | 8-80g/m2 |
| Max. speed | 50-200m/min | 50-200m/min | 50-200m/min | 50-200m/min | 50-200m/min |
| Daily output | 300-400kg | 1500kg | 2500kg | 4000kg | 6000kg |
Application of meltblwon machinery:
Can be used in the fields of air, liquid filter materials, insulation materials, absorption materials, mask materials, thermal insulation materials, oil absorption materials, and wiping cloths.
Advantages of pp nonwoven fabric meltblown making machine:
Meltblown cloth equipment has stable running performance, high output and high efficiency. The production of non-woven fabrics is uniform, strong, breathable, non-toxic and tasteless, and meets environmental protection standards.

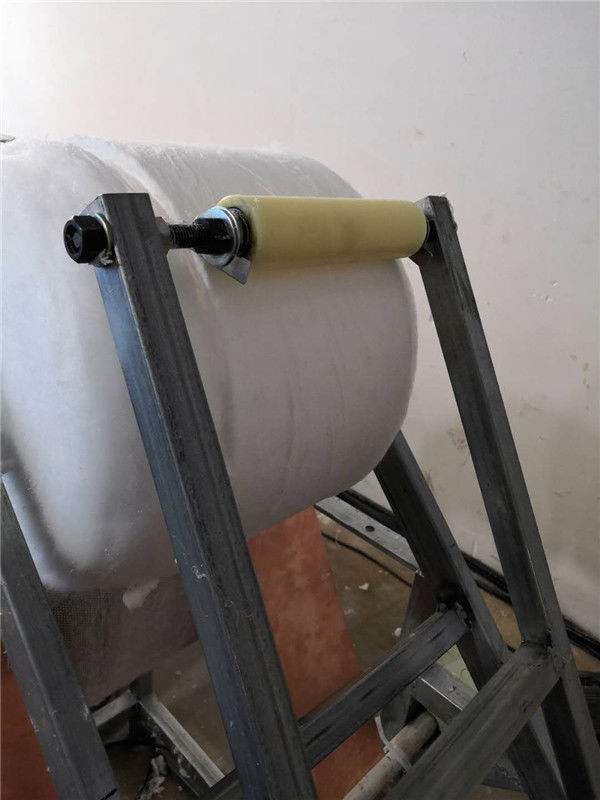

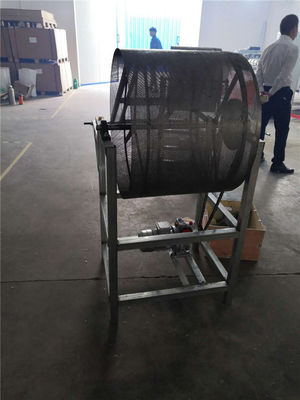

Machine display:
