Product Details:
|
| Brand Name: | Aorui | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Screw Barrel Material: | 38Cr MOAIA | Place Of Original: | Qingdao City |
| Voltage: | 380V 50HZ | Warranty Time: | 1 Year |
| After-sales Service: | Engineers Availiable To Service | Machine Color: | Bule |
| Inverter Brand: | ABB | Motor Brand: | Siemens |
| High Light: | HDPE PPR Pipe Extrusion Line,380V 50HZ Pipe Extrusion Line,Municipal PPR Pipe Extrusion Line |
||
PE HDPE PPR Pipe Extrusion Line With 90mm Single Screw Extruder
Quick detail:
1.Working process (It can produce 20-630mm hdpe pipe )
Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker
2.The complete extrusion consists of following items:
l). Single screw extruder
2).Co- extruder: to manufacture marking multi-layers of pipe
3). Die head
4). Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers
5). Cooling tank: due to diameter, the numbers of cooling tanks can be one or two
6). Haul-offs: due to diameter, it can be designing of double or three caterpillars
7).Cutter: no scraps cutter.
8). stacker
Description of PE Pipe Production Line:
1.This pe pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
2.So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Main technical parameters of PE pipe production line:
| Pipe range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
| Extruder | ¢45mm | ¢60mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
| Extruder power | AC30kw | DC75kw | DC110kw | DC110kw | DC160kw | DC160kw | DC280kw | DC335kw |
| Extrusion capacity | 60-100kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
| Max. production speed | 10m/min | 6m/min | 6m/min | 6m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |
Application of HDPE pipes
1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks
Machine Competitive Advantage:
1.Long service life
2.Easy to operate
3.Spare parts for free

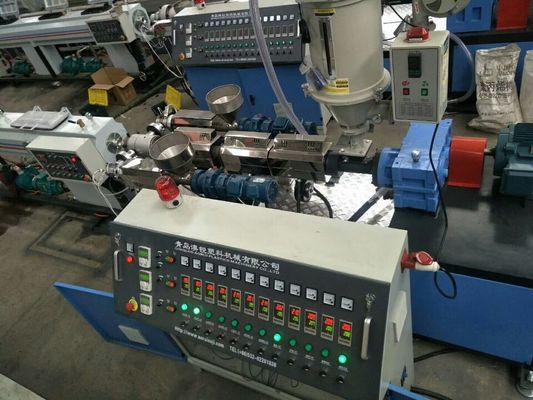

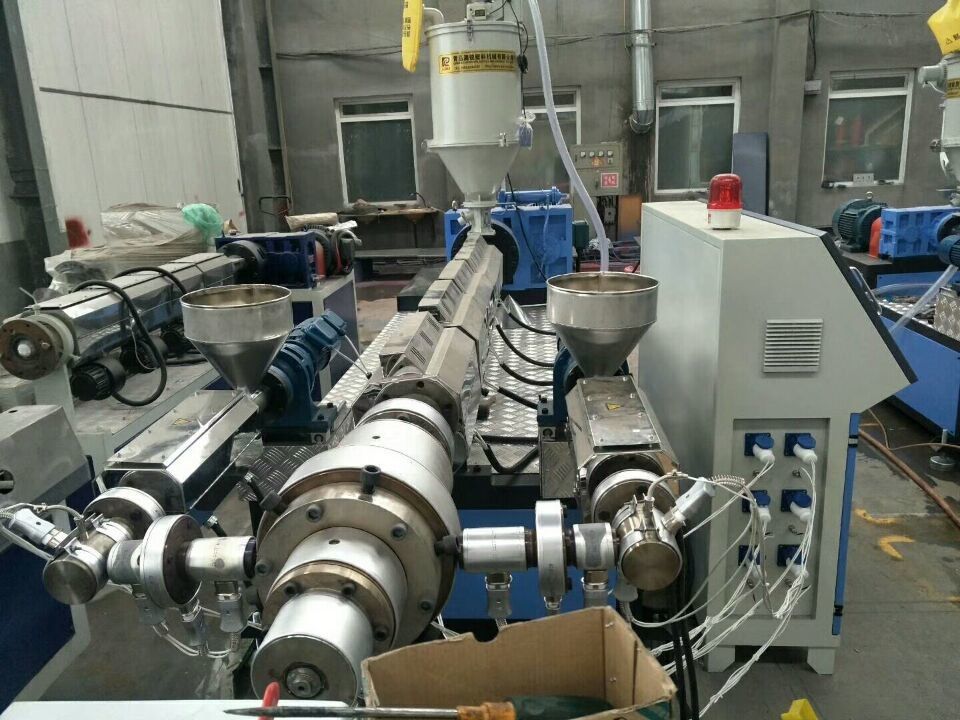

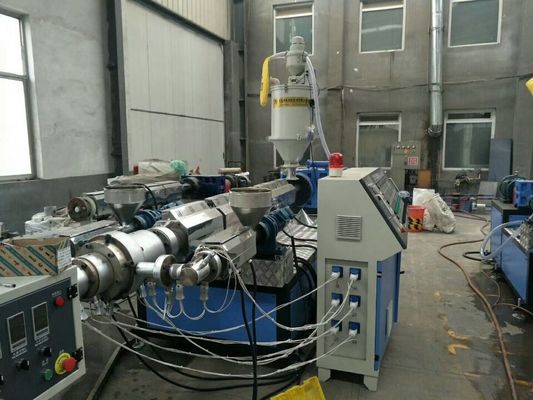

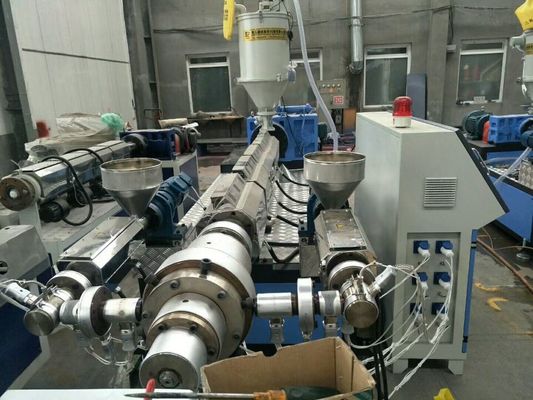

Machine pictures:
