Product Details:
|
| Brand Name: | Aorui | Model Number: | SJ63 |
|---|---|---|---|
| Condition: | New | Voltage: | 380V 50HZ |
| Certificate: | CE Certificate | Motor Brand: | Siemens |
| Warranty: | 1 Year | Screw And Barrel Material: | 38Cr Moaia |
| Place Of Original: | Qingdao City | Delivery Time: | 40 Days |
| High Light: | PA PE Pipe Extrusion Line,12MM Corrugated Pipe Extrusion Line,10kg/H Corrugated Pipe Extrusion Line |
||
PA PE PP Single Wall Corrugated Pipe Production Line , Small or Large Diameter PE Corrgated Pipe Machinery
Quick details:
1.This production line used for producing PP PE PA single wall corrugated pipe production line, special mould is formed in one time, corrugated pipe has smooth surface, clear and even ripple.
2.It is widely used in wire and cable threading pipe. automobile internal line protection tube, Concrete pipe etc.
Description of PE Carbon Spiral Pipe Production Line:
1.PA PP PE Single Wall corrugated Pipe Production Line has new design structure, good outlook, high automatic, it can continuous production.This machine can produce a mold double-cavity single wall bellows,reduce moudule cost, reduce the time to replace modules, to improve efficiency.
2.The structure design of mould is design, production line speed is fast, stable running, easy to control and operate.
3.This production can continous produce pe pp single wall corrugated pipe, plastic single wall corrugated pipe with high temperature resistance, corrision resistance, wear resistance, high strength, good flexible and other characteritics.
4.The corrugated pipe machine produced by our company through gear transmission module, template is cooled by water, product fan cooling, so the corrugated pipe can be formed quickly.Corrugated shape is even, inner and ourter wall smooth, especially suitable for high grade car wiring harness.
Technical parameter:
| Main model | SJ-30 | SJ-50 | SJ-65 |
| Production range(mm) | 4-12 | 16-50 | |
| L/D ratio | 30:1 | 30:1 | 30:1 |
| Production capacity(kg/h) | 10 | 50 | 100 |
| Main motor power(kw) | 4 | 11 | 22 |
| Forming machine power(kw) | 1.1 | 1.5 | 2.2 |
| Module pair | 42 | 42 | 42 |
| Cooling mode | fan cooling | fan cooling | fan cooling |
| Production speed(m/min) | 8-15 | ||
| Count mode | Induction count | ||
| Winder style | Fully automatic |

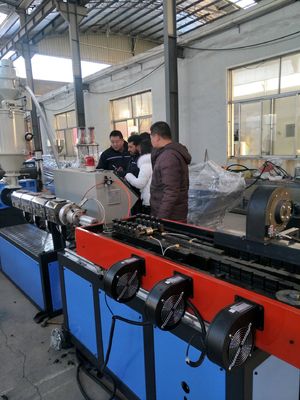

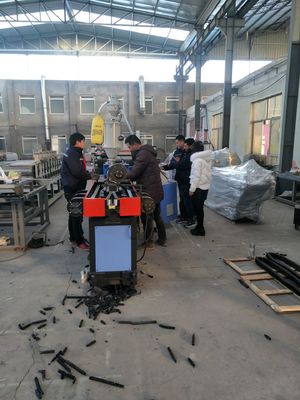

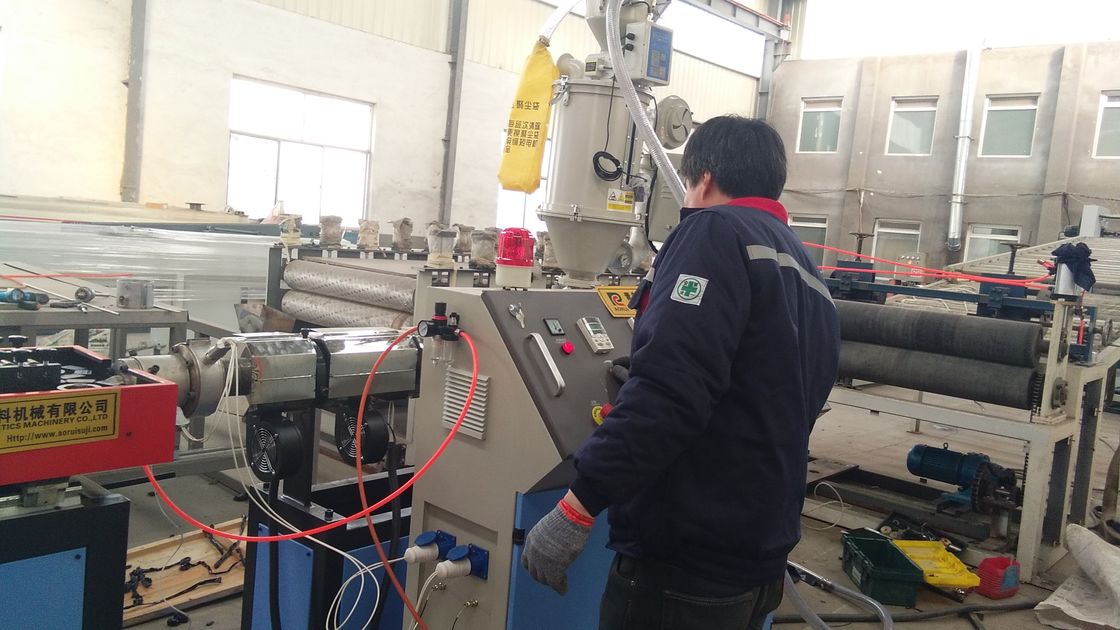

Machine pictures:
