Product Details:
|
Brand Name: | Aorui | Voltage: | 380V 50HZ |
---|---|---|---|
Certificate: | CE Certificate | Key Words: | Extruder |
Automatic Grade: | Fully Automatic | Control System: | PLC Or Frequency Control |
Application: | Plastic Extrusion | Place Of Original: | China |
Screw Number: | Two | After Sales Service: | Engineer Availiable To Service |
High Light: | Conical Double Screw Extruder,PLC Double Screw Extruder,45.5rpm Double Screw Extruder |

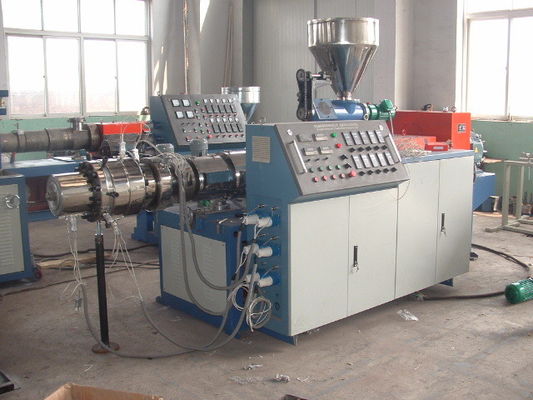

SJ50 Series Hign Capacity Conical Twin Screw Extruder
Quick detail:
1.The Structure and function setting the row of device, to improve the product quality.
2.The screw is conical design, to ensure the melt to be extruded at lower temperature.
3.The core part of the screw is equipped with automatic circulation cooling adjustment system, which improves the efficiency and reliable operation.
4.Barrel has resistive heater, heat transfers quickly and evenly.
5.Adopt frequency conversion stepless speed regulation, stable rotating speed. Convenient speed regulation.
6.Adopt Omron temperature controller, has high precision temperature control.Equipped with over-current keeping device, reliable protection.
Description:
Feature of Machine:
-Touch screen control panel or control by temperature controller
-User friendly software developed by European standard
-High-torque gearbox (Original made in European)
-Screw internal water thermal regulation (Original made in European)
-Equipped with degassing zone
-Different material feeding options for stable production of PVC-U powder
-All commercial parts made in Turkey and Europe
Detailed parameter of each model:
conical twin screw extruder | |||||
Specification/Model | SJSZ45/90 | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
Screw diameter | 45/90 | 51/105 | 65/132 | 80/156 | 92/188 |
Ratitional speed of screw | 1-45rpm | 1-45.5rpm | 1-38rpm | 1-36.9rpm | 1-34.5rpm |
Main motor power | 15kw | 22kw | 37kw | 55kw | 110kw |
Barrel heating power | 9.6kw | 11.5kw | 24kw | 36kw | 88kw |
Production capacity | 70kg/h | 120kg/h | 250kg/h | 360kg/h | 1000kg/h |
Net weight | 2500kg | 3000kg | 4000kg | 5000kg | 5500kg |
Application:
Conical twin screw extruder can be widely used for different PVC plastic products extrusion. Combined use with different plastic auxiliary machines, it can be used for the PVC pipe, PVC profile, PVC board, PVC sheets and PVC pelletizing.special designed conical twin screws designed, which is perfectly good for the PVC extruding.
Our machine competetive advantages:
1. Good components: Siemens Beide main motor, ABB inverter, Siemens & Schneider low voltage electrics, Omron temperature controller
2. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.
3. Our engineers and technicians have more than 10 years experince, they know pipe machine well and make good pipe machine.
Customer visit our factory:
