Product Details:
|
| Brand Name: | Aorui | Screw Design: | Single Screw |
|---|---|---|---|
| Screw LD Ratio: | 33:1 | Condition: | New |
| Screw Material: | 38MoAIA | Place Of Original: | China |
| Motor Brand: | Aorui | Voltage: | 380V 50HZ |
| High Light: | PE Pipe Single Screw Extruder,38MoAIA Single Screw Extruder,65mm Single Screw Extruder |
||
Plastic SJ65/33 Single Screw Extruder For PE Pipe
Quick detail:
The machine can produce different size of PP , HDPE virgin or recycled monofilament , fishing yarn , which is widely used in fishing net , plastic twine , safety net , plastic rope . The machine has the characteristics of high capacity , long life span , easy operation , easy maintenance .
Description:
1.Plastic HDPE Pipe Single Screw Extruder is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists ofsingle extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
2.This set is advanced in design, high in output,good in plasticization and low in energy consumption. The involute gear driving is characterized by low noise, stable working, big bearing capacity and long service life. This set can be used for extruding thermo-plastics like soft or polyviny chlorid(PVC) and poystyrene(PE).
3.Coordinated with the appropriate auxiliary machine (including the head of former), it can produce many kinds of plastic products such as film,pipe,board,braid,belt as well as granule.
Main Technical Parameter
|
Screw Diameter
|
65mm
|
|
Screw Barrel Material
|
38CrMoALA
|
|
Nitride Depth of screw and barrel
|
0.5-0.7mm
|
|
Surface Hardness of screw and barrel
|
HV740-940
|
|
Barrel Heating Method
|
Electric Cast Aluminum
|
|
Barrel Heating Zone
|
4 zones
|
Application:
This single screw extruder can use to produce plastic pipe, board, profile, granulation etc.
Our machine competetive advantages:
Stable running
All electric parts are famous brand
Easy to operate

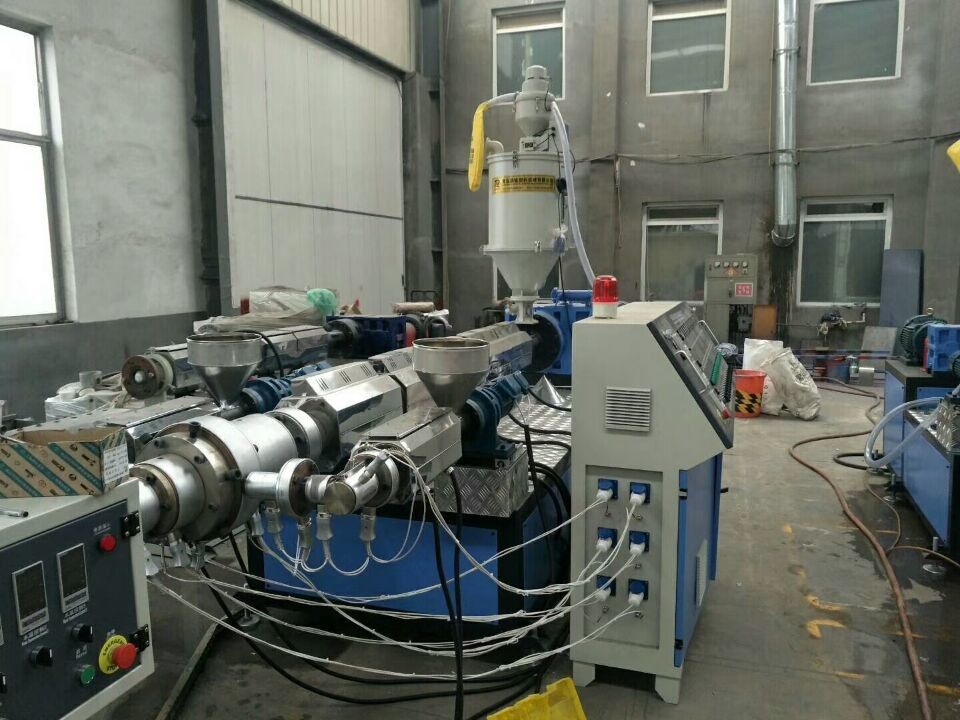

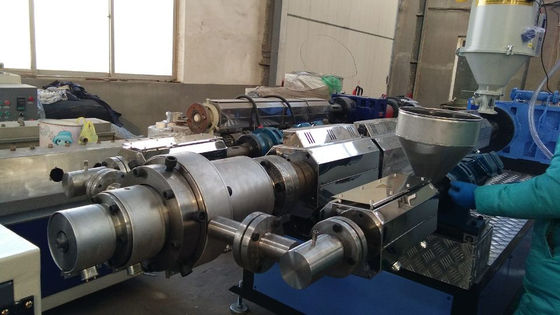

Machine display:
