380V 50HZ 90r/Min PLC PE Pipe Single Screw Extruder

380V 50HZ 90r/Min PLC PE Pipe Single Screw Extruder
380V 50HZ 90r/Min PLC PE Pipe Single Screw Extruder 380V 50HZ 90r/Min PLC PE Pipe Single Screw Extruder

Large Image :  380V 50HZ 90r/Min PLC PE Pipe Single Screw Extruder

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ45
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

380V 50HZ 90r/Min PLC PE Pipe Single Screw Extruder

Description
Control: PLC + Touch Screen Application: Pipe Profile Extrusion
Motor Brand: Siemens Automatic Grade: Fully Automatic
Voltage: 380V 50HZ Certificate: CE ISO9001
Warranty: 1 Year Machine Model: SJ45
High Light:

PE Pipe Single Screw Extruder

,

PLC Single Screw Extruder

,

90r/Min Single Screw Extruder

PE Pipe Single Screw Extruder m SJ45 Single Screw Extruder For Pipe Profile



Quick detail:

Screw and barrel material is 38Cr Moaia, nireiding treatment.

Screw diameter is 55mm

Screw L/D ratio 28:1

Main motor power is 15kw

Screw rotation(r/min) 90

Main machine speed regulation adopt frequency control

Barrel heating adopt cast aluminum hearter, with fan cooling.

Capacity:30-60kg per hour



Description of single screw extruder:

1.Single Screw Extruder are generally devided into three sections in effective length, According to screw diameter, screw pitch, screw depth to determine the effective length of three sections, generally according to one third of each division.

2.High efficiency single screw extruder adopts double step integral design, enhance plasticization function,Ro ensure high soeed and high efficiency extrusion.

3.The comprehensive mixing design of special barrier ensures the mixing effect of materials, and the high shear and low melting and plasticizing temperature ensures the high performance low temperature and low pressure metering extrusion of materials.



Main Technical Parameter:

SPECIFICATIONS FOR Single screw Extruder
Extruder model Max.output(kg/h) Total power(kw)
GW45/30 40-80 15/18.5
GW50/30 80-110 18.5/22
GW65/33 200-350 55/75
GW75/33 550-650 90/110
GW90/33 750-850 160
GW120/33 950-1100 280
GW150/33 1100-1200 315

Application of single screw extruder:
This single screw extruder main use plastic pipe, profile, granulation extrusion.

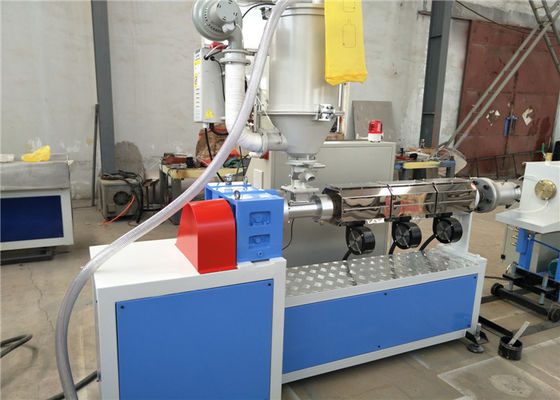

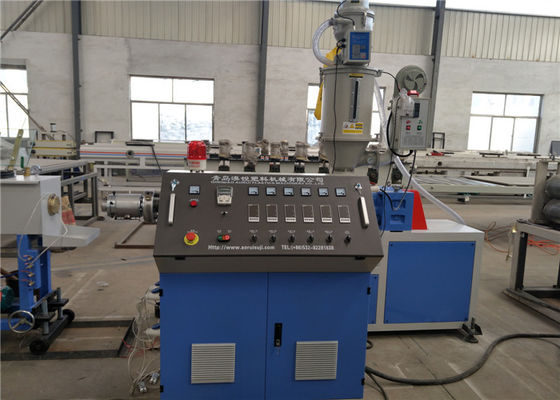

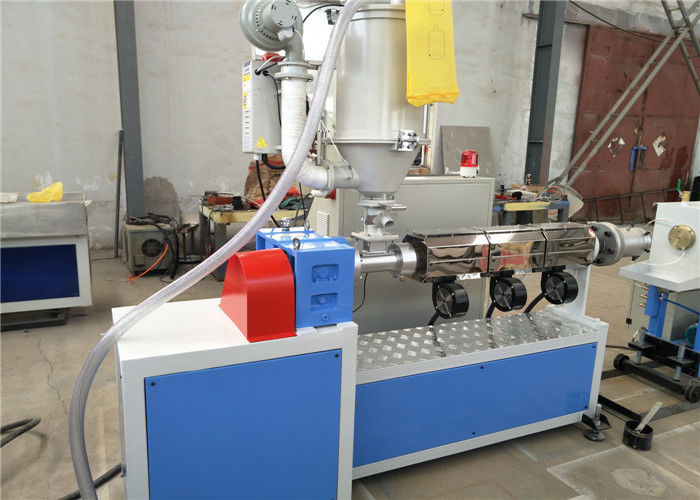

Machine display:
380V 50HZ 90r/Min PLC PE Pipe Single Screw Extruder 0380V 50HZ 90r/Min PLC PE Pipe Single Screw Extruder 1
