PVC WPC Profile Production Line For Sound Insulation Board

PVC WPC Profile Production Line For Sound Insulation Board
PVC WPC Profile Production Line For Sound Insulation Board PVC WPC Profile Production Line For Sound Insulation Board PVC WPC Profile Production Line For Sound Insulation Board

Large Image :  PVC WPC Profile Production Line For Sound Insulation Board

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE, UL, CSA, ISO9001
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Fumigation wood,film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 Sets per month

PVC WPC Profile Production Line For Sound Insulation Board

Description
Screw Design: Double Screw Application: PVC Profile
Plastic Processed: PVC Place Of Original: China
Certificate: CE ISO9001 Contactor: Schneidel
Guarantee: 1 Year Temperature Controller: Omron
High Light:

PVC WPC Profile Production Line

,

Sound Insulation Board Production Line

,

CSA WPC Profile Production Line

PVC WPC Plastic Profile Edge Profile Production Line , Plastic Profile Machine

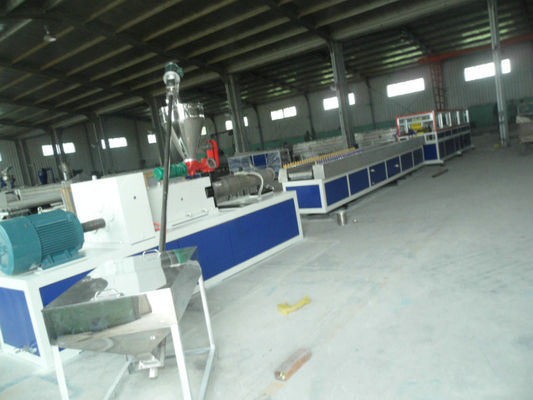

The whole production line includes the following parts:
1. SRL-Z300/600 or SRL-Z200/500 mixing machine
2. Spring Feeder
3. SJSZ-65/132/SJSZ80/156 twin screw extruder
4. profile moulds (make according to your requirements)

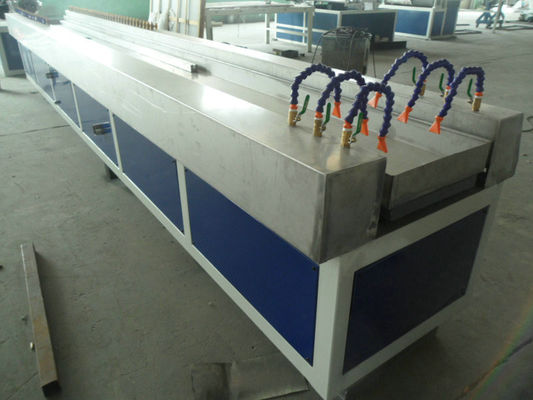

5. Vacuum calibrating table

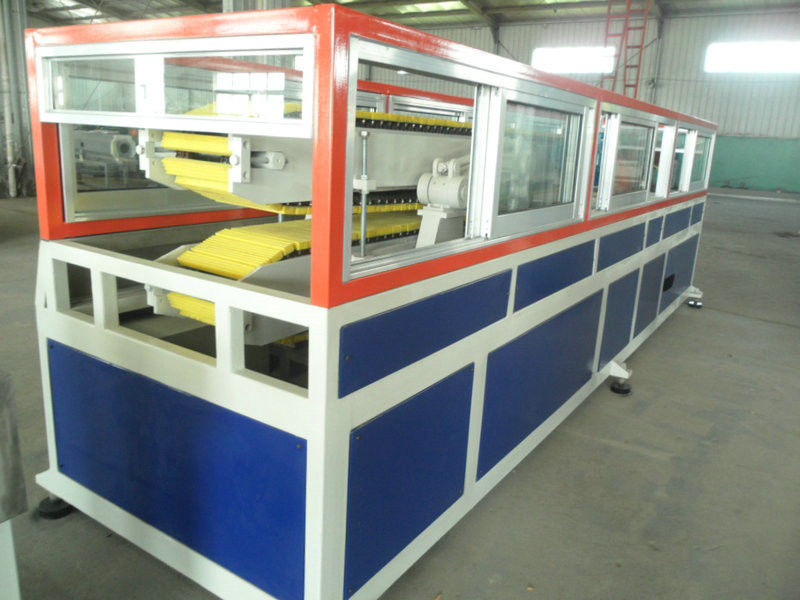

6. Hauling off machine
8. Cutting machine
9. stacker



Description:

1.Process flow:

Raw material +wood power+ additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack

2.Specified screw design for profile gets better plasticizing and more stable extrusion; High-speed cooling forming die supports the production line with faster linear speed and higher efficiency;

3. Upper and lower belt is driven by the separate motor, which ensures stability and reliability of hauling;
4. Calibration table is adjustable by fore-back, left-right, up-down which brings simplified and convenient operation;
5. Saw cutting unit brings speedy and stable cutting with smooth incision; as to wide width board;
6. We also offer hauling and cutting combined unit which is a more compact and economical design.



Applications:



The PVC profile extrusion line is used to produce all kinds of PVC profile such as window & door profile, PVC wire trunking, PVC water trough, PVC ceiling panel and so on.



Specifications:

Model

SJSZ65/132,SJSZ80/156,SJSZ92/188

usage

extrusion outdoor decorative

raw material

recycled PE/PP,wood powder, additive material,etc

product size

maximum:400mm,or according to prdroduct’s drawing

Extruder feature

Special designed extruder

wood powder ( wood fiber)

high volume of addition up to 50~75 percent

Plastic proceed

PP,PE,PVC,wood plastic composite

Auxiliary machine

Emboss machine,sanding machine,polishing machine

Product type

Dustbin, Sound insulation board (wall),edging,blinds,bulkhead,curtain rod,



Competitive Advantage:

1.good after-service

2.spare parts are free

3.guarantee:one year or according to customer’s requirement.

4.advanced technology and best quality

5.international certification standard.

6.our engineer help and teach customer to test the machine.
