Product Details:
|
| Brand Name: | Aorui | Model Number: | SJ90/33 |
|---|---|---|---|
| Auotmatic Grade: | Fully Automatic | Warranty Time: | 1 Year |
| Certificate: | CE Certificate | Screw Design: | Single Screw |
| Machine Capacity: | 150-200kg/h | Raw Materrial: | PP PE Plastic |
| Motor Power: | 45kw | Voltage: | 380V 50HZ |
| High Light: | Recycling Plastic Granules Machine,200kg/H Plastic Granules Machine,45kw Plastic Granules Machine |
||
PP PE Film Hard Single Stage Recycling Plastic Granules Machine With High Capacity
Quick detail:
1. This recycling granulating machine with high effectively exhausting and fillter.
2. The recycled plastic material is cut,pre-dried,pre-heated,pre-homogenized and compacted in the shredding drum.
3. Many materials can be processed directly without need of the upstream pre-shredding ,resulting in a dramatic reduction in operaional costs.
4. Less power consumption cost per kilogram,high throughput,reduced floor space occupation and operator attendance.
Description:

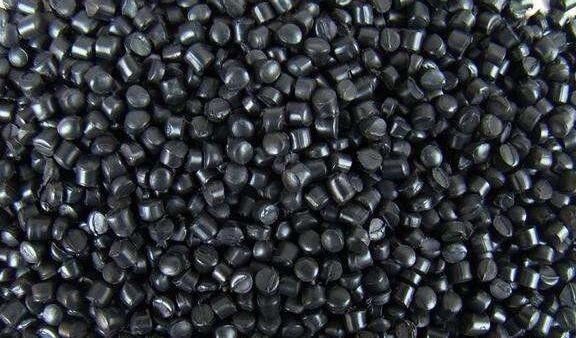

1.This granulator machine is used to make pellets from waste plastics, like PP, PE films, or HDPE, PP flakes or PET flakes.For plastic PP, PE films, we developed a compact pelletizing line for them.
2.Due to the films are very soft and foamed, it's difficult to be filled into extruder directly, even by force feeder screw, the efficiency is not good, and can be blocked. So, we integrated the most advanced technologies and cost-effective concepts for this kind of machine, we developed the PP, PE film granulating machine.
3.Process flow of China supplier double stage pp pe film compantor granulator
Conveyor Belt-Compactor-Extruder-Die and Net Changing Device-Cooling Water Tank-Drying Blower-Pelletizing Machine- Cyclone Hopper-Control Panel
Parameters of PP PE film bag plastic pelletizing machine:
| Model | YRBF-1000 | YRBF-1200 | YRBF-1500 | YRBF-2000 |
| Screw diameter | Φ60mm | Φ65mm | Φ75mm | 90mm |
| Film width | 1000mm | 1200mm | 1500mm | 2000mm |
| Max. Output | 50kg/h | 65kg/h | 80kg/h | 100kg/h |
| Main motor power | 15kw | 15kw | 18.5kw | 37kw |
| Power | 28kw | 38kw | 50kw | 80kw |
| L/D | 30: 1 | 30: 1 | 30: 1 | 30: 1 |
| Power supply | 380/3/4/50(Volt/pH/Line/Hz) | |||
| Weight | 4000kg | 4200kg | 4500kg | 7000kg |
| Overall Dimension | 9.0*3.5*2.5m | 9.5*3.8*2.5m | 10.0*4.0*2.6m | 11.5*4.8*4.0m |
Application of PVC granulating plastic machine:
Waste Plastic film / bags after washing recycling ,we can use this machine to making plastic granules.New granules After Blow molding or Injection ,it can be used to making new plastic product.Such as plastic film,plastic bags,plastic bottle,plastic pallet,plastic box,plastic barrel etc.
2.this machine suit for PE PP HDPE LDPE LLDPE.

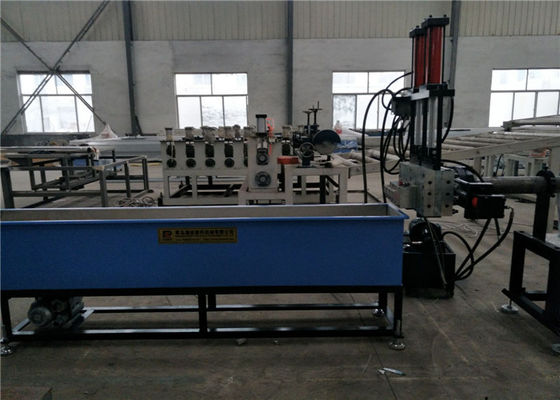

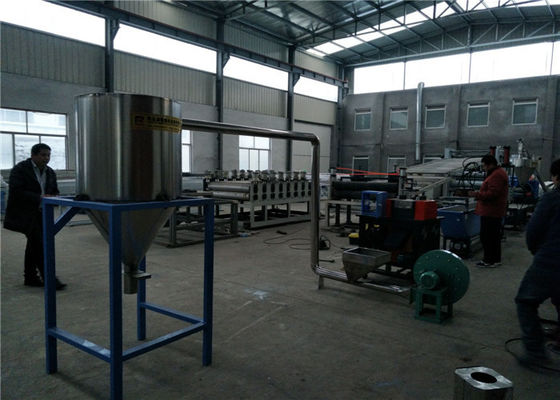

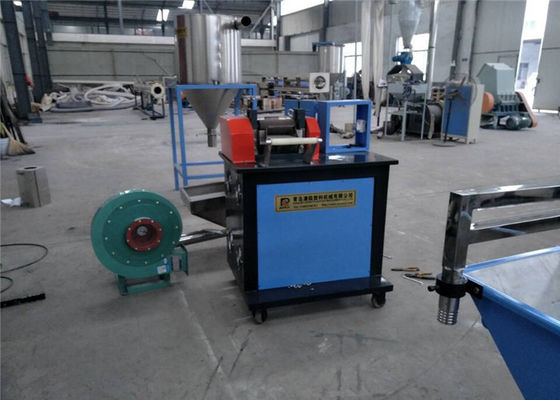

Machine display:
