Product Details:
|
| Brand Name: | Aorui | Place Of Original: | China |
|---|---|---|---|
| Warranty Time: | 1 Year | Certificate: | CE Certificate |
| Voltage: | 380V 50HZ | Motor Brand: | Siemens |
| After-sales Service: | Engineer Availiable To Service | Condition: | New |
| Screw Design: | Double Screw | Machine Color: | Bule |
| High Light: | PE Plastic Granulator Machine,Recycled Plastic Granulator Machine,Woven Bag Plastic Granulator Machine |
||
Recycled Plastic Woven Bag Bottle Film Granulating Machine , PP PE Plastic Granules Machine
Quick detail:
1.This double stage pp pe granulating machine is composed of two exhaust type plastic extruders in series into a step type waste plastic recycle granulating machine.
2.The line is special equipment for the PE materials and PP woven bag recycling granulating, it equipped with compacting machine which could pre- compact the film into smaller granules, then easily feed into screw barrel of extruder, ensure high capacity and save labor.
Description:
1.This plastic pelletizing machine main used for recycling pp pe plastic, then make them into granules. The special designed exhaust port can effectively remove the moisture and volatile gas produced in the process of material melting.
2.The extruded particles are uniform, beautiful, with good transparency, and high production efficiency. The advanced low-noise hard tooth surface belt forced lubrication reducer is adopted to ensure that the host can adapt to high-speed continuous operation.

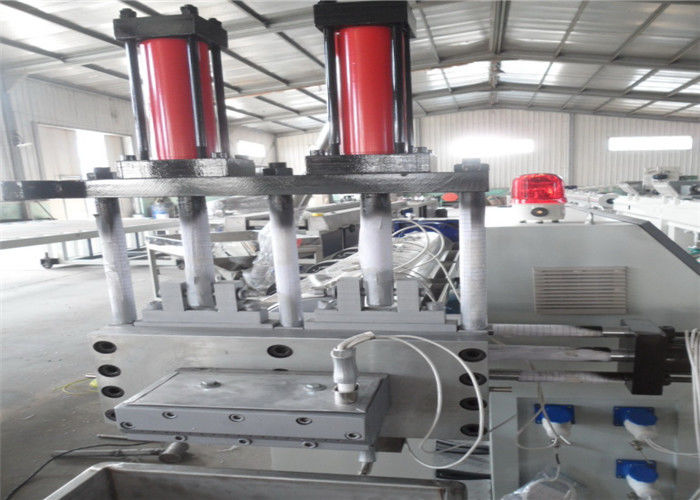

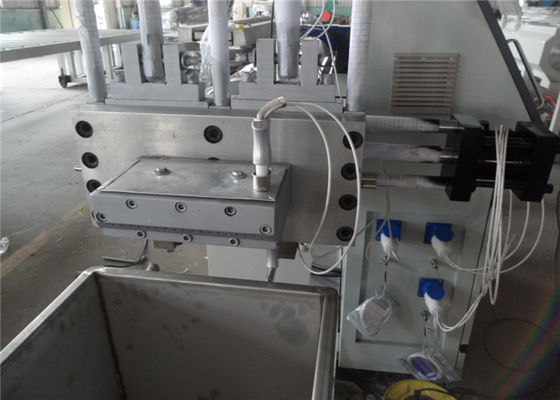

3. At the end of screw barrel, it equipped with double post fast speed hydraulic non -stop screen changer which can effectively filt out the dirty in the plastic melt.

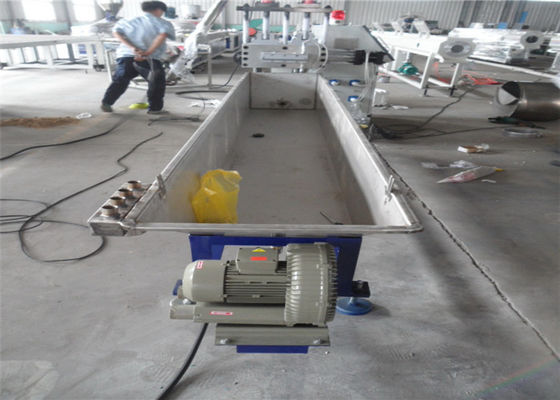

4. The pelletizing adopts water flush pelletizing which is easier to operate, and the shape and appearance of granule is good.
Main parameters PP/PE plastic granules/pellets making machine:
| Extruder | SJ85 | SJ100 | SJ130 | SJ160 |
| Screw diameter | 85mm | 100mm | 130mm | 160mm |
| Main motor | 55kw | 90kw | 132kw | 160kw |
| Compactor power | 37kw | 55kw | 75kw | 90kw |
| Capacity | 100-180kg | 200-300kg | 300-400kg | 500-600kg |
Application of PVC granulating plastic machine:
This pp pe film granulator machinery is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor,pelleting with an extruding machine at the same
discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance,
and favorable economic benefit.
Machine advantages:
The granulating crusher uses adjustable speed motor,pelleting with an extruding machine at the same
discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance,
and favorable economic benefit.
