Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Voltage: | 380V 50HZ |
| Warranty Time: | 1 Year | Motor Brand: | Siemens |
| Application: | Plastic Extrusion | Inverter Brand: | ABB |
| Screw Design: | Single Screw | Screw And Barrel Material: | 38Cr MOAIA |
| High Light: | PE Pipe Single Screw Extruder,Fully Automatic Single Screw Extruder,85kg/H Single Screw Extruder |
||

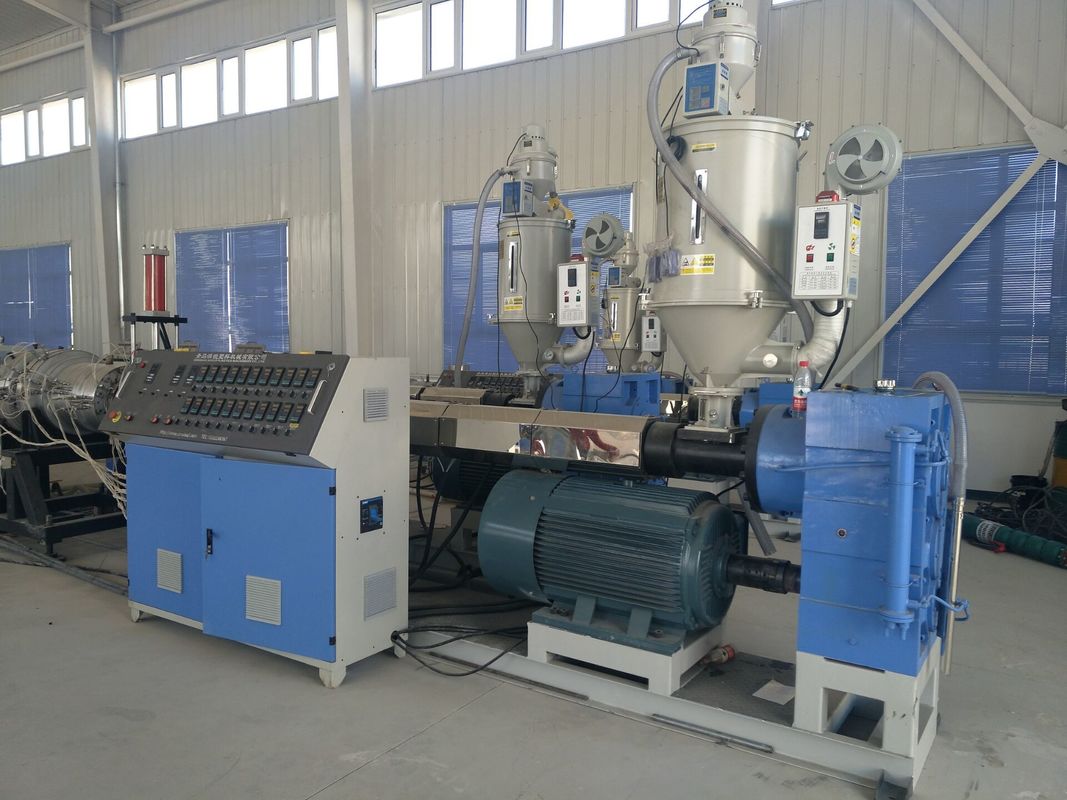

High Efficient PP PE Single Screw Extruder, Plastic Single Screw Extruder For Pipe Profile
Brief introduction:
1.It can process all kind of plastic products with auxiliary machines concerned, such as film, pipe, stick, plate, thread, ribbon, insulating layer of cable, hollow products and so on. It is also used in graining.
2.The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.
Characteristics of the equipment:
SJ Series high efficient single screw extruder is developed by our company adopting German latest advanced technology.Screw optimizes composing separate type screw and mixing parts.Barrel optimizes composing groove barrel and lengthened feeding segment. There is advantage as following by using separate type screw and groove barrel together:
1.It's optimized during material melting process. Thus get more extrusion throughput.
2.it realized extruding melt material in low temperature.
3.Cutting function is caused through separate clearance and it makes material equal well.
4.It's controlled during melt plasticization process. Therefore only granules that smaller than separate clearance can enter melt channet.
5.Wide manufacture range for different materials. It's suitable for all kind of polyolefin material and especially for material for HDPE, PP and ABS pipe.
Main Technical Parameter:
| Model | Diameter of screw(mm) | L/D ration | Main motor(KW) | Output(kg/h) |
| SJ45*25 | 45 | 25:1 | 7.5 | 5-38 |
| SJ45*33 | 45 | 33:1 | 30 | 100-130 |
| SJ65*25 | 65 | 25:1 | 22 | 20-85 |
| SJ65*30 | 65 | 30:1 | 30 | 30-110 |
| SJ65*33 | 65 | 33:1 | 75 | 150-200 |
| SJ75*30 | 75 | 30:1 | 90 | 200-300 |
| SJ90*25 | 90 | 25:1 | 55 | 50-100 |
| SJ90*33 | 90 | 33:1 | 185 | 350-500 |
| SJ120*25 | 120 | 25:1 | 75 | 50-250 |
| SJ120*33 | 120 | 33:1 | 280 | 600-850 |
| SJ150*25 | 150 | 25:1 | 100 | 370 |
| SJ150*33 | 150 | 33:1 | 315 | 800-1000 |
| SJ150*34 | 150 | 34:1 | 355 | 900-1200 |
| SJ200*25 | 200 | 25:1 | 132 | 180-430 |
