380V 90kw Single Screw Plastic Extruder 150r/Min ISO9001

380V 90kw Single Screw Plastic Extruder 150r/Min ISO9001
380V 90kw Single Screw Plastic Extruder 150r/Min ISO9001

Large Image :  380V 90kw Single Screw Plastic Extruder 150r/Min ISO9001

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ65 SJ75 SJ90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

380V 90kw Single Screw Plastic Extruder 150r/Min ISO9001

Description
Motor Power: 22-90kw Screw Type: Single Screw
Brand Name: Aorui Condition: New
Automatic Grade: Fully Auotmatic Place Of Original: China
Voltage: 380V 50HZ Model Number: SJ65
After Sales Service: Engineer Availiable To Service Warranty Time: 1 Year
High Light:

90kw Single Screw Plastic Extruder

,

380V Single Screw Plastic Extruder

,

150r/Min Single Screw Plastic Extruder

Plastic Single Screw Extruder For Pipe With 38 Cr Moaia Material Barrel and Screw
Brief introduction:
1.Single screw extruder is composed of Screw, Barrel, Transmission system, die head connector , electric control box,etc.
2.This single screw extruder can use for producing pipe, profile, board and other plastic product.


Characteristics of the plastic single screw extruder:
1.Screw: the screw is a critical part of plastic transimission and plasticization, because of it's rotation, then push the plastic forward,so as to press, melt and mixing the plastic.The screw thread is composed of different function section,so as to good transimission, press, mixing, the plasticization is good, the capacity is high. Screw material adopt nitrided steel(38Cr MOAIA),the screw is made of fine nitriding and grinding, it has hhigh corrision resistance and wear resistance,and has long service life.
2.Barrel:It's a part that paired with the screw, the barrel is made of nitriding steel, inner hole is nireided treatment, in order to achieve higher hardness and good wear resistance.There are 5 units heater in it's outside, the heat transmission through barrel to plastic, to make plastic melt,Each part of the heater cyclinder is provided with five temperature measuring points, it can automatically control in the plastic process temperature range.The five heat zone has air cooling system, it can accelerate barrel cooling and improve the accuracy of temperature control.
3.Die head: It is the part that connect the die head and barrel, inside has heat coil, in case of melt plastic become cool.
4.Transimission system: Transimission system makes the screw rotate uniformly with the necessary torque under the selected process conditions,in order to carry out the screw plasticizing and conveying of plastic.In order to adopt different production requirement of different material, the screw should has different rotation speed. Our single screw extruder adopts frequency converter, through coupling direct drive gear box, and adopt governor to achieve speed regulation, to make the screw rotation smooth stepless in the speed control range.


Main Technical Parameter:



ModelL/DOutput(kg/h)Speed(r/min)Drive power(kw)
SJ-2525/1520-1202.2
SJ-3025/11020-1805.5
SJ-4525-33/150-15020-1507.5-22
SJ-6525-33/160-25020-15022-90
SJ-7525-33/1200-35020-15055-110
SJ-9025-33/1180-55020-11037-185
SJ-12025-33/1320-80020-9075-280
SJ-15025-33/1400-120020-7590-355

Application of plastic extruder:
single screw extruder is mainly used to process PE,PP, PPR, PET,ABS,HDPE,LDPE,LLDPE and other plastics. Equipped with auxiliary machies, it can manufacture pipes, profiles ,sheets ,film, granulates and other plastic products.

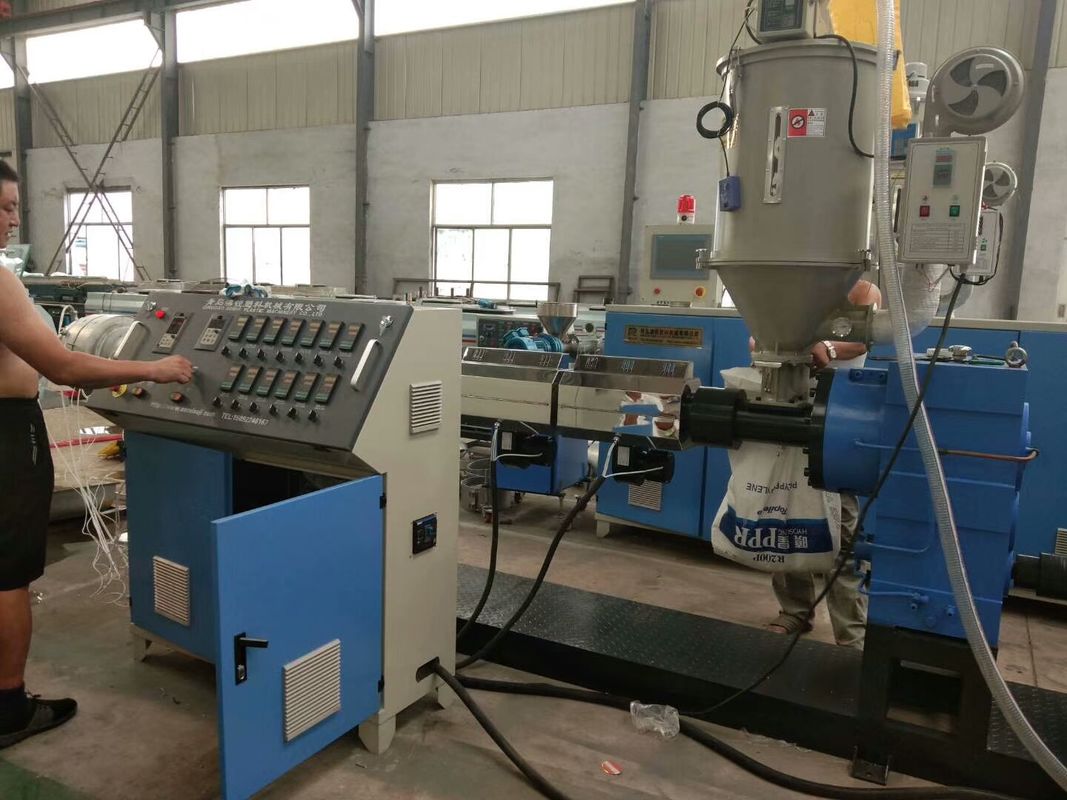

Machine display:
380V 90kw Single Screw Plastic Extruder 150r/Min ISO9001 0


380V 90kw Single Screw Plastic Extruder 150r/Min ISO9001 1
