Product Details:
|
| Brand Name: | Aorui | Application: | Board / Sheet |
|---|---|---|---|
| Condition: | New | Plastic Processed: | PP PE PVC WPC |
| Screw Design: | Single Screw | Screw Diameter: | 90 |
| Place Of Original: | China | Certificate: | CE Certificate |
| Voltage: | 380V 50HZ | After-sales Service: | Engineer Availiable To Service |
| High Light: | 90mm Screw PVC Foam Board Machine,WPC PVC Foam Board Machine,Sound Insulation PVC Foam Board Machine |
||

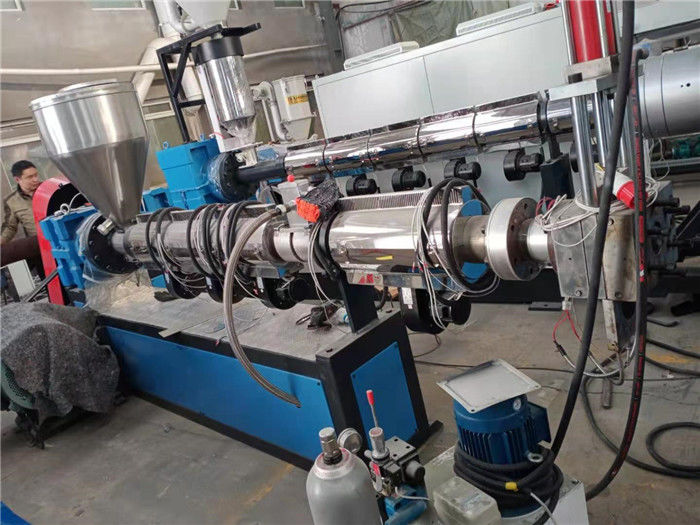

PVC Board Production Line With Single Screw Extruder, PVC Foam Board Machine
Quick detail:
1.The features of pvc plastic board, composite material, pvc plastic board doesn't including formaldehyde, smmoth, beautiful, paint free, non-toxic, moisture resistance, flame retardant, sound insulation, it is a new style decorative material.
2.PVC foam board plastic board application, transportation industrial, drchitecture, decoration, advertising, package etc.
Description of PVC Board Machine:
1.The thickness ranges from 0.8mm to 50mm. With smooth surface, the boards can be used for professional printing.So it is commonly used in advertisement industries.Processed by weather-resistance formula, it is not easy to age, it can keep its color for long.
2. The barrel is heated by aluminum casting hot wire ring and cooled by air cooling system, and the heat transfer is fast anduniform.
3. Different screws can be selected according to different formulas in order to achieve the best plasticizing effect.
4. The gear box & distribution box both adopt ZWZ bearing, imported oil seal; gear wheel adopts high-quality alloy steel undernitrogen process.
5. Special design of reducer and distribution box, reinforced thrust bearing, high transmission torque and long service life.
6. The vacuum calibration table adopts a special enlarged swirl cooling system, which is convenient for cooling setting, and the special. horizontal tilt control has a unique three-position adjustment control, which makes the operation simple and better reflected.
7. The haul-off machine adopts unique lifting technology, upper and lower crawler is controlled by back pressure, work stably,large reliability & traction force, can automatically fixed the length cutting, and is equipped with the dust recovery device.
Applications:
It has mirror-like surface, and its strength, hardness, impact resistance and anti-UV characteristics are much improved by adding extra elements such as impact resistance agent, anti- wearable agent, anti-UV agent, etc. It could also be used as basic flooring material, as it has great hardness, strength and waterproof characteristics, no matter for indoor or outdoor uses, no matter for garden or sport field, it is a new and good choice to use Construction Template.
Specifications:
|
Model |
SJSZ80/156,SJSZ92/188 |
|
usage |
Decorative, |
|
raw material |
recycled PVC,additive material,etc |
|
product size |
width:1220mm,thickness:5-30mm,length:2440mm |
|
Extruder feature |
Special designed extruder |
|
wood powder ( wood fiber) |
high volume of addition up to 50~75 percent |
|
Plastic proceed |
PVC |
|
Auxiliary machine |
Laminating machine,transferring machine, |
|
Product type |
Building Template,furniture board,kitchen board,bathroom board, |
Competitive Advantage:
Easy to operate
Long service life
High output
