Product Details:
|
Brand Name: | Aorui | Model Number: | SJ75/33 |
---|---|---|---|
Condition: | New | Plastic Processed: | PE |
Place Of Original: | China | Certificate: | CE Certificate |
Voltage: | 380V 50HZ | After-sales Service: | Engineer Availiable To Service |
Automatic Grade: | Fully Automatic | Warranty Time: | 1 Year |
High Light: | HDPE PPR Plastic Pipe Extrusion Line,Dia 40mm Plastic Pipe Extrusion Line,40kg/H Plastic Pipe Extrusion Line |
PE Plastic Pipe Extrusion Line , PE PPR Plastic Gas Pipe Production Line With High Mixing Speed
Brief introduction:
This machine developed by Aorui company is featured of unique structure, high degree of automatic, easy operation and stable reliable
continuous manufacture performance. It consists of the following six parts:

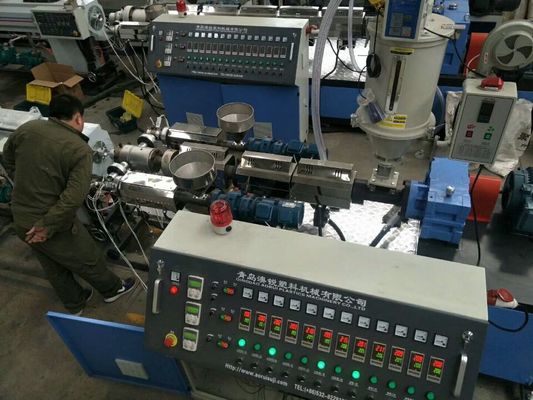

1)Single screw extruder (with automatic feeding system)
2)Die head (Mold)
3)Calibrating and cooling tank
4)Haul-off machine
5)Cutting machine

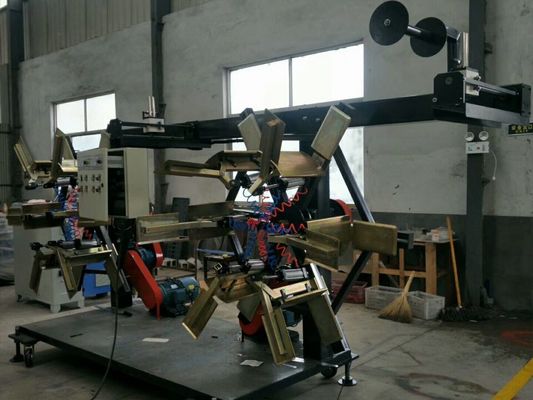

6)Stacker
Description of pe pipe production line:
Sizing sleeve with the entrance water curtain is applicable to the HDPE, LDPE and PP etc..
On the front end of butterfly type sizing sleeve carrying entrance water curtain there is a closed inside room, which is applicable to the small tube extrusion specially.
Mould:
1. Standard series: 10mm - 1600mm spiral allotment type or skep types flow divide body.
2. The best design of the low melting temperature causing small tube internal stress and smooth inside and outward appearance.
3. High flexibility is applicable to all polyolefin material multi-layer co-extrusion form.

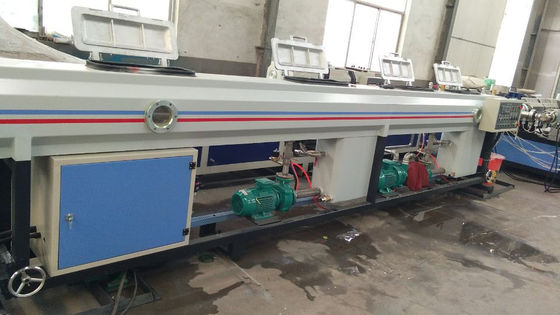

The vacuum sizing water tank:
1. The water pump of high power and spraying head of special design bring high efficient spraying cooling.
2. On the section of sizing sleeve establish dense and intensive spraying heads.
3. The percolation unit with the bypass pipeline improved the stability of the equipments and reduce maintenance (pipe-ine and spray head is blocked due to impurity).
4. Have the high and low water level control levels.
5. Three-dimensional adjusting.
Tractor machine:
1. Changing frequency speed adjusting system guarantee synchronous hauling off.
2. By proportion valve and gas pressure control to regulate precisely contact pressure.
3. By the central motor drives all bedrails to attain highly synchronous result.
4. The automatic tube wall thickness increases and the length measuring device may be chosen.
Main technical parameter
Parameter | Technical Parameter | |||
Model | SJ-45 | SJ-65 | SJ-90 | |
Max. extruding capacity | 40kg/h | 60kg/h | 100kg/h | |
Main driving power | 15kw | 22kw | 37kw | |
Filter changing method | Durable filter | Durable filter | Durable filter | |
Heating power | 15kw | 22kw | 37kw | |
Sizing way | Vacuum sizing | Vacuum sizing | Vacuum sizing | |
Pipe specification | Diameter:16-40mm | Diameter:20-75mm | Diameter:63-160mm | |
Cooling way | Spray+immersion | Spray+immersion | Spray+immersion | |
Tracting type | Roller type tractor | Roller type tractor | Roller/caterpillar band type(for hard pipe) | |
Tractor driving power | 1.5kw | 2.2kw | 4kw | |
Winding motor | 6N*m | 6N*m | 12N*m | |
Installation power | 40kw | 50kw | 85kw | |
Overall dimension | Soft pipe | 12m*1.6m*2.6m | 12.2m*1.6m*2.7m | 15.8m*2.3m*2.8m |
Hard pipe | 15m*3m*2.6m | 16.5m*3m*2.7m | 21m*2.3m*2.8m |
Competitive advatnages:
This pipes produced by our line have excellent stiffness and flexibility ,resistance to creep deformation ,excellent heat-linkage .Large dismeter HDPE pipes start to play very important role in the city water and gas supply systems.
