Product Details:
|
| Automatic Grade: | Fully Automatic | Plastic Processed: | PP PE |
|---|---|---|---|
| Screw Material: | 38Cr Moaia | Warranty Time: | 1 Year |
| Motor Brand: | Siemens | Contactor Brand: | Schnelder |
| Voltage: | 380V 50HZ | Machine Name: | Plastic Pipe Machine |
| Certificate: | CE Certificate | Condition: | New |
| High Light: | PPR Conduit Plastic Pipe Extrusion Line,1000kg/H Plastic Pipe Extrusion Line,16mm Plastic Pipe Extrusion Line |
||
PP PE PPR Conduit Pipe Gas Pipe Sewage Pressure Pipe Extrusion Line With Single Screw Extruder
Basic information of pe pipe machine:
PE PPR PPRT pipe extrusion line consists of conical Single-screw extruder, Extrusion die mould, Vacuum forming calibrator, Spraying machine, Haul-off machine, Cutting machine, Stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce water supply and drainage pipe, widely used to hot water supply,gas transportation,and so on. Full automatic control by SIMENS PLC computer.
Description of pe pipe production line:
1.Single screw extruder, very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h
The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
Diameter range is 20mm-800mm, which can be changed into inch standard to meet clients' special requirement.
2.This PE Pipe Production Line is mainly used for producing PE pipes, diameter range: 16-630mm, etc
3.Process flow of PE water and gas pipe production line:
Raw material + additive mixing vacuum feeding machine hopper dryer single screw extruder color code extruder mould and calibrator vacuum forming machine cooling tank haul-off machine cutting machine discharging rack
Main parameters of LDPE pipe extrusion line
|
Model
|
Screw Diameter(mm)
|
L/D
|
Motor Power(kw)
|
Center Height(mm)
|
Output HDPE/PE(kgs/h)
|
|
ZJS45/33
|
45
|
33:1
|
37
|
1000
|
150
|
|
ZJS60/33
|
60
|
33:1
|
75
|
1000
|
300
|
|
ZJS75/33
|
75
|
33:1
|
110
|
1100
|
450
|
|
ZJS90/33
|
90
|
33:1
|
160
|
1100
|
600
|
|
ZJS120/33
|
120
|
33:1
|
280
|
1100/1300
|
950
|
|
ZJS150/33
|
150
|
33:1
|
400
|
1300
|
1350
|
Application:
PE Pipe is non-toxic, clean, corrsion-resistance, not-leaking, small flow, high toughness, long service life, usually use gas supply pipe, conduit pipe etc.

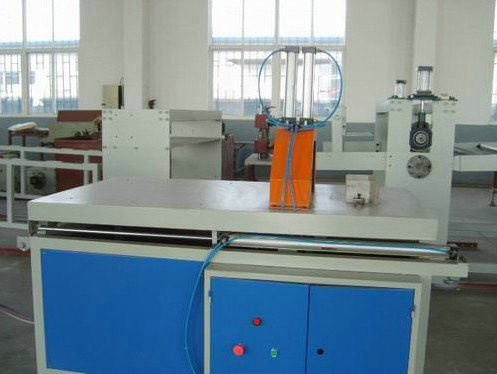

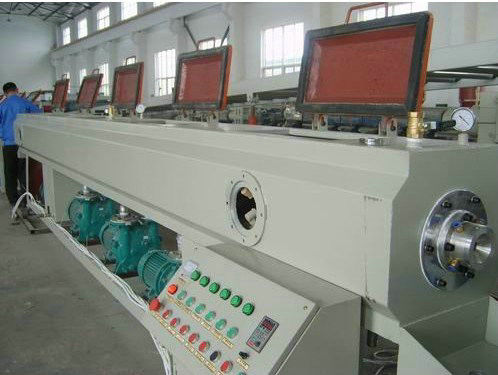

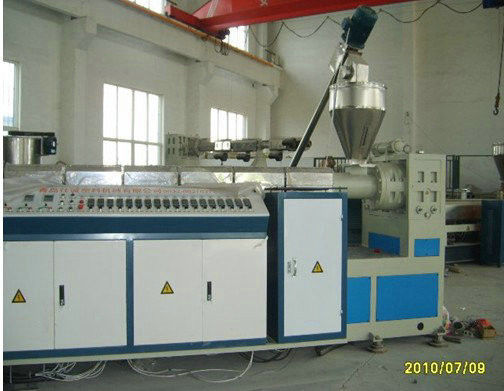

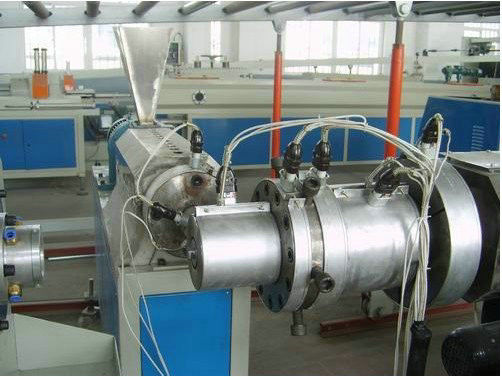

Machine display:
