PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H

PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H
PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H

Large Image :  PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ75/33 SJ90/33 SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H

Description
Plastic Processed: PE Application: Plastic Pipe
Condition: New Screw Design: Single Screw
Place Of Original: China Voltage: 380V 50HZ
Warranty Time: 1 Year Automatic Grade: Fully Automatic
Certificate: CE Certificate
High Light:

PPR PS Plastic Pipe Extrusion Line

,

400kg/h Plastic Pipe Extrusion Machine

,

110KW Plastic Pipe Extrusion Machine

PE Water Pipe Making Machine, Electric Pipe Machine Specification Introduction



Quick Detail of pe pipe manufacturing plant :

1. Polyethylene (PE) is a thermoplastic material produced from the polymerization of ethylene. PE plastic pipe is manufactured by extrusion in sizes ranging from ½" to 63".

2. The difference between PE and HDPE pipe is

High-density polyethylene, known as HDPE plastic is a denser version of polyethylene typically used to make water and drain pipes because of its rigidness and crystalline structure. ... The main difference between HDPE and polyethylene or PE is that HDPE has PE as its base.



Description of pe hdpe pipe machine:

1. Our organization employs advanced technology to fabricate the extruder machines. Premium variety of raw materials and superior manufacturing procedure make our range stand out in performance and quality features. To suit the specific requirements of clients we work out modifications and alterations in the standard range which our manufacturing unit has the provisions to carry out.

2. PE pipe extrusion machine is mainly suitable for making PP,PE pipes,with various diameters and thickness, which
are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc.

3. The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device, both vacuum pup and driving motor apply famous brand.

4. The haul-off unit includes two-claw type, three-claw type, four-claw type, six claw type, eight-claw type, ten-claw type, twelve-claw type etc. Dust free cutting machine, saw blade cutting machine or planetary cutting machine can be applied, the property of machine group is reliable.

5. The production efficiency is high with special device, It can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe. It can also produce PP, PE, ABS, PPR, PEX, Silicon core pipe etc.

6.The planetary cutting machine is controlled automatically with computer, it has such asvantages of simple operation, reliable performance etc. It has reached international advanced level.



Main parameters of LDPE pipe extrusion line

Model
Diameter of pipe
Output
Power of main motor
SJ55
16-63 mm
200 kg/h
55KW
SJ65
75-160 mm
400 kg/h
110KW
SJ75
180-280 mm
500 kg/h
132KW
SJ90
315-630 mm
900 kg/h
250KW
SJ120
710-1200 mm
1400 kg/h



355KW
SJ150
1200-2000 mm
2200 kg/h
630KW



Our pe pipe extruder competitive advantages:

Low electric consumption

Low cost

It can produce different diameter platic pipe

Equipped with different auxiliary machine, it also can produce profile, sheet.



FAQ:

Q:Where is HDPE pipe used?

A:High density polyethylene (HDPE) piping systems have been used for municipal and industrial water applications for over 50 years. Within PPI's Building & Construction Division, HDPE pipes are used for ground source geothermal applications, also known as earth energy or geoexchange systems.



Q:What kind of pipe is HDPE?

A:HDPE pipe is a type of flexible plastic pipe used for fluid and gas transfer and is often used to replace ageing concrete or steel mains pipelines. Made from the thermoplastic HDPE (high-density polyethylene), its high level of impermeability and strong molecular bond make it suitable for high pressure pipelines.



Q:How thick is HDPE pipe?

A:PE100 can be manufactured in a wide range of pipe diameters from 16mm to 2000mm. Even larger diameters are possible with the development of appropriate extrusion dies. However the common range of pipe sizes is from 32mm to 1200mm.

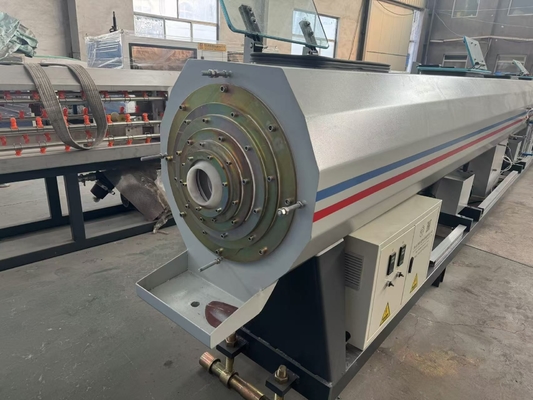

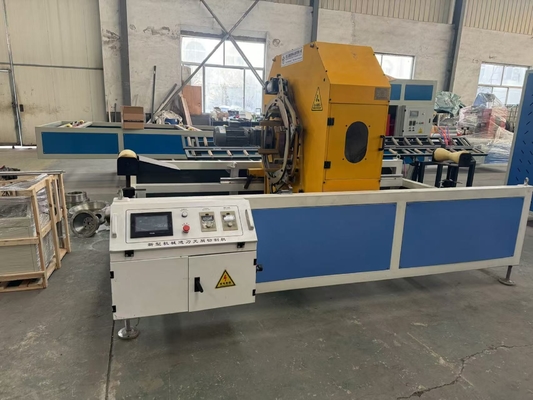

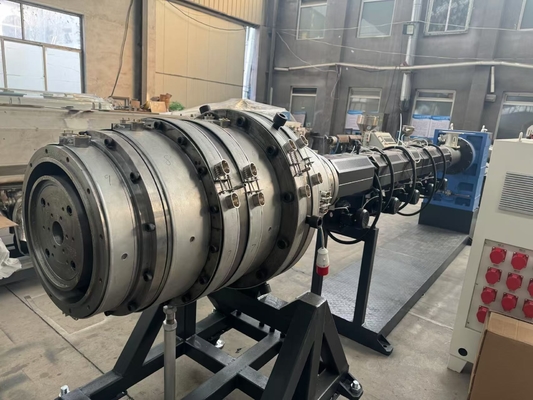

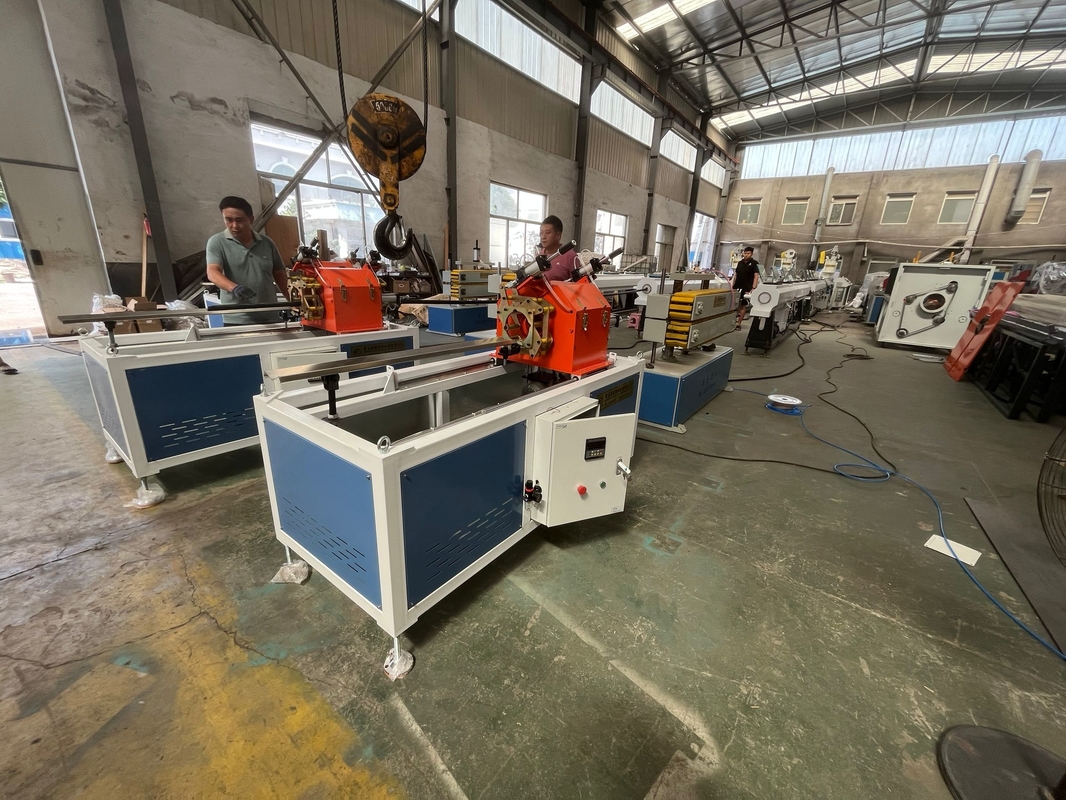

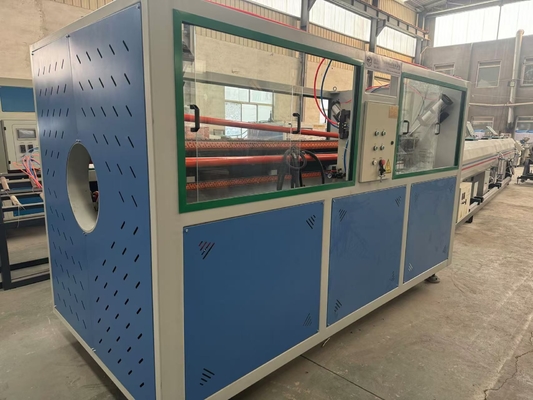

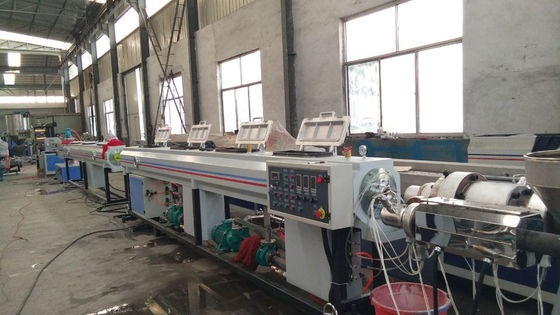

Machine display:

PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H 0PPR PS Plastic Pipe Extrusion Line Plastic Pipe Extrusion Machine 400kg/H 1
