Product Details:
|
| Brand Name: | Aorui | Temperature Controller: | Omron |
|---|---|---|---|
| Screw Design: | Single Screw | Place Of Original: | China |
| Warranty Time: | 1 Year | Inverter: | ABB Brand |
| Motor Brand: | Siemens | Voltage: | 380V 50HZ |
| Screw Material: | 38Cr Moaia | Screw L/D Ratio: | 33:1 |
| High Light: | MPP Plastic Pipe Extrusion Line,500KG/H Plastic Pipe Extrusion Line,Gas Supplying Plastic Pipe Extrusion Line |
||
PP PE Plastic Pipe Extrusion Line , Agricultural Water Supply and Drainage PE Pipe Machinery
Brief introduction of pe pipr machine :
This production line developed by us is featured of unique structure, high degree of automatic, easy operation and stable reliable continuous manufacture performance.
Description of pe pipe production line:
Main parameters of LDPE pipe extrusion line:
Main parameter
| MODEL NO. | KCTE63 | KETC110 | KCTE250 | KCTE315 | KCTE450 | KCTE630 | KCTE1200 |
| PIPE RANGE(MM) | 16-63 | 20-110 | 75-250 | 110-315 | 110-450 | 315-630 | 630-1200 |
| EXTRUDER CAPACITY(KG/H) | 150 | 200 | 300 | 400 | 500 | 800 | 1300 |
| SCREW DIAMETER(MM) | 65 | 65 | 90 | 90 | 120 | 150 | 200 |
| SCREW L/D RATIO | 30:1 | 30:1 | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 |
| DRIVING MOTOR | 30KW | 37KW | 90KW | 110KW | 185KW | 255KW | 355KW |
| HEATING CAPACITY | 18.5KW | 20KW | 40KW | 49KW | 60KW | 60KW | 84KW |
| TEMPERATURE CONTROL(POINTS) | 4 | 5 | 5 | 7 | 7 | 8 | 7 |
| HAUL OFF UNIT | CATERPILLAR 2 TRACKS | 2TRACKS | 4TRACKS | 4TRACIS | 6TRACKS | 6TRACKS | 8 TRACKS |
| INSTALL POWER(KW) | 70 | 85 | 180 | 200 | 280 | 360 | 550 |
| MACHINE SIZE(M) | 28X2.6X3 | 28X3X3.2 | 3.6X35X3.2 | 40X3.5X3.2 | 42X3.5X3.2 | 45X3.5X3.5 | 60X4X3.5 |
| WEIGHT(T) | 7 | 7 | 9 | 11 | 13 | 15 | 22 |
Application:
16-630mm PE Pipe Extrusion machine is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc.

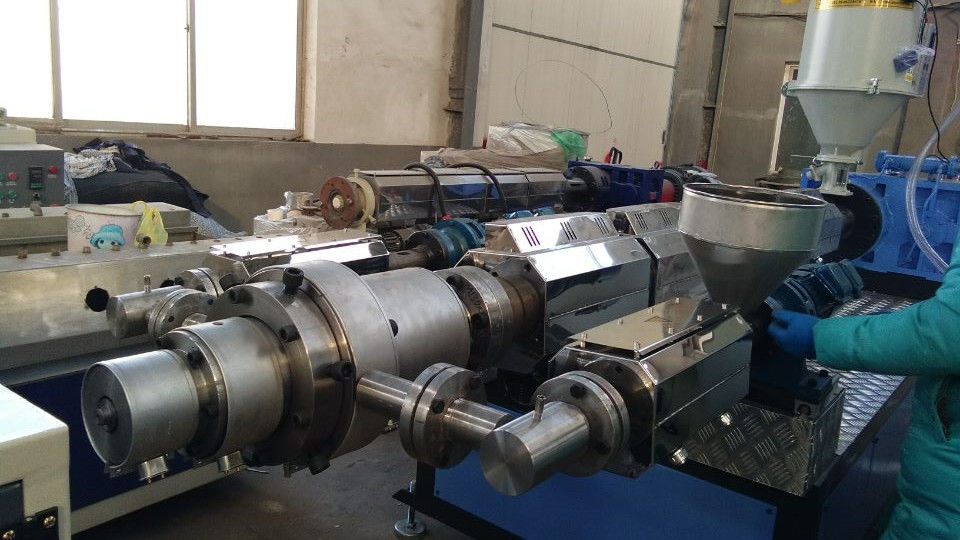

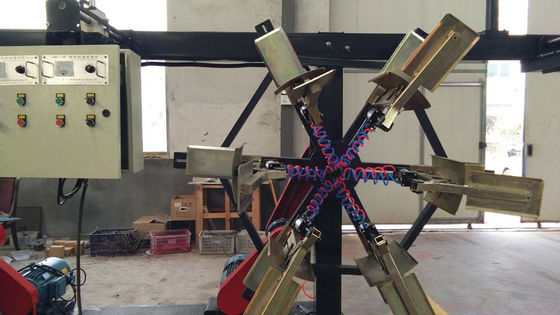

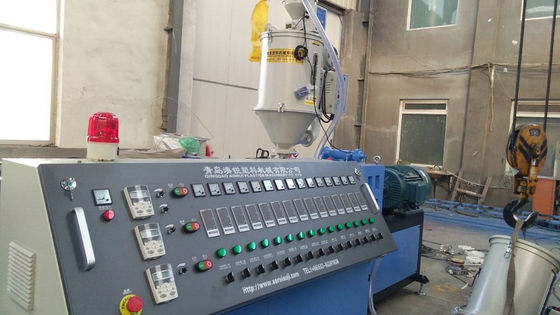

Machine Display:
