Product Details:
|
| Place Of Origin: | Shandong, China (Mainland) | Brand Name: | Aorui |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Sceew Design: | Double Screw |
| Screw Diameter: | 80X156 | Certificate: | CE Certificate |
| Voltage: | 380V/3P/50HZ | Screw Material: | 38Cr Moaia |
| Plastic Processed: | PVC Resin | Motor Brand: | Siemens |
| High Light: | Skinning Pvc Foam Board Extrusion Line,Foam Board Extrusion Line 350kg/H,146kw Foam Board Extrusion Line |
||
PVC Skinning Foam Board Cabinet Board Extrusion Machine , PVC Foam Board Production Line
Quick detail of pvc foam board machine:
1. PVC Foam Board composed of Twin screw extruder, board extrusion mould, vacuum sizing mould, and other auxiliary machine. It has large output, extrusion stable, low maintenance cost, the product has the characteristics of high foaming rate, smooth surface and wear resistance.
2. Through printing, film, and hot pressing equipment, can produce all kinds of imitation wood products, it has wide range of uses.
Description of plastic board machine:
1. PVC foam board is a less dense form of traditional PVC, or polyvinyl chloride. It retains many of the same qualities as traditional PVC such as an outstanding strength-to-weight ratio, great flame-resistance, and excellent chemical resistance. However, because of its lower density, PVC foam board is significantly lighter; making it perfect for a wide variety of applications.
2. PVC foramed plate is a late-model plate of surface crusting with its core layer under foaming treatment which ensures the smooth surface, light weight and strong indensity, and it can be processed like wood plate. PVC foamed plates are widely used in fields of advertise lettering, construction, decoration, windows and doors of furniture, etc.
3. Wood-plastic mould ,resembling wood in appearance,is more fixed in size than wood without cracks,curls,protu berances,and cross grains,it has the features of better physical and chemical property,to ensure higher density and longer service life.
4. Wood-plastic mould can be reproduced like wood.It can be cut,planed,madea bond by glue or fastened with nalis or screws.It's easy to maintain.
5. Preserved from acid,alkali,corrosion,impervious to attacks by insects and rats,wood-plastic mould plates provide less moisture absorption.
6. The product can be recycled and degraded for environmental protection.
Technical parameters:
| PVC/WPC Foam Plate/ Board/Sheet Production Line | |||
|
Model
|
GYF1220-A
|
GYF1220-B
|
GYF1500-C
|
|
Extruer
|
GSZ80/156
|
GSZ80/173
|
GSZ92/188
|
|
Max.output(kg/h)
|
350
|
600
|
650
|
|
Die width(mm)
|
1320
|
1320
|
1550
|
|
Production width(mm)
|
1220
|
1220
|
1400
|
|
Power(kw)
|
146
|
170
|
205
|
Competitive Advantage:
1. This pvc foam board production line has compact structure, high performance.
2. The transmission device, screw barrel, foam mold are from doemstic famous brand manufactures.
3. The machine stable performance, good plasticizing, high output. Replace the mold and adjust the formula to achieve a multi-purpose machine

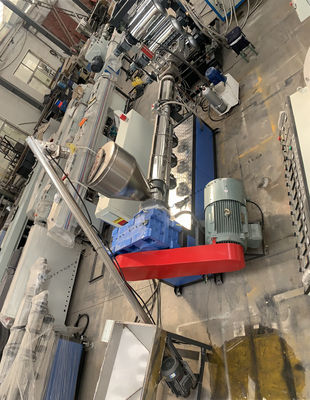

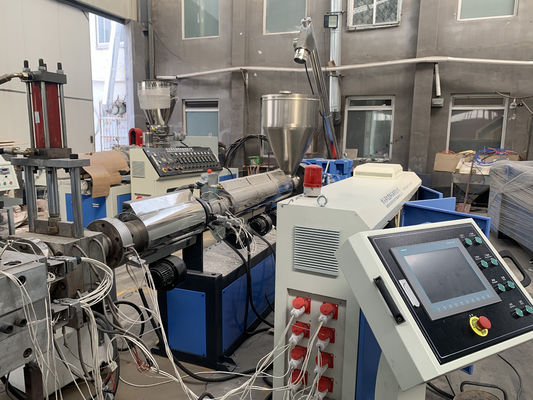

Machine display:
