380V PVC Foam Board Machine 600kg/H For Construction Formwork

380V PVC Foam Board Machine 600kg/H For Construction Formwork
380V PVC Foam Board Machine 600kg/H For Construction Formwork

Large Image :  380V PVC Foam Board Machine 600kg/H For Construction Formwork

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ80x156
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

380V PVC Foam Board Machine 600kg/H For Construction Formwork

Description
Application: Foam Board Plastic Processed: Pvc Wpc Wood Plastic
Screw Material: 38Cr Moaia Brand Name: Aorui
Voltage: 380V 50HZ Warranty Time: 1 Year
After-sales Service: Online Video Technical Support Motor Brand: Siemens
Board Thickness: 3-30mm Temperature Controller: Omron
High Light:

380V PVC Foam Board Machine

,

PVC Foam Board Machine 600kg/H

,

Construction Formwork Foam Board Machine

PVC Foam Board Extruder , PVC Foam Board Sheet Production Line Extrusion Machine​



Quick detail:

1. MAIN PARAMETERS OF PVC FOAM BOARD:
Width: 1220mm
Length: 2440mm
Thickness: 3-40mm
Density: 0.38-0.8g/cm3
Output: 350-400kg/h or 550-600kg/h or 700kg/h, it depends on the choice of extruder.

2. Flow chart:
Mixer→Loader→Extruder→Mould→Calibration platform→Cooling bracket→Hauling machine→Cutting machine(With dust collector)→Stacker

→Packing→Crusher(for waste material) →Pulverizer(For recycled material)





Description:

1. This WPC board making machine uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall

2. Main Features of PVC/WPC Foam Plate/ Board/Sheet Production Line
1. Wood-plastic mould ,resembling wood in appearance,is more fixed in size than wood without cracks,curls,protu berances,and cross grains,it has the features of better physical and chemical property,to ensure higher density and longer service life.
2. Wood-plastic mould can be reproduced like wood.It can be cut,planed,madea bond by glue or fastened with nalis or screws.It's easy to maintain.
3. Preserved from acid,alkali,corrosion,impervious to attacks by insects and rats,wood-plastic mould plates provide less moisture absorption.
4. The product can be recycled and degraded for environmental protection



Technical parameters:



PVC/WPC Foam Plate/ Board/Sheet Production Line
Model SXJZ1220-A SXJZ1220-B SXJZ1500-C
Extruer SJSZ80/156 SJSZ80/173 SJSZ92/188
Max.output(kg/h) 350 600 650
Die width(mm) 1320 1320 1550
Production width(mm) 1220 1220 1400
Power(kw) 146 170 205

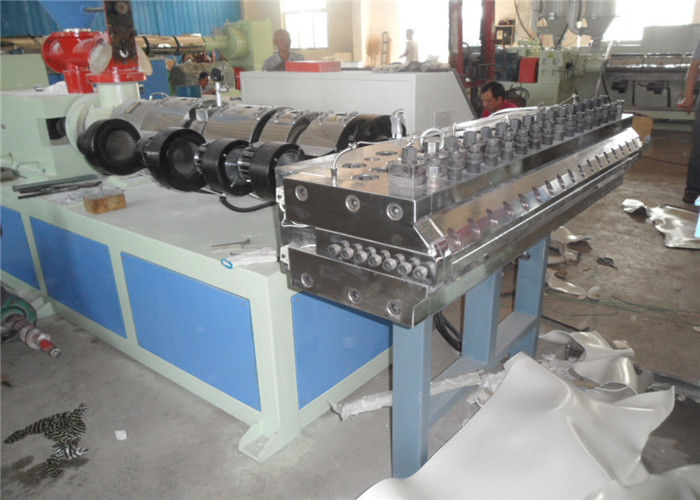

Machine display:

380V PVC Foam Board Machine 600kg/H For Construction Formwork 0380V PVC Foam Board Machine 600kg/H For Construction Formwork 1
